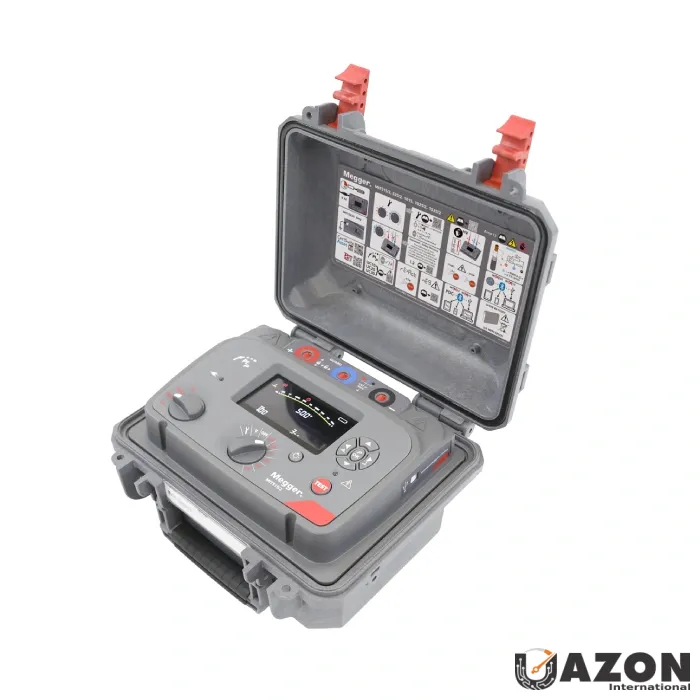

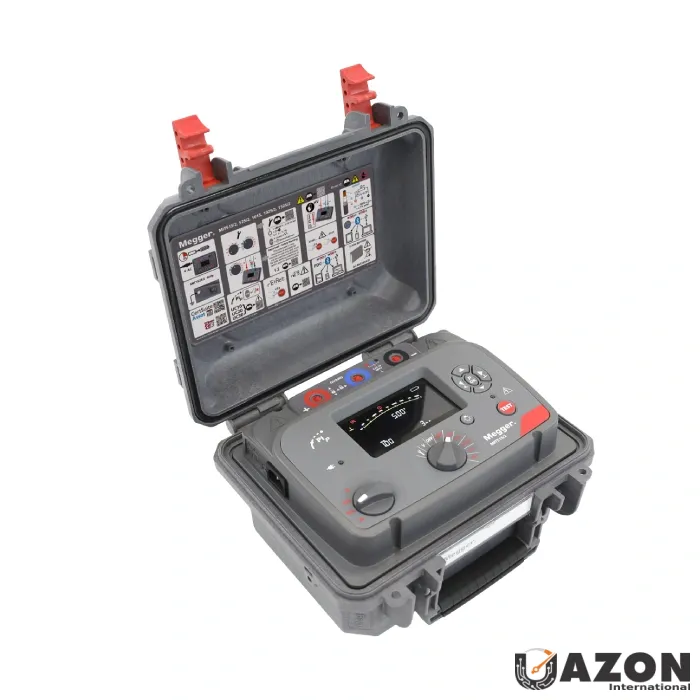

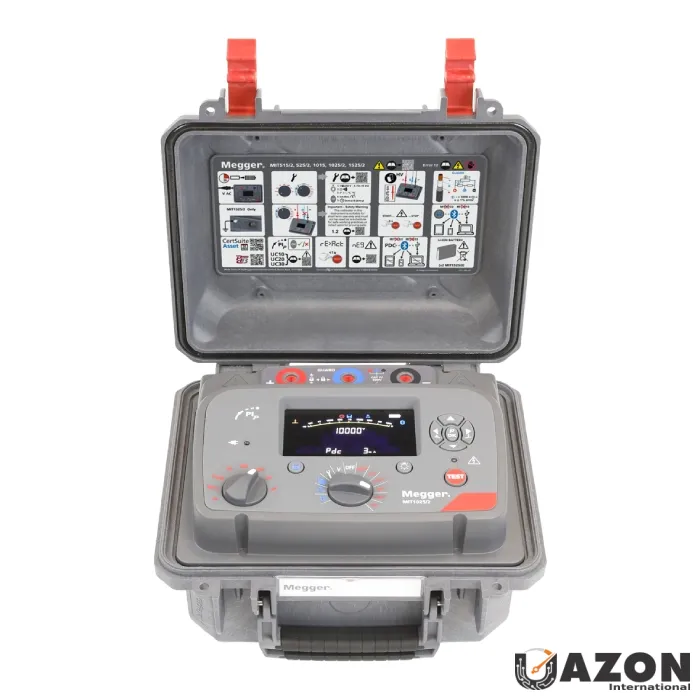

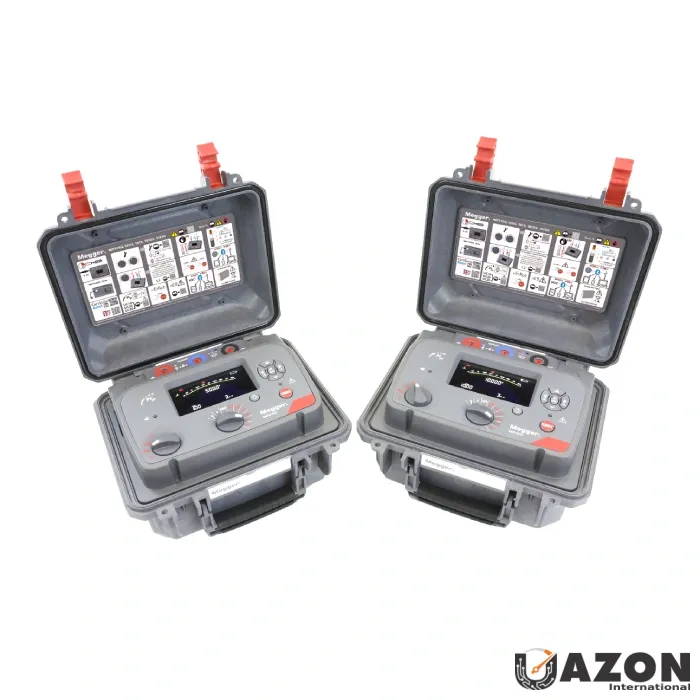

Why Precision Maintenance Teams Buy the Megger MIT525/2 Insulation Tester
High-voltage assets rarely fail without warning; they whisper first through declining insulation resistance. The Megger MIT525/2 5 kV insulation resistance tester translates those whispers into data you can act on, combining laboratory-grade accuracy with job-site survivability. If your mandate is to prevent unplanned outages in rotating machinery, switchgear, or HV cable runs, this instrument turns every maintenance window into a diagnostic opportunity.
Technical Features and Field Applications of the Megger MIT525/2
Every specification on the MIT525/2 datasheet exists to answer a real-world question: Is the insulation still fit for service, or has thermal cycling, moisture ingress, or surface contamination started an irreversible decline? Below are the capabilities maintenance engineers cite most often when justifying the purchase.
- Full diagnostic test suite—IR, DAR, PI, SV, DD, ramp, and PDC modes—maps the insulation “fingerprint” so you can trend degradation long before breakdown voltage is reached.
- Industry-best noise rejection of 2 mA rmi at 5 kV keeps readings stable on variable-frequency drives, crowded switchyards, and inverter-fed motors where lesser megohmmeters drift or fail to lock.
- Onboard memory for 1000 records, each stamped with time, date, temperature, test parameters, and operator ID, eliminating the clipboards and photo evidence once needed to defend HV test reports.
- USB and BLE streaming allow live data hand-off to PowerDB or Megger’s mobile app; generate pass/fail reports before you leave the asset, minimizing second trips and scaffolding costs.
- Rapid-charge Li-ion pack delivers a full 6 hours of continuous 5 kV testing—enough to satisfy NETA ATS table 100.7 on a dozen rotating machines—and recharges to 80 % in two hours using the same industrial charger crews already carry for their cordless tools.
- CAT IV 600 V safety rating, dual-wall case, and IP65 sealing when closed protect both technician and instrument on outdoor substations or offshore decks where weather changes in minutes, not hours.
Megger MIT525 Price Positioning and ROI Justification
Businesses that track down-time cost by the minute often discover that a single prevented motor failure pays for the Megger MIT525/2 price. Unlike basic 1 kV megohmmeters that can miss deep insulation defects, the 5 kV drive voltage accelerates weak-point revelation, allowing you to schedule—rather than scramble—rewinds, cable splicing, or breaker replacement. When you buy Megger MIT525/2 through authorized distributors you also receive three-year warranty coverage, reducing total cost of ownership and safeguarding your capital budget.
Standard Box Contents and Recommended Accessories
The shipped package covers most acceptance and maintenance tests right out of the carton. Adding a purpose-built lead set and remote probe, however, can cut set-up time by half on enclosed switchgear or tall wind-turbine towers.
- Megger MIT525/2 5 kV diagnostic insulation tester with built-in rechargeable battery and AC adapter.
- 3 m 5 kV shielded test leads (red, blue, guard) and 1 m guard lead to suppress surface leakage on contaminated apparatus.
- USB cable and PowerDB Lite reporting software—sufficient for trending PI/DAR values for small fleets.
- Quick-start guide, laminated field reference card, and traceable calibration certificate valid for 12 months.
- Optional: 15 m shielded lead set, insulated crocodile clips, 5 kV telescopic hot-stick probe, and ruggedized Bluetooth barcode scanner for automatic asset labeling.
How to Use Megger MIT525/2 to Predict Cable Failure Months in Advance
Ramp testing is the standout differentiator. By raising voltage in 100 V steps from zero to 5 kV and plotting leakage current, the MIT525/2 locates the inception point where partial discharge begins. If the slope changes at 3.2 kV today and previously held linear to 4 kV six months ago, you have quantified insulation strength erosion and can plan a scheduled outage rather than absorbing a fault at peak load. Combine the ramp result with Polarization Index: a PI < 2.0 plus a declining ramp knee almost always flags moisture or treeing long before breakdown.
Operator Safety and Regulatory Compliance with MIT525/2
Live-ground detection, automatic discharge, and a dual-channel voltmeter keep the unit locked-out until the asset reaches &
