Additel ADT226 Multifunction Process Calibrator
0.00 AED
In stock
Product Details

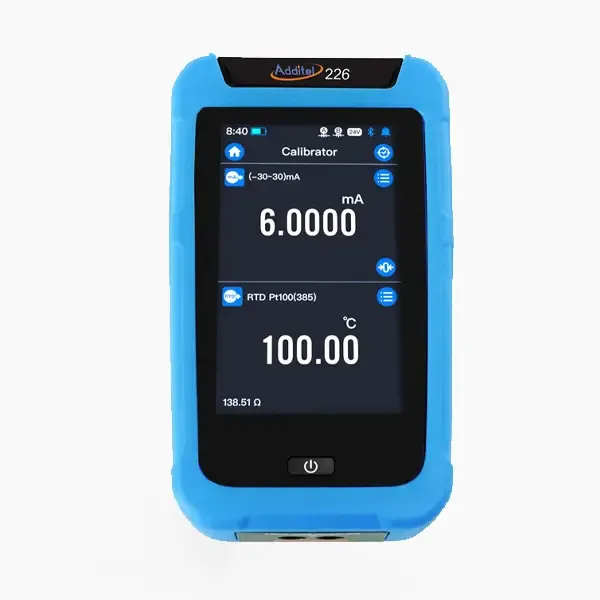

Additel ADT226 Multifunction Process Calibrator
The Additel ADT226 Multifunction Process Calibrator is a versatile device that integrates the functions of a high-end process calibrator with an efficient data acquisition system. It can scan and record up to 82 channels at a rate of 10 channels per second. The ADT226 is equipped with an internal rechargeable battery, providing up to 8 hours of continuous use. Additionally, it features a built-in USB port for easy data transfer.
Additel ADT226 Key Features
- Sourcing, simulating and measuring pressure, temperature and electrical signals
- Built-in Barometer
- Intrinsically safe models available (Ex)
- Large Smartphone like touchscreen user experience
- USB Type-C and Bluetooth communications
- IP67 Rated
- High Voltage Measurement Capability (±300V AC)
- True RMS Voltage Meter Capability
- Dual channel pressure module ports
- High Static Differential Pressure Measurement 0.002% FS
- ISO 17025-accredited calibration w/data included
Additel ADT226 Specifications
| Specification | Details |
| Operating Temperature | -10°C to 50°C |
| Specification Guaranteed Temp. Range | 10°C to 30°C |
| Storage Temperature | -30°C to 70°C |
| Humidity | <95%, non-condensing |
| Power Supply | 6600mAh, 23.8Wh lithium battery; charging time 4~6 hours; battery pack can be charged independently |
| User Interface | Icon-Driven Menus |
| Ports Protection Voltage | 50V max (only for the top ports) |
| Display | 5.0 inch 480 x 800 mm TFT LCD capacitive screen |
| Data Logger | 500 results, each result x 1,000,000 recordings; each recording can record 7 channels’ values |
| Maximum Altitude | 3000 meters |
| European Compliance | CE Mark |
| Electrical Connection | Ø4mm sockets and flat mini-jack thermocouple socket |
| Size | 6.97″ x 4.13″ x 2.04″ (177 mm x 105 mm x 52 mm) |
| Weight | 1.6 lb (0.7 kg) |
| Battery | Rechargeable Li-ion battery (included); Typically 16 hours of battery life |
| Battery Charge | 110V/220V external power adapter included; battery can be charged externally; Typical charge time 6-8 hours |
| External Pressure Module | Dual channel serial plug; can connect two digital pressure modules |
| Warm-up Time | Full specification performance achieved after 10 minutes |
| ROHS Compliance | ROHS II Directive 2011/65/EU, EN50581:2012 |
| Display Rate | 3 readings per second |
| Barometric Accuracy | 55Pa |
| IP Protection Level | IP67, 1 meter drop test |
| Communication | Isolated USB-TYPEC (slave), Bluetooth BLE |
| Calibration | ISO 17025-accredited calibration with data |
