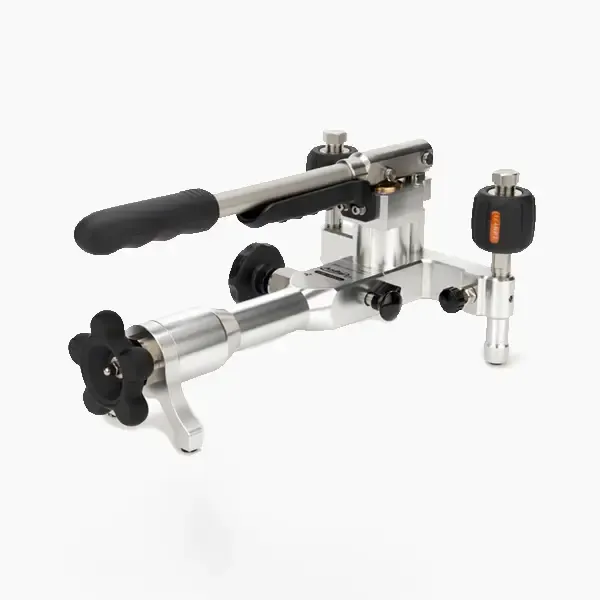

Additel ADT917 70 bar Pneumatic Pressure Test Pump
11,100.00 AED
In stock
Product Details
Brand:
Additel
Range:
95% vacuum to 1,000 psi (70 bar) positive pressure
Dimensions:
Height: 5.5'' (140 mm), Base: 12.4" (315 mm) x 7.8" (198 mm)
Pressure connection:
Hand-tight connectors for both test gauge and reference gauge. 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female
Housing:
Ram/adapters: SS, Body: SS, aluminum, Seals: Buna-N, PTFE, Copper Alloy
Weight:
5.7 lb (2.6 kg).
Introduction of Additel ADT917
The Additel ADT917 70 Bar Pneumatic Pressure Test Pump is a highly precise and reliable tool designed for generating pressure in a wide range of calibration and testing applications. It is particularly well-suited for calibrating pressure instruments, including gauges, transducers, and transmitters, in both laboratory and field environments.
Key Features
- Pressure Range: The ADT917 can generate pressures up to 70 bar (1,000 psi), making it suitable for a broad spectrum of applications. It also allows for fine adjustments within this range, ensuring accurate pressure setting and control.
- Precision Control: The pump is designed with a dual-stage piston for both priming and fine adjustment, which allows for highly accurate pressure control. The fine adjustment valve provides smooth pressure increases and decreases, enabling precise calibration tasks.
- Durable Construction: Built for durability and reliability, the ADT917 features high-quality materials that ensure long-term performance even in demanding environments. The robust design minimizes the need for maintenance and repairs, making it a cost-effective solution over time.
- Portability: Despite its high capacity, the ADT917 is compact and lightweight, making it easy to transport between different job sites or laboratory locations. This portability is enhanced by its ergonomic design, which includes a comfortable grip for ease of use.
- Easy Operation: The pump is user-friendly, with a straightforward interface that simplifies the process of pressure generation and adjustment. It includes connectors that are compatible with a wide range of devices, facilitating quick setup and operation.
- No Need for Oil or Water: The ADT917 is a dry pump, meaning it doesn't require any fluids like oil or water to operate. This not only reduces the maintenance requirements but also eliminates the risk of contamination in pressure-sensitive applications.
Applications
The Additel ADT917 70 Bar Pneumatic Pressure Test Pump is versatile and can be used in various scenarios, including:
- Calibration of Pressure Instruments: It provides a reliable pressure source for the calibration of pressure gauges, sensors, and transducers, ensuring that these instruments deliver accurate readings.
- Pressure Testing: The pump is ideal for conducting pressure tests on systems and components to verify their integrity and performance under pressure.
- Leak Testing: By generating stable pressure, the ADT917 can be used to detect leaks in sealed systems, helping to identify potential issues before they become critical.
- Laboratory Use: Its precise control makes it well-suited for use in laboratory settings where accurate pressure measurement is critical.
The Additel ADT917 70 Bar Pneumatic Pressure Test Pump is a versatile and reliable tool that is essential for professionals involved in pressure calibration and testing. Its high-pressure capability, coupled with precision control and durable construction, makes it an excellent choice for a wide range of applications. Whether used in the field or in the lab, the ADT917 offers the accuracy and reliability needed to ensure that pressure instruments are properly calibrated and systems are thoroughly tested.
Additel ADT917 Specifications
| Media | Air |
| Generated Pressure Range | 95% vacuum to 1,000 psi (70 bar) positive pressure |
| Adjustment Resolution | 10 Pa (0.1 mbar). |
| Material | Ram/adapters: SS |
| Body: SS, aluminum | |
| Seals: Buna-N, PTFE, Copper Alloy | |
| Piston volume | 1.6 in3 (27 ml) |
| Connection | Hand-tight connectors for both test gauge and reference gauge. |
| 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female | |
| Dimensions | Height: 5.5'' (140 mm), Base: 12.4" (315 mm) x 7.8" (198 mm) |
| Weight | 5.7 lb (2.6 kg). |
