Additel ADT920 200 bar Pneumatic Pressure Test Pump

Additel ADT920 200 bar Pneumatic Pressure Test Pump

Store / Pressure / Pressure Pump
21,795.00 AED
In stock
Product Details

Introduction of ADT920

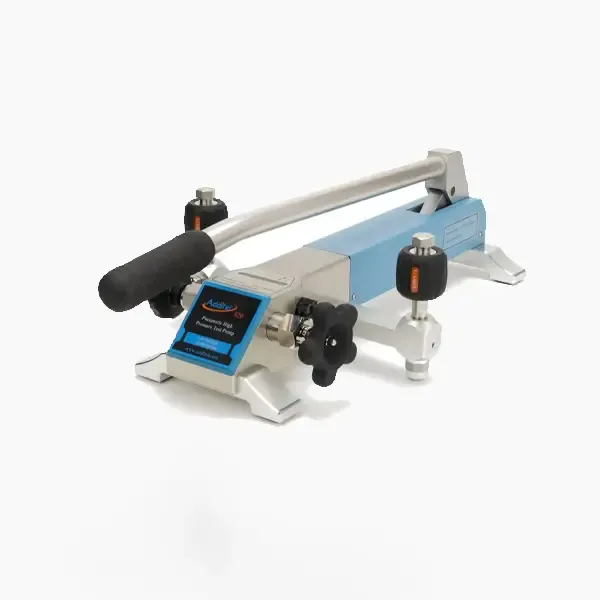

The Additel ADT920 200 bar Pneumatic Pressure Test Pump is a hand-operated device engineered to generate pressure ranging from 95% vacuum to 3,000 psi (200 bar). This paragraph will provide an overview of the key features and specifications of the Additel ADT920 200 Bar Pneumatic Pressure Test Pump.

The Additel ADT920 200bar Pneumatic Pressure Testing Pump is widely utilized in industries and calibration laboratories where precise pressure calibrations and tests are crucial. It is particularly well-suited for applications involving pressure measurement instruments, transmitters, and various devices operating at 200 bar or above 3000 psi. The hand-operated design of the pump makes it ideal for field applications where mobility is key, enabling on-site calibration and testing.

Additel ADT920 Key Features

  • Adjustment Resolution
  • Great Stability
  • Durable and Minimal Maintenance
  • Hand-tight Quick Connectors

Additel ADT920 Specifications

Feature Specification
Media Air
Generated Pressure Range 95% vacuum to 3000 psi (200 bar) positive pressure
Adjustment Resolution 10 Pa (0.1 mbar, 0.015 psi)
Material
- Ram/Adapters SS (Stainless Steel)
- Body SS (Stainless Steel), Aluminium
- Seals Buna-N, PTFE, Copper Alloy
Piston Volume 60 ml (3.7 in³) for 920, 115 ml (7.023 in³) for 920HV
Connection Hand-tight connectors for both test gauge and reference gauge
- Connector Types 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female
Dimensions Height: 7″ (178 mm), Base: 21.26″ (540 mm) x 10.63″ (270 mm)
Weight 14.3 lb (6.5 kg) for 920, 15.9 lb (7.2 kg) for 920HV
