Chauvin Arnoux CA6255 MicroOhmmeter
17,820.00 AED
In stock
Product Details

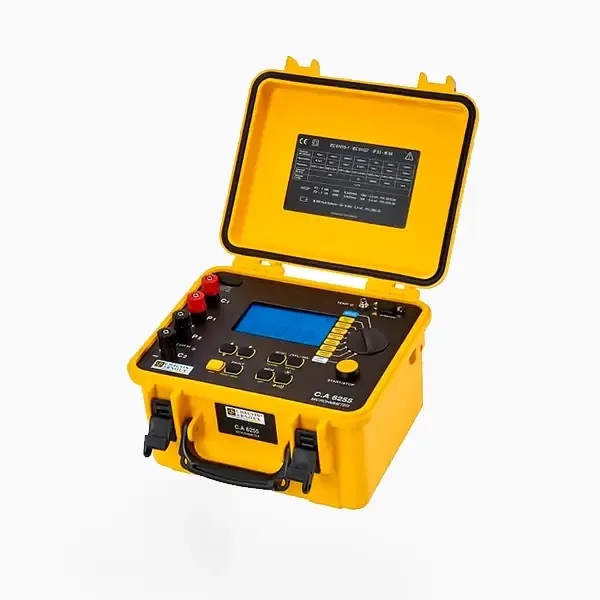

Chauvin Arnoux CA6255 MicroOhmmeter
The Chauvin Arnoux CA6255 Micro-Ohmmeter is a precision instrument designed to measure low resistance values across various industries, including electrical, automotive, and aerospace sectors. It features a large backlit display that shows measurement values, modes, and menus, and is equipped with automatic temperature compensation and four-wire measurement capability to ensure accurate and reliable readings.
This micro-ohmmeter is ideal for a broad range of applications, such as testing electrical and electronic components, measuring transformer winding resistance, and assessing electrical contact resistance. It is designed to measure resistance in the micro-ohm range with high precision. Depending on the model, the micro-ohmmeter offers a wide measurement range from a few micro-ohms to several ohms.
Chauvin Arnoux CA6255 Key Features
- Optimized current generator on inductive objects
- Measurement up to 2,500 Ω, resolution 0.1 μΩ
- Automatic compensation of stray voltages
- Calculation of R at a reference temperature –
Pt100 Ω probe - Automatic discharge after test
- Programmable alarms
- Storage of up to 1,500 measurements
- Communication with a PC
Chauvin Arnoux CA6255 Specifications
| Parameter | Details |
| 4-Wire Measurement Method
|
|
| Calibre | 5.0000 mΩ, 25.000 mΩ, 250.00 mΩ, 2500.0 mΩ, 25.000 Ω, 250.00 Ω, 2500.0 Ω
|
| Resolution | 0.1 µΩ, 1 µΩ, 10 µΩ, 0.1 mΩ, 1 mΩ, 10 mΩ, 100 mΩ
|
| 1-Year Accuracy | 0.05 % + 1 µΩ, 0.05 % + 3 µΩ, 0.05 % + 30 µΩ, 0.05 % + 0.3 mΩ, 0.05 % + 3 mΩ, 0.05 % + 30 mΩ, 0.05 % + 300 mΩ
|
| Measurement Current | 10 A, 10 A, 10 A, 1 A, 100 mA, 10 mA, 1 mA |
| Voltage Drop | 50 mV, 250 mV, 2,500 mV, 2,500 mV, 2,500 mV, 2,500 mV, 2,500 mV
|
| Measurement Modes | Inductive, non-inductive, non-inductive with automatic trigger
|
| Temperature Compensation | By temperature sensor or manual |
| Data Storage | 1,500 measurements |
| Communication Output | RS 232 link |
| Power Supply | NiMH rechargeable battery |
| Dimensions / Weight | 270 x 250 x 180 mm / approx. 4 kg |
