EXTECH PQ3450 3Phase Power Analyzer
7,686.00 AED
In stock
Product Details
Brand:
EXTECH
Number of Inputs:
200mV, 300mV, 500mV, 1V, 2V, 3V (user-selectable)
Measurement Range:
AC Current: up to 3000A (depends on the current clamp probes used), AC Voltage: 600.0V, Active Power: 9.999MW
Resolution:
±(0.5% of reading + 0.5A), ±(0.5% of reading + 0.5V)
Frequency:
45Hz to 65Hz
Dimensions:
8.86 × 4.92 × 2.52" (225 × 125 × 64mm)
Weight:
2.2lbs (1010g)
Memory :
30,000 readings (2GB SD memory Card)
Display:
large, dot matrix, sun-readable, backlit LCD
Power :
8 × AA (1.5V) batteries

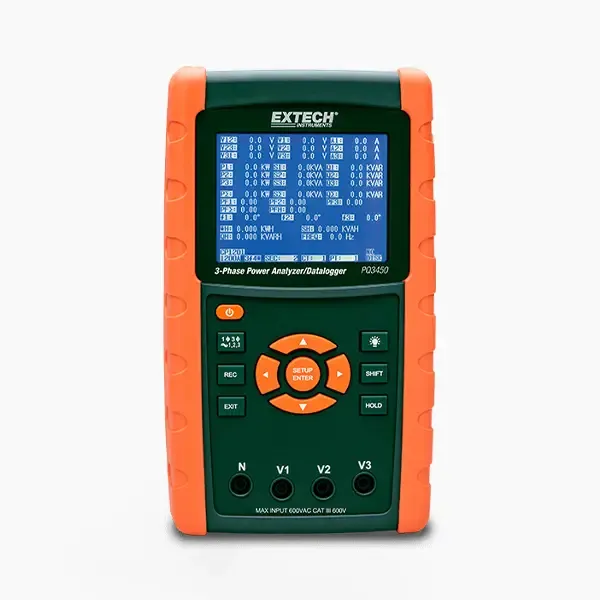

EXTECH PQ3450
The EXTECH PQ3450 3-Phase Power Analyzer is a versatile and robust tool designed for professionals who need to monitor and analyze power quality in three-phase systems. This device is particularly useful for identifying power issues, optimizing energy usage, and ensuring the reliability of electrical systems.
Key Features
- Comprehensive Data Logging: The PQ3450 can log up to 30,000 sets of measurements on a removable SD memory card in Microsoft Excel® format, making data analysis straightforward and efficient.
- Wide Range of Measurements: It measures up to 35 parameters, including voltage (phase-to-phase and phase-to-ground), current, power (KW, KVA, KVAR), power factor, and energy consumption (KWH, KVAH, KVARH).
- High Sampling Rate: The device offers a wide sampling rate range from 2 seconds to 2 hours, allowing for detailed and customizable data collection.
- User-Friendly Interface: Equipped with a large dot-matrix, sun-readable, numerical, backlit LCD and an easy-to-use onscreen menu, the PQ3450 ensures ease of operation even in challenging environments.
- Rugged Design: The analyzer features a durable, over-molded housing that can withstand tough industrial conditions.
- Safety and Compliance: It comes with a CAT III 600V safety rating, ensuring it meets high safety standards for electrical testing.
Applications
The EXTECH PQ3450 is ideal for a variety of applications, including:
- Energy Audits: Helps in identifying areas where energy consumption can be reduced.
- Power Quality Analysis: Detects issues such as voltage sags, swells, and harmonics that can affect equipment performance.
- Preventive Maintenance: Monitors electrical systems to prevent unexpected failures and downtime.
- Compliance Testing: Ensures that electrical systems meet regulatory standards.
Why Choose EXTECH PQ3450
Choosing the EXTECH PQ3450 means investing in a reliable and accurate power analyzer that provides comprehensive data logging and analysis capabilities. Its user-friendly interface, robust design, and extensive measurement range make it a valuable tool for any professional dealing with three-phase power systems.
EXTECH PQ3450 Specifications
| General Specifications | |
| AC Current | up to 3000A (depends on the current clamp probes used) |
| AC Current Basic Accuracy | ±(0.5% of reading) |
| AC Voltage | 600.0V |
| AC Voltage Basic Accuracy | ±(0.5% of reading) |
| Active Power | 9.999MW |
| Active Power Basic Accuracy | ±(1.0% of reading) |
| Active Power Energy | 0.0kWh to 9.999MWH |
| Active Power Energy Basic Accuracy | ±(2.0% of reading) |
| Apparent Power | 9.999MVA |
| Apparent Power Basic Accuracy | ±(1.0% of reading) |
| Apparent Power Energy | 0.0KVAh to 9.999MVAH |
| Apparent Power Energy Basic Accuracy | ±(2.0% of reading) |
| Frequency | 45Hz to 65Hz |
| Frequency Basic Accuracy | ±0.1Hz |
| Input Range | 200mV, 300mV, 500mV, 1V, 2V, 3V (user-selectable) |
| Input Range Basic Accuracy | ±(0.5% of reading) |
| Memory | 30,000 readings (2GB SD memory Card) |
| Phase | -180 ° to +180° |
| Phase Basic Accuracy | ±1° |
| Power Factor | 0.00 to 1.00 |
| Power Factor Basic Accuracy | ±0.04 |
| Reactive Power | 9.999MVAR |
| Reactive Power Basic Accuracy | ±(1.0% of reading) |
| Reactive Power Energy | 0.0kVARh to 9.999MVARH |
| Reactive Power Energy Basic Accuracy | ±(2.0% of reading) |
| True RMS | Yes |
| Additional Details | |
| Certifications | CE, UL |
| Dimensions | 8.86 × 4.92 × 2.52" (225 × 125 × 64mm) |
| Power | 8 × AA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 2.2lbs (1010g) |
