Extech CG204
+2

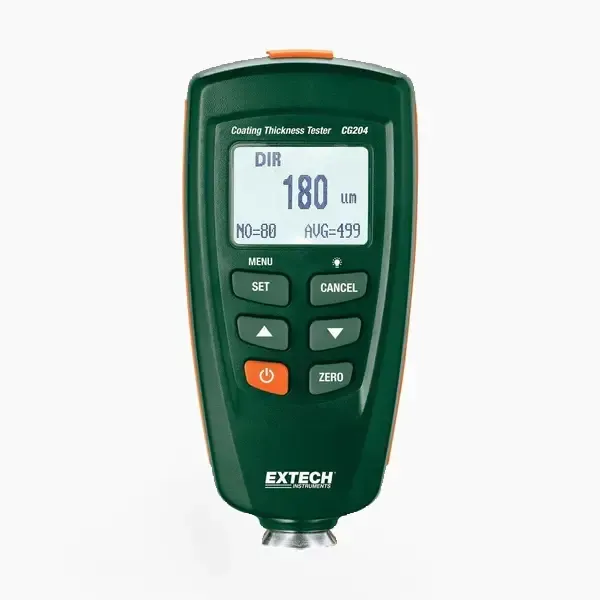

Extech CG204 Coating Thickness Tester

Store / Material Testing
808.00 AED
In stock
Product Details

Extech CG204 Coating Thickness Tester

The Extech CG204 Coating Thickness Tester is a precise and versatile instrument designed for measuring the thickness of coatings on various substrates. This tool is essential for quality control, material inspection, and maintenance in industries such as automotive, manufacturing, and construction.

The Extech CG204 Coating Thickness Tester is a reliable and accurate tool that provides essential measurements for various industries. Its dual technology, high accuracy, and user-friendly design make it an invaluable instrument for ensuring the quality and consistency of coatings on different substrates.

Extech CG204 Key Features

  • Automatic substrate recognition
  • Magnetic induction for ferrous substrates
  • Eddy current measurement for non-ferrous substrates
  • Easy-to use menu system
  • Two measuring modes: Single and Continuous
  • Two working modes: Direct and Group
  • Memory stores 400 readings: 80 Direct and 320 Group
  • User-programmable high/low alarms
  • Min/Max/Average

Extech CG204 Specifications

Specifications Ferrous Non-Ferrous
Working Principle Magnetic Induction Eddy Current
Measuring Range 0 to 1250 µm (0 to 49 mils) 0 to 1250 µm (0 to 49 mils)
Basic Accuracy ±3% ±3%
Resolution 0.1 µm (0.004 mils) 0.1 µm (0.004 mils)
Minimum Curvature Radius 1.5 mm (59.06 mils) 3 mm (118.1 mils)
Minimum Diameter 7 mm (275.6 mils) 5 mm (196.9 mils)
Minimum Thickness 0.5 mm (19.69 mils) 0.3 mm (11.81 mils)
Dimensions 4.7 x 2.4 x 1.25 in (120 x 62 x 32 mm
Weight 6.17 oz,175 g
