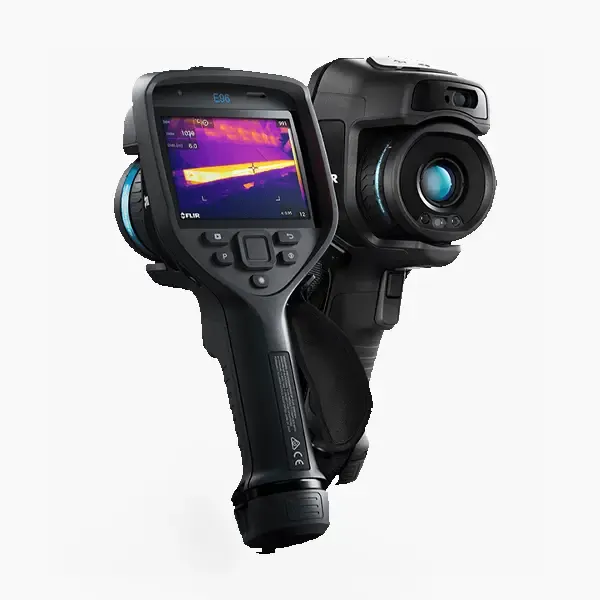

FLIR E96 Advanced Thermal Imaging Camera

Introduction of FLIR E96

The FLIR E96 is our first pistol-grip camera featuring a 640 × 480 thermal resolution, enabling inspectors to safely survey high-voltage and hazardous targets while quickly diagnosing electrical and mechanical failures. With a variety of lens options, the FLIR E96 ensures comprehensive coverage of both nearby and distant targets.

Combine the E96 with a FLIR FlexView™ dual field-of-view lens to effortlessly switch between wide-area and telephoto scanning with a single button press. The onboard FLIR Inspection Route feature guides inspectors through pre-planned routes, ensuring organized surveys of large or multiple locations. Additionally, FLIR Ignite allows automatic uploading of E96 images directly from the camera to the cloud, providing easy and secure storage and sharing.

FLIR E96 Key Features

• The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most virbrant, easiest-to-interpret images in its class.
• Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
• Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday.

FLIR E96 Price

Discover competitive prices on FLIR's products at Uazon store, available throughout the U.A.E

FLIR E96 Specifications

Category	Specification	Details
General	IR Resolution	640 × 480 pixels
	Thermal Sensitivity/NETD	<40 mK at 30°C (86°F)
	Accuracy	±2°C (±3.6°F) or ±2% of the reading
	Digital Camera	5 MP, with built-in LED photo/video lamp
	Display	4″, 640 × 480 pixel touchscreen LCD with auto-rotation
	Storage Media	Removable SD card
Imaging & Optical	Color Palettes	Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
	Detector Type and Pitch	Uncooled microbolometer, 12 µm
	Digital Zoom	1-8× continuous
	f-number	1.3
	Focus	Continuous LDM, One-shot LDM, One-shot contrast, Manual
	Image Frequency	30 Hz
	Lens Identification	Automatic
	Minimum Focus Distance	0.15 m
	Non-radiometric IR video streaming	H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
	Picture-in-Picture	Resizable and movable
	Radiometric IR video recording	Real-time radiometric recording (.csq)
	Radiometric IR video streaming	Yes, over UVC
	Spectral Range	7.5-14 µm
	UltraMax	Yes
