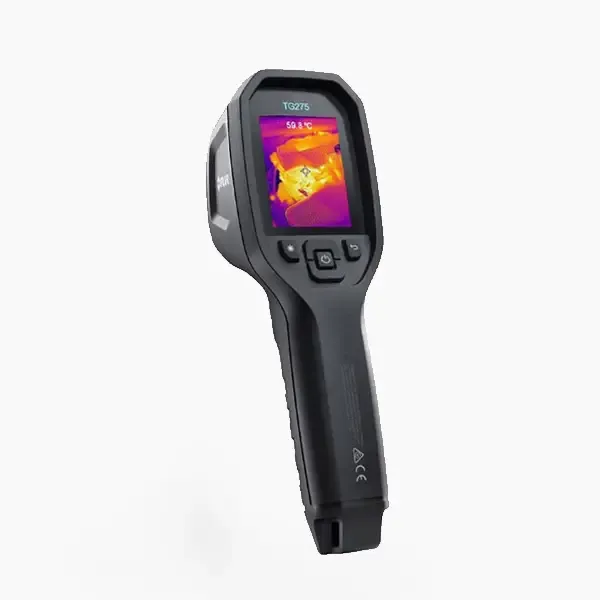

Flir TG275 Thermal Camera
3,772.00 AED
In stock
Product Details
Introduction of Flir TG275
Automotive service and repair professionals looking to streamline the diagnostic process and prevent hidden issues can rely on the FLIR TG275. This tool features IGMTM (Infrared Guided Measurement), combining thermal imaging with non-contact temperature measurement to assist in troubleshooting repairs, identifying potential future failures, and capturing photos to assure clients that issues have been resolved.
FLIR TG275 Key Features
- identify problems quickly
- superior image quality
- at an affordable price
Flir TG275 Specifications
| CATEGORY | SPECIFICATION | DETAILS |
|---|---|---|
| IMAGING & OPTICAL | IR Resolution | 160 × 120 pixels |
| Thermal Sensitivity/NETD | <70 mK | |
| Field of view (FOV) | 57° × 44° | |
| Minimum Focus Distance | 0.3 m (0.98 ft) | |
| Minimum Measurement Distance | 0.26 m (0.85 ft) | |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging), Visual with temperature reading | |
| Display | 320 × 240 pixel, 2.4 in color LCD | |
| Storage Media | eMMC 4 GB | |
| Color Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava | |
| Detector Type | Focal plane array (FPA), uncooled microbolometer | |
| Detector Pitch | 12 µm | |
| Digital Image Enhancement | Yes | |
| Focus | Focus free | |
| Laser | Class 1 laser indicates the temperature measurement area; button-activated | |
| Gallery | Yes | |
| MEASUREMENT & ANALYSIS | Accuracy | ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 550°C (212°F to 1022°F) |
| Camera size (L x W x H) | 210 mm × 64 mm × 81 mm (8.3 in × 2.5 in × 3.2 in) | |
| Camera weight incl battery | 0.394 kg (13.9 oz) | |
| Emissivity Correction | Yes: 4 preset levels with custom adjustment of 0.1–0.99 | |
| Object Temperature Range | -25°C to 550°C (-13°F to 1022°F) | |
| Spot Meter | Center spot on/off | |
| USER INTERFACE | Display | 320 × 240 pixel, 2.4 in color LCD |
| Languages | Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish | |
| Set-up Commands | Local adaptation of units, language, date, and time formats; Screen brightness (high, medium, low); Gallery, deletion of images | |
| POWER | Battery Type | Rechargeable Li ion battery |
| Battery Voltage | 3.7 V | |
| Battery Charge Life | 30 days minimum | |
| Battery Operating Time | 5 hours continuous scanning, 4.5 hours with laser on | |
| Charging System | Battery is charged inside the camera | |
| ENVIRONMENTAL & CERTIFICATIONS | Drop test | Designed for 2 m (6.6 ft) |
| EMC | EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B | |
| Encapsulation | IP 54 (IEC60529) | |
| Humidity (Operating and Storage) | 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F)) | |
| Operating Temperature Range | Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F); Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F) | |
| Radio Spectrum | ETSI EN 300 328, FCC Part 15.249, RSS-247 Issue 2, EN 301 489-1:2011, EN 301 489-17:2009 | |
| Safety | CE/CB/EN61010/UL | |
| Shock | 25 g (IEC 60068-2-27) | |
| GENERAL | Included Items | TG275, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch |
