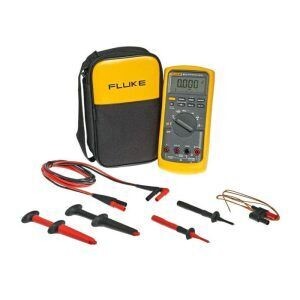

Fluke 87V MAX Ultimate True-rms Digital Multimeter
0.00 AED
In stock
Product Details
UPC:
095969926287
Brand:
Fluke
AC Voltage Range:
0.1 mV to 1000 V
DC Voltage Range:
0.1 mV to 1000 V
AC Current Range:
0.1 μA to 10 A
DC Current Range:
0.1 μA to 10 A
AC Voltage Overload Protection:
CAT IV 600 V, CAT III 1000 V
DC Voltage Overload Protection:
CAT IV 600 V, CAT III 1000 V
Resistance Range:
0.1 Ω to 50 MΩ
Capacitance Range:
0.01 nF to 9999 μF
Frequency Range :
0.5 Hz to 199.99 kHz
Conductance Range:
60.00 nS
Diode test:
2 V
Duty cycle:
99.9%
Temperature Range:
-200.0°C - 1090°C; -328.0°F - 1994.0°F
Power:
Three AA batteries. 800 hours typical, without backlight
Dimension:
6.0 x 10.1 x 21.5 cm (with holster)
Weight:
698.5 g (with holster)
Continuity buzzer:
-15 °C to 55 °C, to -40 °C for 20 minutes when taken from 20 °C
Applicable standards:
-40 °C to + 60 °C
Fluke 87V MAX Digital Multimeter
The Fluke 87V True Rms Industrial Multimeter is a high-performance tool designed to troubleshoot plant automation, power distribution, and electromechanical equipment. It is rugged, accurate, and safe, making it a must-have tool for anyone working with electricity.
The multimeter is designed to withstand spikes higher than 8000 V and features an audible warning if test leads are placed in the wrong jack. It is waterproof and dustproof, with an IP67 rating, making it ideal for use in extreme work sites.
Fluke 87V True RMS Industrial Multimeter: Precision Troubleshooting for Complex VFD Signals and High-Altitude Environments
The Fluke 87V True Rms Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot complex variable frequency drive (VFD) signals, even in loud, high-energy, and high-altitude locations. It features a low pass filter that supports accurate frequency measurements on VFDs and captures intermittents as fast as 250 µS with Peak Capture.
The multimeter can measure AC currents up to 10 A directly, or use an optional clamp for high current measurements. It can measure voltage up to 1000 V AC/DC, current up to 10 A AC/DC, and frequency up to 200 kHz.
Fluke 87V max safety
The Fluke 87V True Rms Industrial Multimeter is built to the highest safety standards, with all inputs updated to the third edition of the EN 61010-1 to CAT III 1000 V and CAT IV 600 V. It is designed to withstand drops up to 4-meters (13 feet) with industrial strength casing and holster. The multimeter features a bright, two-level backlit display that makes it easy to read measurements in dim light.
In conclusion, the Fluke 87V True Rms Industrial Multimeter is a reliable, accurate, and durable tool that can handle a wide range of electrical applications.
It is designed to withstand tough environments and provide accurate measurements even in complex variable frequency drive (VFD) signals. The multimeter is easy to use and comes with a variety of features that make it a must-have tool for anyone working with electricity.
Fluke 87V MAX Multimeter Specifications:
| Function | Specifications |
|---|---|
| Voltage DC | Maximum voltage: 0.1 mV to 1000 V Accuracy: ±(0.05% + 1) Maximum resolution: 0.1 mV |
| Voltage AC | Maximum voltage: 0.1 mV to 1000 V Accuracy: ±(0.7% + 2) True RMS AC bandwidth: 20 kHz with low pass filter; 3 dB @ 1 kHz Maximum resolution: 0.1 mV |
| Current DC | Maximum amps: 0.1 μA to 10 A (20 A for 30 seconds maximum) Amps accuracy: ±(0.2% + 2) Maximum resolution: 0.01 µA |
| Current AC | Maximum amps: 0.1 μA to 10 A (20 A for 30 seconds maximum) Amps accuracy: ±(1.0% + 2) True RMS Maximum resolution: 0.1 µA |
| Resistance | Maximum resistance: 0.1 Ω to 50 MΩ Accuracy: ±(0.2% + 1) Maximum resolution: 0.1 Ω |
| Capacitance | Maximum capacitance: 0.01 nF to 9999 μF Accuracy: ±(1% + 2) Maximum resolution: 0.01 nF |
| Frequency | Maximum frequency: 0.5 Hz to 199.99 kHz Accuracy: ±(0.005% + 1) Maximum resolution: 0.01 Hz |
| Duty Cycle | Maximum Duty Cycle: 99.9% Accuracy: ±(0.2% per kHz + 0.1%) Maximum Resolution: 0.1% |
| Temperature Measurement | -200.0°C - 1090°C; -328.0°F - 1994.0°F; excluding probe 80 BK Temperature Probe: -40.0°C - 260°C; -40.0°F - 500°F, 2.2°C or 2% whichever is greater |
| Conductance | Maximum Conductance: 60.00 nS Accuracy: ±(1.0% + 10) Maximum Resolution: 0.01 nS |
| Diode | Range: 2 V Resolution: 1 mV Accuracy: ±(1% + 1) |
| Environmental Specifications | Operating Temperature: -20°C to +55°C Storage Temperature: -40°C to +60°C Humidity (Without Condensation): - 0% - 90% (0°C - 35°C) - 0% - 70% (35°C - 55°C) Operating Altitude: 2000 m |
| Diagnostics and Data Storage | Peak Min/Max: 250 μS Min/Max/Avg: Yes Reading hold/Auto (Touch) Hold: Yes Relative reference: Yes |
| Safety Specifications | Overvoltage category: IEC61010-1: Pollution Degree 2; IEC 61010-2-033: CAT IV 600 V, CAT III 1000 V Agency Approvals: CE, CSA |
| Display | Digital: 6000 counts updates 4/second; 19,999 counts in high–resolution mode Analog bar graph: 32 segments, updates 40/second Backlight: Two levels Low pass filter (VFD measurements): Yes Input Alert™: Yes |
| Mechanical and General Specifications | IP rating: IEC 60529: IP67 Power: Three AA batteries. 800 hours typical, without backlight Size: 6.0 x 10.1 x 21.5 cm (with holster) Weight: 698.5 g (with holster) Warranty: Limited lifetime |
