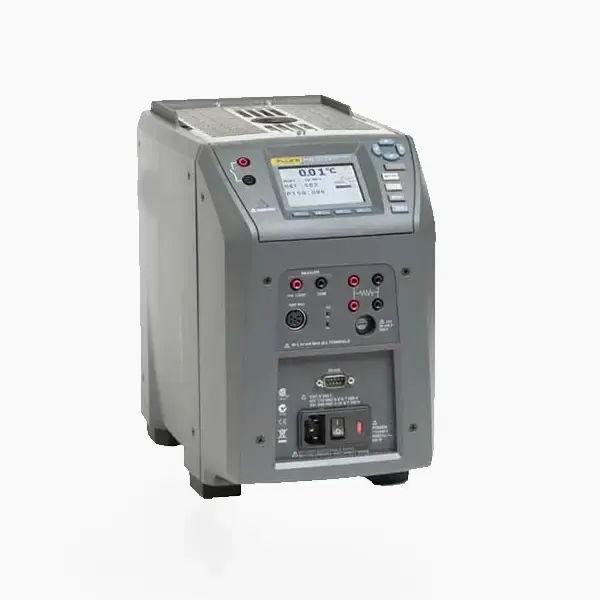

Fluke Calibration 9173 Field Metrology Well
0.00 AED
In stock
Product Details
Brand:
Fluke
Range:
(at 23°C ambient) : 50°C to 700°C1 (122°F to 1292°F)
Accuracy:
±0.2°C: 50°C to 425°C, ±0.25°C: 425°C to 660°C
Stability:
±0.005°C: 50°C to 100°C, ±0.01°C: 100°C to 425°C, ±0.03°C: 425°C to 700°C
Well depth :
203 mm (8 in)
Heating time :
46 min: 50°C to 700°C
Cooling time :
235 min: 700°C to 50°C, 153 min: 700°C to 100°C
Power :
115 V AC (±10%), or 230 V AC (±10%), 50/60 Hz, 1025 W
Dimensions:
366 x 203 x 323 mm (14.4 x 8 x 12.7 in)
Weight:
15 kg (33 lb)
Fluke Calibration 9173
The Fluke Calibration 9173 Field Metrology Well is a high-performance temperature calibrator designed for accurate and reliable calibration of thermometers and temperature sensors in various industrial and laboratory settings. This portable device is particularly suited for applications requiring high-temperature measurements, making it an essential tool for professionals in fields such as manufacturing, HVAC, and research.
Key Features
- Temperature Range: The 9173 operates within a temperature range of 50°C to 700°C (122°F to 1292°F), providing flexibility for a wide variety of calibration needs.
- Display Accuracy: It offers a display accuracy of ±0.25°C at 700°C, ensuring precise readings for high-temperature applications.
- Stability: The calibrator boasts exceptional stability, achieving ±0.03°C over its full temperature range, which is critical for minimizing uncertainty in temperature measurements.
- Immersion Depth: With an immersion depth of 203 mm (8 in), the 9173 significantly reduces stem conduction errors, allowing for more accurate temperature readings.
- Uniformity: The unit features excellent axial uniformity, maintaining temperature consistency across the calibration well, which is vital for reliable calibration results.
- Built-in Reference Thermometry: The 9173 can be equipped with built-in electronics for reading external PRTs (Platinum Resistance Thermometers), enhancing its versatility and accuracy.
Applications
The Fluke Calibration 9173 is ideal for a range of applications, including:
- Calibration of Industrial Thermometers: Ensuring the accuracy of temperature sensors used in manufacturing and processing environments.
- HVAC Testing: Calibrating temperature sensors in heating, ventilation, and air conditioning systems to maintain optimal performance.
- Laboratory Research: Providing precise temperature measurements for experiments and testing in scientific research.
- Field Calibration: Its portability makes it suitable for on-site calibration of temperature devices, ensuring accuracy in various environments.
The Fluke Calibration 9173 Field Metrology Well is a robust and versatile temperature calibrator that delivers high accuracy and stability for a wide range of applications. Its ability to operate at high temperatures, combined with features like deep immersion and built-in reference thermometry, makes it an essential tool for professionals who require reliable temperature measurements in both field and laboratory settings.
Fluke Calibration 9173 Specifications
| Range (at 23°C ambient) | 50°C to 700°C1 (122°F to 1292°F) | ||
| Display accuracy | ±0.2°C: 50°C to 425°C | ||
| ±0.25°C: 425°C to 660°C | |||
| Stability | ±0.005°C: 50°C to 100°C | ||
| ±0.01°C: 100°C to 425°C | |||
| ±0.03°C: 425°C to 700°C | |||
| Axial uniformity | ±0.1°C: 50°C to 100°C | ||
| ±0.25°C: 100°C to 425°C | |||
| ±0.4°C: 425°C to 700°C | |||
| Radial uniformity | ±0.01°C: 50°C to 100°C | ||
| ±0.025°C: 100°C to 425°C | |||
| ±0.04°C: 425°C to 700°C | |||
| Loading effect (with a 6.35 mm reference probe and three 6.35 mm probes) | ±0.02°C at 425°C, ±0.04°C at 700°C | ||
| ±0.04°C at 700°C | |||
| Hysteresis | 0.07°C | ||
| Well depth | 203 mm (8 in) | ||
| Resolution | 0.001°C | ||
| Display | LCD, °C or °F, user-selectable | ||
| Key pad | Ten key with decimal and ± button. Function keys, menu key, and °C / °F key. | ||
| Cooling time | 235 min: 700°C to 50°C | ||
| 153 min: 700°C to 100°C | |||
| Heating time | 46 min: 50°C to 700°C | ||
| Size (H x W x D) | 366 x 203 x 323 mm (14.4 x 8 x 12.7 in) | ||
| Weight | 15 kg (33 lb) | ||
| Power | 115 V AC (±10%), or | ||
| 230 V AC (±10%), 50/60 Hz, 1025 W | |||
| Computer interface | RS-232 Interface | ||
| Traceable calibration (NIST) | Data at 100°C, 200°C, 350°C, 500°C, and 660°C | ||
| Specifications | Built-in Reference Input | ||
| Temperature range | –200°C to 962°C (–328°F to 1764°F) | ||
| Resistance range | 0 Ω to 400 Ω, auto-ranging | ||
| Characterizations | ITS-90 subranges 4, 6, 7, 8, 9, 10, and 11 Callendar-Van Dusen (CVD): R0, a, b, d | ||
| Resistance accuracy | 0 Ω to 20 Ω: 0.0005 W | ||
| 20 Ω to 400 Ω: 25 ppm | |||
| Temperature accuracy (does not include probe uncertainty) | 10 Ω PRTs: | 25 Ω and 100 Ω PRTs: | |
| ±0.013°C at 0°C | ±0.005°C at –100°C | ||
| ±0.014°C at 155°C | ±0.007°C at 0°C | ||
| ±0.019°C at 425°C | ±0.011°C at 155°C | ||
| ±0.028°C at 700°C | ±0.013°C at 225°C | ||
| ±0.019°C at 425°C | |||
| ±0.027°C at 661°C | |||
| Resistance resolution | 0 Ω to 20 Ω: 0.0001 Ω | ||
| 20 Ω to 400 Ω: 0.001 Ω | |||
| Measurement period | 1 second | ||
| Probe connection | 4-wire with shield, 5-pin DIN connector | ||
| Calibration | NVLAP accredited (built-in reference input only), NIST-traceable calibration provided | ||
