Hioki IR3455 Insulation Tester

Hioki IR3455 Insulation Tester

Store / Electrical
6,298.00 AED
In stock
Product Details

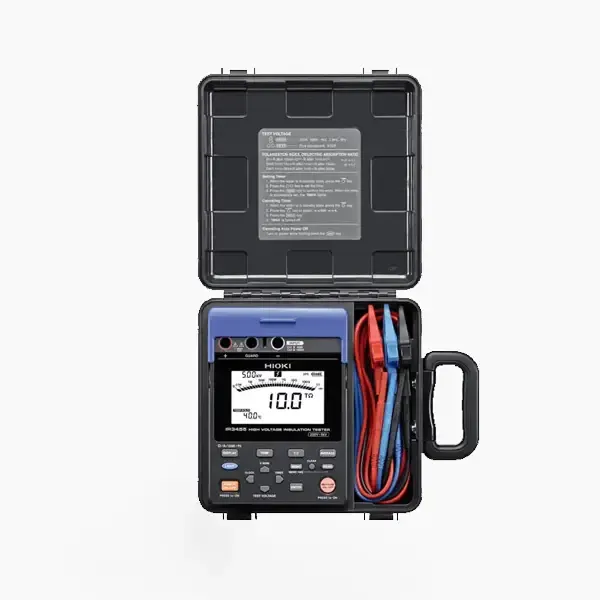

Hioki IR3455 High Voltage Insulation Tester

The Hioki IR3455 High Voltage Insulation Tester is designed for high voltage insulation resistance testing, providing a wide measurement range, multiple test voltages, and various advanced features. It is suitable for testing insulation in electrical equipment and installations, ensuring safety and reliability.

High-performance features include a bar graph display, built-in memory, leakage current and voltage testing, and capabilities for DAR and PI calculations, all designed to reduce the work time associated with field insulation testing.

Hioki IR3455 Key Features

  • Significantly improve testing speed using test lead with remote switch
  • Identify PASS / FAIL using light and sound
  • Convenient for inspections
  • Prevent Accidental High Voltage Generation

Hioki IR3455 Specifications

Feature Specifications
Measurement Range 0.00 MΩ to 500 GΩ (250 V) / 0.00 MΩ to 10.0 TΩ (5 kV)
Measurement Current 1 mA (Test voltage 250 V to 1.00 kV), 0.5 mA (Test voltage 1.10 kV to 2.50 kV)
Resistance Range 10 MΩ to 10 TΩ, 7 ranges (auto range)
Leakage Current Measurement 1.00 nA to 1.20 mA, 6 ranges / Accuracy ±2.5% rdg
Voltage Measurement ±50 V to ±1.00 kV DC, 50 V to 750 V AC (50/60 Hz) / Accuracy: ±5 % rdg
Temperature Measurement -10.0 ˚C to 70.0 ˚C, 3 ranges / Accuracy ±1.0 ˚C (0.0 ˚C to 40.0 ˚C)
Power Supply LR6 (AA) alkaline batteries ×6, Battery pack 9459, or AC adapter 9753 or 9418-15 (100 – 240 VAC)
Dimensions and Mass 260 mm (10.24 in)W × 250.6 mm (9.87 in)H × 119.5 mm (4.70 in)D, 2.8 kg (6.17 lb)
