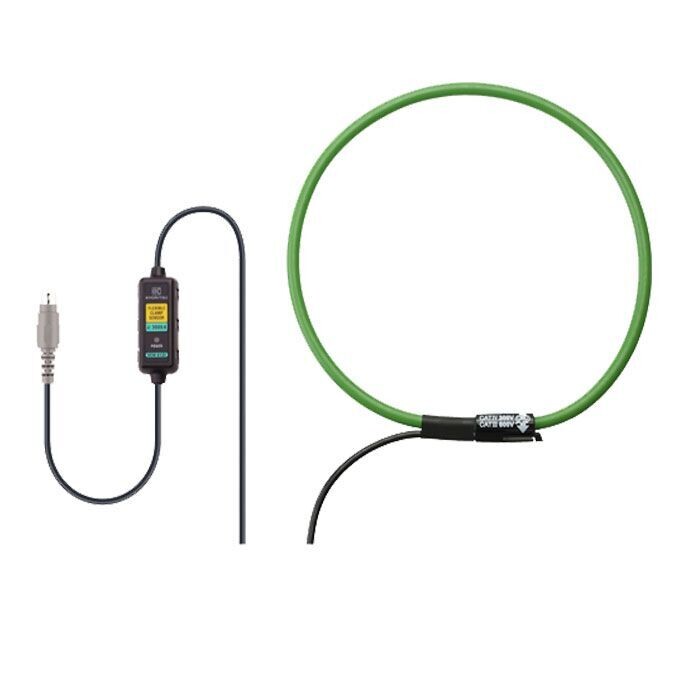

KYORITSU 8133-03 Flexible Clamp Sensor

KYORITSU 8133-03 Flexible Clamp Sensor

The Kyoritsu KEW 8133-03 Flexible Clamp Sensor is an innovative accessory designed to enhance current measurement capabilities in various electrical applications. With its flexibility and precision, this clamp sensor provides a convenient and efficient solution for professionals in need of versatile current monitoring.

The Kyoritsu KEW 8133-03 Flexible Clamp Sensor is a versatile and reliable tool for professionals requiring flexible current measurement capabilities. Its adaptability, accuracy, and ease of use make it a valuable accessory for a variety of electrical measurement applications.

KYORITSU 8133-03 Flexible Clamp Sensor Applications :

Energy Auditing:

• Ideal for professionals conducting energy audits, allowing accurate measurement of current in diverse electrical systems.

Power Quality Analysis:

• Valuable for power quality analysis, enabling precise current measurements for assessing and optimizing electrical system performance.

Industrial Monitoring:

• Suitable for current monitoring in industrial settings, contributing to the optimization of machinery and equipment performance.

Commercial Electrical Systems:

• Applicable for current measurement in commercial buildings, supporting energy management and efficiency initiatives.

KYORITSU 8133-03 Flexible Clamp Sensor Key Features :

Flexibility for Diverse Applications:

• The KEW 8133-03 features a flexible clamp design, allowing it to adapt to various conductor sizes and shapes. This versatility makes it suitable for a wide range of current measurement scenarios.

Wide Current Measurement Range:

• With a wide current measurement range, this clamp sensor accommodates different current levels encountered in industrial, commercial, and residential electrical systems.

Accurate and Reliable Measurements:

• Engineered for precision, the clamp sensor provides accurate and reliable current measurements. This accuracy is crucial for ensuring the integrity of data in electrical monitoring and troubleshooting.

Ease of Installation:

• The flexible design facilitates easy installation around conductors, streamlining the process of setting up current measurements. This ease of use enhances efficiency in various applications.

Compatibility with Multimeters and Instruments:

• The KEW 8133-03 is compatible with a range of multimeters and measuring instruments. This compatibility enhances its integration into existing measurement setups.

Compact and Portable Design:

• Designed with portability in mind, the compact form factor allows for easy transport and on-site measurements. This feature contributes to the clamp sensor's suitability for both fieldwork and laboratory applications.

KYORITSU 8133-03 Flexible Clamp Sensor Specifications :

• Applicable model: 6305, 6315
• Conductor size: max.Ø170mm
• Rated current: AC 3000A
• Output voltage: AC 500mV / 3000A (AC 0.167mV/A)
• Accuracy:

±1.0%rdg±0.5mV (45Hz - 65Hz)
±1.5%rdg±0.5mV (40Hz - 1kHz)

• Phase shift: within ±2.0° (45Hz - 65Hz)
• within ±3.0° (40Hz - 1kHz)
• Output connector: MINI DIN 6PIN
• Output impedance: 100Ω or less
• Applicable standards: IEC 61010-1,

IEC 61010-2-032 CAT IV 300V / CAT III 600V Pollution degree 2,
IEC 61326

• Operating temperature & humidity range: -10 - 50°C, relative humidity 85% or less (no condensation)
• Weight: Approx. 200g
