Megger 210170 Insulation Resistance Testers
0.00 AED
In stock
Product Details
Brand:
Megger
Insulation Range:
0 to 20,000 MΩ
Test Voltage Range:
100, 250, 500, 1000 V DC
DC voltage Range:
0 to 600 V ac or presence of dc
AC voltage Range:
0 to 600 V ac or presence of dc
Continuity testing Range:
0- to 5000-ohm
Input Overload Protection:
300 V
Auto Discharge:
Capacitive circuits are automatically discharged when the TEST button is released following an insulation test.
Operating temperature:
14° F to 122° F (-10° C to +50° C)
Storage temperature:
4° F to 158° F (-15° C to +70° C)
Dimensions:
8.25 H x 5 W x 5 D in., 210 H x 125 W x 125 D mm
Weight:
2.2 lb (.98 kg)
Power:
Hand cranked
Display:
Analog
Short Circuit Current:
220 mA nominal on all ranges
Accuracy:
±3% of scale length

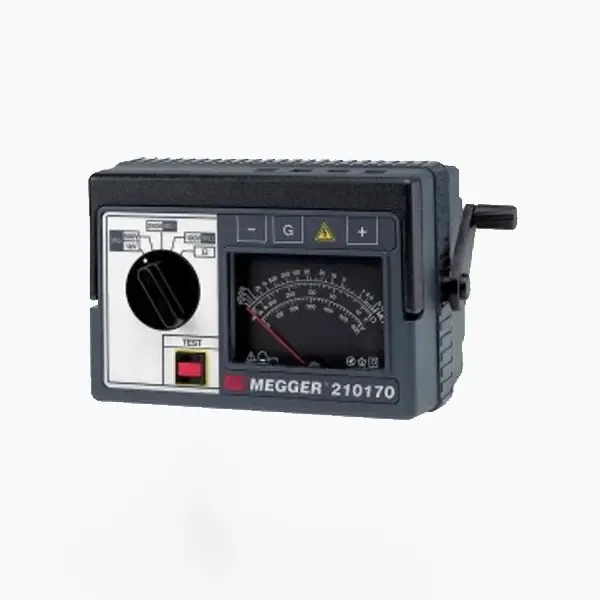

Megger 210170
The Megger 210170 Insulation Resistance Tester is a highly regarded instrument designed for testing the insulation resistance of electrical systems and equipment. This device is essential for ensuring the safety and reliability of electrical installations by measuring the integrity of insulation materials.
Key Features
- User-Friendly Operation: The Megger 210170 is designed with simplicity in mind, allowing users to perform insulation resistance tests with minimal training. Its intuitive interface and clear display facilitate quick navigation through various testing modes.
- Versatile Testing Capabilities: This tester can measure insulation resistance across a wide range of voltages, typically from 50V to 1000V. This versatility makes it suitable for testing different types of equipment, including motors, transformers, and cables.
- Automatic Test Sequences: The device features automatic test sequences that streamline the testing process. Users can initiate tests with a single button press, which helps in saving time during inspections.
- Data Storage and Analysis: The Megger 210170 can store multiple test results, allowing users to review and analyze data later. This feature is particularly useful for tracking the performance of insulation over time and for generating reports.
- Safety Features: The tester is equipped with safety features to protect both the user and the equipment being tested. It includes warnings for low battery levels and ensures that tests are conducted safely without risking electrical shock.
- Durable Design: Built to withstand tough working conditions, the Megger 210170 features a robust casing that protects it from impacts and environmental factors, making it ideal for use in various settings, including industrial and outdoor environments.
Applications
The Megger 210170 Insulation Resistance Tester is widely used in several applications:
- Electrical Maintenance: Regular insulation testing helps maintenance personnel identify potential issues before they lead to equipment failure or safety hazards.
- Installation Testing: After installation of new electrical systems, the tester verifies that insulation levels meet safety standards before putting equipment into operation.
- Preventive Maintenance Programs: Organizations often incorporate insulation testing into their preventive maintenance schedules to ensure ongoing reliability and compliance with safety regulations.
- Troubleshooting: When electrical faults occur, this tester aids technicians in diagnosing insulation problems by providing accurate resistance measurements.
In summary, the Megger 210170 Insulation Resistance Tester is a reliable tool that enhances electrical safety by ensuring the integrity of insulation materials. Its user-friendly design, versatile capabilities, and robust construction make it an essential instrument for professionals involved in electrical maintenance and testing.
Megger 210170 Specifications
| O/C Test Voltage (V dc) | Insulation Resistance Range (M?) | Resistance Range | Power Source | Voltage Range | Dimensions | Weight | |
| 210170 | 100 | 0 to 20,000 | 0 to 5000Ω (at 3 V dc) | Hand cranked | 0 to 600 V ac or presence of dc | 8.25 H x 5 W x 5 D in. | 2.2 lb (.98 kg) |
| 250 | 210 H x 125 W x 125 D mm | ||||||
| 500 | |||||||
| 1000 |
| Insulation | Accuracy |
| ±3% of scale length | |
| Test Voltage | |
| ±5% | |
| Short-circuit Current | |
| 220 mA nominal on all ranges | |
| Scale Length | |
| 3.08 in. (78 mm) | |
| Low Resistance | Accuracy: ±3% of scale length |
| Test Voltage: 3 V ±5% | |
| Short-circuit Current: 30 mA ±10% | |
| Scale Length: 3.08 in. (78 mm) | |
| Default Voltage | 0 to 600 V ac/dc accuracy ±2.5% of scale length |
| Discharge | Capacitive circuits are automatically discharged when the TEST button is released following an insulation test. |
| Temperature | Operating: 14° F to 122° F (-10° C to +50° C) |
| Storage: 4° F to 158° F (-15° C to +70° C) | |
| Humidity | Operating: 70% RH at 68° F (20° C); 50% RH at 104° F (40° C) |
| Storage | 95% RH at 95° F (35° C) |
