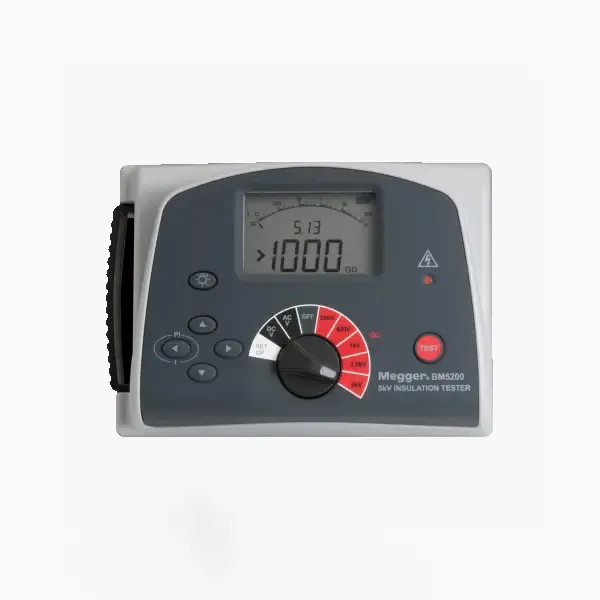

Megger BM5200 5 kV Insulation Resistance Tester
0.00 AED
In stock
Product Details
Brand:
Megger
Insulation Range:
100 kΩ to 1 TΩ
Test Voltage Range:
250 V, 500 V, 1000 V, 2500 V, 5000 V
Capacitance Range:
5 μF
Input Overload Protection:
Insulation Cat III 600 V
Operating temperature:
-20 °C to +55 °C, 90% RH (0 °C to 40 °C), 70% RH (40 °C to 55 °C)
Storage temperature:
-20 °C to +65 °C
Altitude:
2000 m
Dimensions:
220 mm x 115 mm x 163 mm
Weight:
1.45 kg
Power:
8 x LR6/AA batteries
Short Circuit Current:
1.4 mA ±0.5 mA
Megger BM5200
The Megger BM5200 5 kV Insulation Resistance Tester is a high-performance, battery-powered instrument designed for rigorous insulation testing in various electrical applications. This advanced tester is particularly suitable for maintenance and servicing of cables, transformers, switchgear, and industrial installations, making it an essential tool for electrical professionals.
Key Features
- High Voltage Testing: The BM5200 is capable of applying a test voltage of up to 5 kV, allowing for comprehensive insulation resistance testing across a wide range of equipment. This high voltage capability is crucial for assessing the integrity of insulation materials in high-power applications.
- Digital and Analog Display: The tester features both digital and analog arc displays, providing users with clear and immediate feedback on test results. This dual display enhances usability, allowing for quick interpretation of measurements.
- Multiple Testing Modes: It offers various modes, including:
- Insulation Resistance (InS) Testing
- Polarization Index (PI) Testing
- Variable Timed Test (t) Modes
- These modes allow for in-depth analysis of insulation quality and performance over time.
- Guard Terminal: The BM5200 includes a guard terminal to shunt surface leakage currents, ensuring that the measurements reflect the true insulation resistance without interference from surface contaminants.
- Safety Features: Designed with user safety in mind, the tester includes features such as a high voltage warning indicator, automatic discharge for capacitive circuits under test, and an external voltage display after insulation resistance tests. It is rated for CAT III 600 V, ensuring safe operation in various environments.
- Automatic Discharge: The device automatically discharges capacitive loads after testing, displaying the decaying voltage, which enhances safety and prevents accidental shocks.
- Durable Construction: The BM5200 is built to withstand the rigors of field use, ensuring reliability and longevity. It comes with a carrying case, test leads, and alkaline batteries, making it ready for immediate use.
Applications
- Routine Maintenance: Regular insulation testing helps prevent equipment failures and costly repairs by identifying insulation deterioration before it leads to breakdowns.
- Installation Verification: Ensuring that newly installed equipment meets specified insulation resistance standards.
- Troubleshooting: Diagnosing insulation issues in electrical systems to resolve problems effectively.
The Megger BM5200 5 kV Insulation Resistance Tester is an essential tool for electrical professionals seeking a reliable and efficient solution for high-voltage insulation testing. Its advanced features, user-friendly design, and robust construction make it suitable for a wide range of applications in the electrical industry. By integrating the BM5200 into your testing processes, you can enhance the safety and reliability of your electrical installations, ultimately contributing to improved operational efficiency and reduced downtime.
Megger BM5200 Specifications
| Insulation range | 100 kΩ to 1 TΩ |
| Nominal test voltages | 250 V, 500 V, 1000 V, 2500 V, 5000 V |
| Terminal voltage accuracy | <1000 V: 0…+10% of nominal test voltage |
| ≥1000 V: 0…+5% of nominal test voltage | |
| Insulation accuracy | Up to 1 GΩ: All ranges ±5% ±2 digits |
| Over 1 GΩ: | |
| 5000 V: ±5% ±0.04% per GΩ | |
| 2500 V: ±5% ±0.08% per GΩ | |
| 1000 V: ±5% ±0.2% per GΩ | |
| 500 V: ±5% ±0.4% per GΩ | |
| 250 V: ±5% ±0.8% per GΩ | |
| Short circuit/charge current | 1.4 mA ±0.5 mA |
| Maximum capacitance of load | 5 μF |
| Voltmeter accuracy | 3% ± 3 V |
| Frequency measurement | 45 Hz to 65 Hz |
| Frequency measurement accuracy | ±2 Hz |
| Voltmeter range | Up to 600 V a.c. or d.c. |
| Power supply | 8 x LR6/AA batteries |
| Battery life | 5 hours @ 5 kV into 100 MΩ with AA Alkaline LR6 |
| Guard | 2% error guarding 5 MΩ leakage on 100 MΩ load |
| Operating temperature range and humidity | -20 °C to +55 °C, 90% RH (0 °C to 40 °C), 70% RH (40 °C to 55 °C) |
| Storage temperature range and humidity | -20 °C to +65 °C |
| IP rating | IP40 |
| Safety protection | Insulation Cat III 600 V |
| Note | Service error with stated environmental limits is twice intrinsic error |
| EMC | The product conforms to IEC 61326 |
| Dimensions | 220 mm x 115 mm x 163 mm |
| Weight | 1.45 kg |
