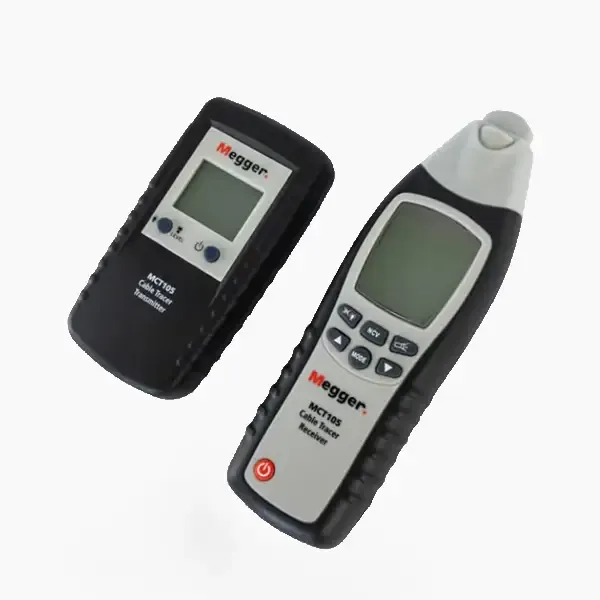

Megger MCT105 Cable Locator
+2

Megger MCT105 Cable Locator

Store / Electrical
0.00 AED
In stock
Product Details

Introduction of MCT105

The Megger MCT105 Cable Locator is a specialized device designed to precisely detect and locate underground cables and other utilities. It is widely used in utility maintenance, construction, and by professionals involved in installing or managing underground infrastructure.

The MCT 105 Megger cable detector package includes a separate transmitter and receiver. This device is designed to locate and trace wires or conductors buried in walls or underground. It can identify fuses or circuits and detect breaks or short circuits in cables. Additionally, it is capable of detecting electrical wiring in basements and locating metal water and fire pipes.

Megger MCT105 Key Features

  • Trace cables and conductors in walls
  • Works on both live and dead cables or conductors
  • Locate conductor breaks and short circuits
  • Identify fuses and circuit breakers
  • Trace conductors buried in the ground
  • Trace metal water and heating pipes
  • Visual and audible signal strength indication
  • Non-contact voltage detector (receiver)
  • Automatic or manual sensitivity adjustment
  • Built-in torch (receiver)

Megger MCT105 Specifications

FEATURE SPECIFICATION
Power Supply 2 x 9 V PP3 Battery
Operation Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -20 °C to 60 °C (4 °F to 140 °F) at <95% RH
Safety Standard IEC EN61010-1 CAT III 300 V
Output Signal 125 kHz
Voltage Range 12 – 400 V
Frequency Range 0 – 60 Hz
Display LCD display
External Voltage Detection 400 V AC/DC (max)
Over Voltage Category CAT III 300 V
Dimensions 130 mm H x 69 mm W x 32 mm D
Weight 130 g

Receiver

FEATURE SPECIFICATION
Tracing Depth Cable Locator Mode: single-pole approx. 0 – 2 m, double-pole approx. 0 – 0.5 m, Voltage detection approx. 0 – 0.4 m
Dimensions 192 mm H x 61 mm W x 37 mm D
Weight 180 g
