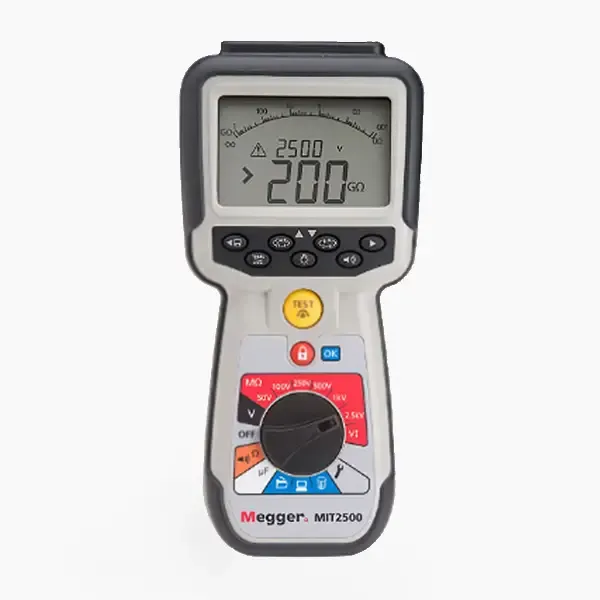

Megger MIT2500-LG1 Handheld Insulation And Continuity Tester

Megger MIT2500-LG1 Handheld Insulation And Continuity Tester

Store / Electrical
0.00 AED
In stock
Product Details

Introduction of Megger MIT2500-LG1

The MIT2500 is a high-voltage handheld insulation and continuity tester designed for a wide range of electrical testing applications. It is particularly suited for specialized tasks, especially in situations where operational voltages exceed 1000 V. This device provides fixed voltage ranges of 50 V, 100 V, 250 V, 500 V, 1000 V, and 2500 V, offering users a comprehensive set of testing options.

Additionally, it features a variable range function that allows for precise voltage selection between 50 V and 2500 V, ensuring detailed control during testing procedures.

Megger MIT2500-LG1 Key Features

  • Versatile Voltage Ranges
  • Variable Voltage Selection
  • Test Voltage Feedback Control
  • Enhanced Safety Features

Megger MIT2500-LG1 Specifications

Specification Details
Guard Terminal Performance <5% error at 500 kΩ parallel circuit resistance with 100 MΩ load
Display Range Analog: 1 GΩ full scale
Resolution 0.1 kΩ
Short Circuit/Charge Current 2 mA +0% -50% to EN61557-2 (2007) [except 2500 V]
Terminal Voltage Accuracy -0% +2% ± 2 V
Test Current Ranges from 1 mA at minimum pass value of insulation to a maximum of 2 mA
Operation Range EN61557: 0.10 MΩ to 1.0 GΩ
Leakage Current 10% ±3 digits
Display Voltage Accuracy ±3 ±2 digits ±0.5% of rated voltage
Timer Control Adjustable countdown timer from 60 seconds to 10 minutes
Dimensions 9.00 in x 4.25 in x 2.32 in (2.28 mm x 108 mm x 63 mm)
