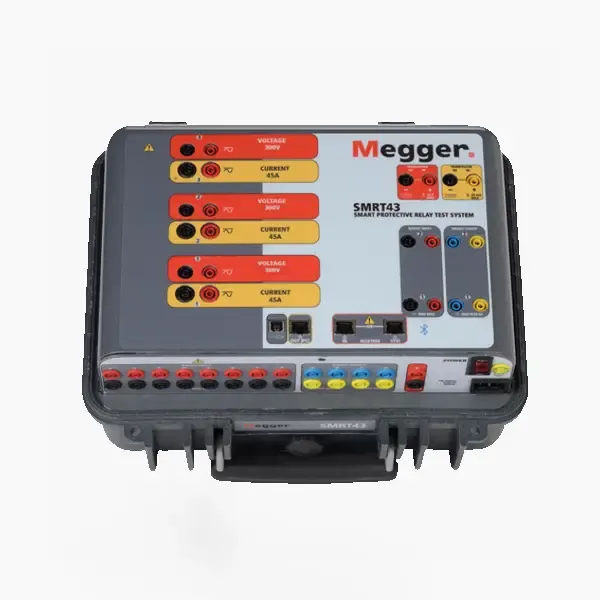

Megger SMRT43 Multi-phase Relay Tester
0.00 AED
In stock
Product Details
Brand:
Megger
Current Range:
AC: 5A, 15A, 60A, DC: 32A
Timer range:
0.0001s to 99999.9s
Current outputs:
1 to 4 relays, 300V max, Imax: 8 Amps, Response time <10ms
Voltage outputs,:
5 and 6 relays, 400V peak max, Response time <1ms
Operating Temperature:
32 to 122°F (0 to 50°C)
Storage Temperature:
-40 to 158°F (-40 to 70°C)
Dimentions:
13.25 W x 6.75 H x 10.75 D in. (337 W x 172 H x 273 D mm)
Weight:
29.35 lb (13.2 kg) for a three-phase test system
Protection:
EN 61326-2-1, EN 61000-3-2/3, FCC Subpart B of Part 15 Class A, EN 61000-4-2/3/4/5/6/8/11
Megger Smrt43
The Megger SMRT43 Multi-Phase Relay Tester is a sophisticated testing device designed for the evaluation of protective relays in electrical systems. This portable and lightweight instrument is ideal for professionals in the electrical maintenance and testing sectors, providing advanced features that enhance the reliability and accuracy of relay testing.
Key Features
- High Current Output: The SMRT43 delivers up to 30 Amps per phase, enabling effective testing of a wide range of relays, including electro-mechanical, solid-state, and microprocessor-based devices.
- Multi-Channel Capability: With four voltage channels and three current channels, the tester can perform comprehensive testing on various relay types. This configuration allows for simultaneous testing of three-phase systems, enhancing efficiency in the field.
- Smart Touch View Interface (STVI): The user-friendly STVI handheld controller features a large, high-resolution touchscreen, simplifying operation. Users can perform manual, steady-state, and dynamic tests quickly, utilizing built-in preset test routines for popular relay types.
- Dynamic and Transient Testing: The SMRT43 supports dynamic and transient testing capabilities, making it suitable for modern relay applications that require precise evaluations under varying conditions.
- Advanced Software Integration: The device can be controlled via Megger's Advanced Visual Test Software (AVTS), which is compatible with Microsoft Windows. This software provides comprehensive management of protective relay testing, allowing for detailed analysis and reporting.
- Rugged Design: Built for durability, the SMRT43 is designed to withstand the rigors of field use, ensuring reliability in demanding environments.
- Customizable Testing Options: Users can customize the testing setup by adding Voltage-Current (VIGEN) modules, allowing for tailored testing configurations based on specific application needs.
Applications
- The Megger SMRT43 is ideal for:
- Protective Relay Testing: Ensuring the operational integrity of protective relays in substations and industrial applications.
- Motor Protection Testing: Evaluating the performance of motor overload relays and other protective devices.
- Commissioning and Maintenance: Facilitating the commissioning of new installations and conducting maintenance checks on existing systems.
The Megger SMRT43 Multi-Phase Relay Tester represents a powerful solution for professionals tasked with ensuring the reliability and safety of electrical systems. Its combination of high current output, advanced testing capabilities, and user-friendly interface makes it an essential tool for effective relay testing. By integrating the SMRT43 into your testing processes, you can enhance the performance and safety of your electrical installations.
Megger Smrt43 Specifications
| Input Power |
90 to 264 Volts AC, 1ø, 50/60 Hz, 1800 VA. |
| Parameter | Range/Details | Power | Max I |
| AC/DC AUX Voltage Channel | |||
| - Ranges (AC) | 30 Volts, 150 Volts | 100 VA, 100 VA | 3.33 A, 0.67 A |
| - Ranges (DC) | 30 Volts, 250 Volts | 100 Watts, 100 Watts | 3.33 A, 0.4 A |
| Phase Angle | 0.00 to 359.99 degrees (Clockwise, Counter-Clockwise, ±180.00 degrees) | |
| - Accuracy | ±0.02° typical, ±0.25° max at 50/60 Hz | |
| Frequency | 0.001 to 1000.000 Hz | |
| - Accuracy | ±2.5 ppm typical, ±5.0 ppm max at 50/60 Hz, 25°C to 50°C | |
| Metering | AC/DC Amperes, AC/DC Volts, Frequency, Phase, Power Factor, etc. | |
| AC Voltage Amplitude | 30V, 150V, 300V | RMS |
| - Accuracy | ±0.05% reading, ±0.15% reading ±0.05% range max, 0.25% max | |
| AC Current Amplitude | 5A, 15A, 60A | RMS |
| - Accuracy | ±0.05% reading, ±0.02% typical | |
| DC Current Amplitude | 32A | |
| - Accuracy | ±0.05% reading, ±0.02% typical | |
| Convertibility to AC Current | 5A, 15A | RMS |
| Total Harmonic Distortion | <0.1% typical, 2% max at 50/60 Hz | |
| Timer | 0.0001s to 99999.9s | |
| Binary Input | Up to 10 inputs | 300V AC/DC |
| Binary Output Relays | Up to 6 independent, galvanically isolated relays | |
| High Current Output Relays | 1 to 4 relays, 300V max, Imax: 8 Amps, Response time <10ms | 2000 VA max |
| High Speed Output Relays | 5 and 6 relays, 400V peak max, Response time <1ms |
| Environmental | |
| Operating Temperature: | 32 to 122° F (0 to 50° C) |
| Storage Temperature: | -40 to 158° F (-40 to 70° C) |
| Relative Humidity: | 5 - 95% RH, Non-condensing |
| Environmental Specifications | |
| Parameter | Details |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Relative Humidity | 5 - 95% RH, Non-condensing |
| Conformance Standards | |
| Parameter | Standards |
| Safety | EN 61010-1 |
| Shock | EN/IEC 60068-2-27 |
| Vibration | EN/IEC 68-2-6 |
| Transit Drop | ISTA 1A |
| Free Fall | EN/IEC 60068-2-32 |
| Drop / Topple | EN/IEC 60068-2-31 |
| Electromagnetic Compatibility | |
| Parameter | Standards |
| Emissions | EN 61326-2-1, EN 61000-3-2/3, FCC Subpart B of Part 15 Class A |
| Immunity | EN 61000-4-2/3/4/5/6/8/11 |
| Weight and Dimensions | |
| Parameter | Details |
| Weight | 29.35 lb (13.2 kg) for a three-phase test system |
| Dimensions | 13.25 W x 6.75 H x 10.75 D in. (337 W x 172 H x 273 D mm) |
