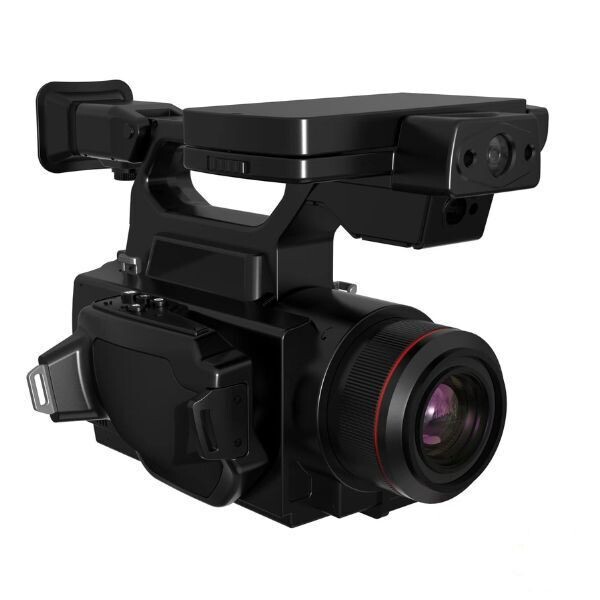

SATIR V88-T Ultimate Gas Detection Thermal Camera
0.00 AED
In stock
Product Details
Brand:
SATIR
Temperature range:
-20°C ~ + 350°C
Capacity:
64GB TF Card
Color Palette:
11 Palettes (Normal / Gas mode (5 levels)
Image display:
Built-in 5.5 inch Capacitive Display
Image file format:
JPG format with temperature data (infrared)/ Standard JPG Format (Visible)
Video Recording:
Yes
Field of view:
24.5°x 20°
Focus:
Auto/Manual
Infrared Resolution:
320x256
Spectral range:
3.2 ~3.5 μm
Thermal sensitivity:
0.015°C@30°C
Size (H x W x L) :
311mmx196mmx195mm
Weight:
≤3kg
Operating temperature:
-20°C~50°C
Storage temperature:
-40°C to +70°C
Power:
Li-ion Battery, 8.4V, 6800mAh
SATIR V88T Ultimate Gas Detection Thermal Camera
The SATIR V88-T Gas Detection Thermal Camera is an innovative device designed to detect gas emissions using thermal imaging technology. SATIR, a leading manufacturer of thermal imaging systems, has developed this advanced camera to cater to the specific needs of industrial, commercial, and governmental applications.
Advanced Gas Detection Technology
The SATIR V88-T Gas Detection Thermal Camera is equipped with advanced gas detection technology, allowing it to identify and visualize gas emissions through thermal imaging. This capability makes it an invaluable tool for various industries, including oil and gas, chemical, and environmental monitoring.
High-Performance Thermal Imaging
Built on SATIR's expertise in thermal imaging, the V88-T camera offers high-performance thermal imaging capabilities, enabling the accurate detection and visualization of gas leaks and emissions in diverse operational environments.
Wide Range of Applications
The V88-T camera is well-suited for a wide range of industrial, commercial, and governmental thermal imaging activities, including gas leak detection, environmental monitoring, safety inspections, and preventive maintenance. Its versatility and precision make it an essential asset for professionals in various fields.
The SATIR V88-T Gas Detection Thermal Camera represents a significant advancement in the field of gas detection technology, leveraging the power of thermal imaging to provide accurate and reliable gas emission detection. With its advanced features and wide-ranging applications, the V88-T is set to make a substantial impact in industrial, commercial, and governmental sectors, further solidifying SATIR's position as a leader in thermal imaging innovation.
SATIR V88 T Specifications:
Image Performance:
- Detector Resolution: 320x256
- Detector Type: Cooled Hot Class II Superlattice Detector
- Thermal Sensitivity (N.E.T.D): 0.015°C@30°C
- Digital Zoom: 1X-8X
- Responsivity: 0.001 ml/s
- Spatial Resolution: 1.3mrad
- FOV: 24.5°x 20°
- Frame Frequency: 25Hz
- Focus Mechanism: Auto/Manual
- Spectral Range: 3.2 ~3.5 μm
- Start -up Time: ≤5min
Image Presentation:
- Digital Camera: 16MP Digital Camera
- Output: HDMI
- External Display: Built-in 5.5 inch Capacitive Display
- View Finder: Built-in 0.49 inch OLED 1920x1080
- Palette: 11 Palettes (Normal / Gas mode (5 levels)
Temperature Measurement:
- Temperature Range: -20°C ~ + 350°C
- Accuracy: ±1°C or ±1%
- Analysis: Automatic Tracking max/ with temperature data
- Emissivity Correction: Variable from 0.01 to 1.0
Data Storage:
- Type: 64GB TF Card
- Video Storage: AV Recording of 16 bit fully radiometric IR-video to SD-card
- Video Format: IRV: 16-bit full-motion infrared video stream containing all temperature data
- Standard video format: 16-bit full-motion infrared video stream without temperature data
- Image Format: JPG format with temperature data (infrared)/ Standard JPG Format (Visible)
Power System:
- Battery Type: Li-ion Battery, 8.4V, 6800mAh
- Battery Life: ≥3hours (Room Temperature)
- Charging System: 2 Bay Intelligent Charger (Optional: External Power Cable)
Physical Characteristics:
- Weight (includes battery): ≤3kg
- Dimensions: 311mmx196mmx195mm
Environmental Specification:
- Storage Temperature Range: -40°C to +70°C
- Operating Temperature Range: -20°C~50°C
- Humidity: 10%~95%, non-condensing
- Encapsulation: IP54
- Shock: Shock 30G
- Vibration: 2.5G
Additional Features:
- Optional Lens: 6°, 11°, 48°
- Laser Pointer: Class 2
- Laser Range: 10-1200 metres
- GNSS: GPS/GLONASS/BeiDou
- Wi-Fi: Yes
- Bluetooth: Yes
- 4G: Yes
- Audio: MIC, SPK
Gas Detection Type:
- Gas Detected: Benzene, Ethanol, Ethylbenzene , Heptane, Hexane , Isoprene, Methanol, MEK, MIBK, Octane, Pentane,1-Pentene, Toluene, Xylene, Butane, Ethane, Methane, Propane, Ethylene, Propylene
