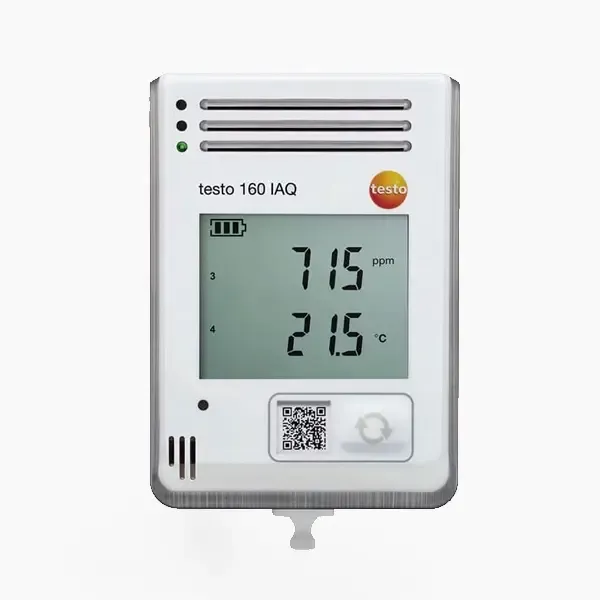

Testo 160 IAQ WiFi Data Logger

Introduction of Testo 160 IAQ

Order-Nr. 0572 2014

Indoor air quality plays a crucial role in people's health and well-being, as poor air quality can lead to fatigue, decreased concentration, and discomfort. The Testo 160 IAQ WiFi data logger offers reliable indoor air quality monitoring, making it an excellent choice for environments like schools, nurseries, conference rooms, open-plan offices, auditoriums, and museums—anywhere large groups of people gather.

The user-friendly Testo 160 IAQ WiFi data logger is designed to monitor indoor air quality effectively. Equipped with sensors for temperature, humidity, CO2, and atmospheric pressure, it accurately assesses the ambient conditions in each room.

The data logger features colored LEDs that indicate air quality using a traffic light system, allowing for easy interpretation. CO2 limit values can be customized according to specific needs. To extend battery life, the LEDs are switched off when the device operates in battery mode.

Testo 160 IAQ Key Features

• Ideal for monitoring indoor air quality (IAQ)
• Blends in perfectly with the surroundings thanks to an optional, customizable deco-cover
• Simple to install, integrate and operate – particularly user-friendly with air quality displayed in the form of a traffic light system
• Perfectly networked: data storage in the Testo Cloud, real-time alarm via email or SMS (optional in conjunction with an Advanced licence)

Testo 160 IAQ Specifications

Parameter	Specification
Weight	269 g
Dimensions	117 x 82 x 32 mm (LxWxH)
Operating temperature	0 to +50 °C
Protection class	IP20
Battery life	1 year
Power supply	4 x AA batteries 1.5 V, alternatively mains unit via USB connection
Memory	32,000 Measuring values / Sum of all channels
Storage temperature	0 to +50 °C
Dimension display	55 x 42 mm
Measuring range Humidity	0 to 100 %RH (non-condensing)
Measuring range Absolute Pressure	600 to 1100 mbar
Measuring range Ambient CO₂	0 to 5000 ppm
Measuring range Temperature	0 to +50 °C
