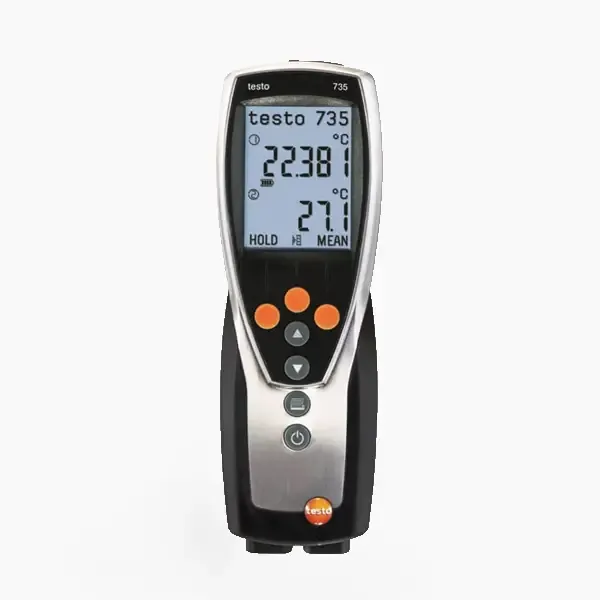

Testo 735-1 Temperature measuring instrument
1,770.00 AED
In stock
Product Details
Brand:
Testo
Temperature Measuring Range:
Depends on Thermocouple type, generally -200 to +1760 °C
Accuracy:
Depends on Thermocouple type
Resolution:
Depends on Thermocouple type
Measuring Units:
°C; °F
Sensor Type:
TC Type S (Pt10Rh-Pt), TC Type K (NiCr-Ni), TC Type T (Cu-CuNi), TC Type J (Fe-CuNi), Pt100
Interface:
USB
Dimension:
220 x 74 x 46 mm
Weight:
428 g
Power Supply:
Alkali manganese, mignon, type AA
Operating temperature:
-20 to +50 °C
Storage temperature:
-30 to +70 °C
Product/housing material:
ABS / TPE / Metal
Protection class:
IP65
Standards:
EN 13485
Testo 735-1
The Testo 735-1 is a powerful and flexible temperature measuring instrument designed to handle a wide range of temperature measurement tasks. With its ability to measure surface, air, and core temperatures simultaneously in up to six locations, the Testo 735-1 is an indispensable tool for professionals in various industries.
At the heart of the Testo 735-1 is its use of Pt100 technology, which enables highly accurate temperature measurements. The optional high-precision Pt100 immersion/penetration probe can achieve system accuracy of up to 0.05°C with a resolution of 0.001°C, making it suitable for use as a working standard for calibrating stationary temperature probes.
The Testo 735-1 offers flexibility in probe connections, with one input for attaching high-precision Pt100 probes and two inputs for fast thermocouple probes of the K, T, J, and S types. This allows users to choose the most appropriate probe for their specific application, ensuring optimal performance.
The Testo 735-1 can be equipped with an optional radio module, enabling wireless measurement data transfer from up to three additional radio temperature probes. This feature helps avoid cable damage or handling hindrances, making the instrument well-suited for use in tight spaces or hard-to-reach areas.
User-Friendly Features
The Testo 735-1 offers several user-friendly features, such as:
- Display of min./max. and mean values
- Calculation of differential temperature (delta T) when two probes are attached
- Audible alarm when limit values are exceeded or undershot
- Backlit display for easy reading in dark environments
- Waterproof design (IP65) for use in various conditions
Compliance and Certifications
The Testo 735-1 has been tested in accordance with EN 13485 and is HACCP-compliant, with international HACCP certification. This ensures that the instrument meets the necessary standards for use in the food industry and other regulated environments.
In conclusion, the Testo 735-1 is a versatile and accurate temperature measuring instrument that combines advanced features, wireless capabilities, and user-friendly design. Its ability to handle a wide range of temperature measurement tasks makes it a valuable tool for professionals in various industries, from food processing to HVAC.
Testo 735-1 Specifications
| Temperature - Pt100 | |
| Measuring range
|
-200 to +800 °C
|
| Accuracy | ±0.2 % of mv (Remaining Range)
|
| ±0.2 °C (-100 to +199.9 °C)
|
|
| Resolution | 0.05 °C
|
| Temperature - TC Type K (NiCr-Ni) | |
| Measuring range
|
-200 to +1370 °C
|
| Accuracy | ±0.3 °C (-60 to +60 °C)
|
| ±(0.2 °C + 0.3 % of mv) (Remaining Range)
|
|
| Resolution | 0.1 °C
|
| Temperature - TC Type T (Cu-CuNi) | |
| Measuring range
|
-200 to +400 °C
|
| Accuracy | ±0.3 °C (-60 to +60 °C)
|
| ±(0.2 °C + 0.3 % of mv) (Remaining Range)
|
|
| Resolution | 0.1 °C
|
| Temperature - TC Type J (Fe-CuNi) | |
| Measuring range
|
-200 to +1000 °C
|
| Accuracy | ±0.3 °C (-60 to +60 °C)
|
| ±(0.2 °C + 0.3 % of mv) (Remaining Range)
|
|
| Resolution | 0.1 °C
|
| Temperature - TC Type S (Pt10Rh-Pt) | |
| Measuring range
|
0 to +1760 °C
|
| Accuracy | ±1 °C (0 to +1760 °C)
|
| Resolution | 1 °C
|
| General technical data | |
| Dimensions
|
220 x 74 x 46 mm
|
| Operating temperature | -20 to +50 °C
|
| Housing | ABS / TPE / Metal
|
| Protection class | IP65
|
| Standards | EN 13485
|
| Battery type | Alkali manganese, mignon, type AA
|
| Storage temperature | -30 to +70 °C
|
| Weight | 428 g
|
