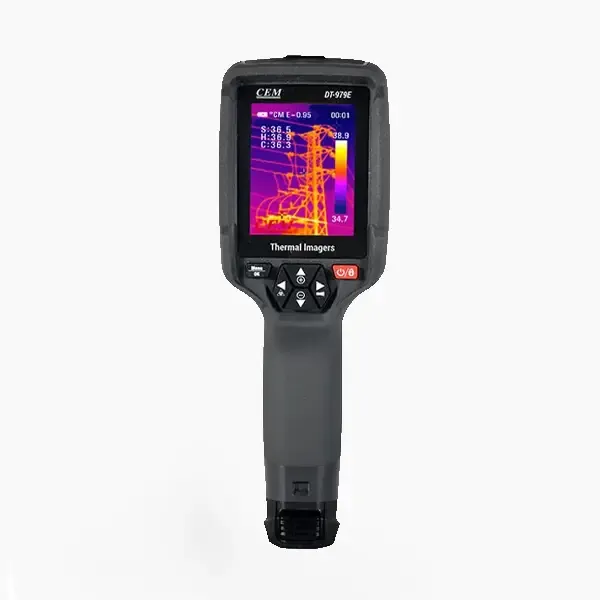

CEM DT-979E Thermal Camera

CEM DT-979E Thermal Camera

المتجر / Inspection Tools
0.00 AED
متوفر في المتجر
تفاصيل المنتج
Brand: CEM
Temperature range: -20℃ to 400℃ (-4℉ to 752℉)
Detection range: -20℃ to 400℃ (-4℉ to 752℉)
Capacity: 4Gbytes eMMC or 8GB SD card
Color Palette: IRON,RainBow,Grey, GreyInverted,Brown, Blue-red, hot-cold, Feather
Image file format: Standard JPEG, including measurement data, on memory card > 1000 pictures
Image mode: IR/visual images; simultaneous storage of IR and visual images
screen size: 240x320 pixels
Video Recording: Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes
Field of view: 50x38°
Focal length: 8-14um
Focus: Focus Mode
Image frequency: 25Hz
Infrared Resolution: 120x90
Spectral range: Uncooled microbolometer /8-14um
Operating temperature: -20℃ to 50℃ (-4℉ to 122℉)
Storage temperature: -40℃ to 70℃ (-40℉ to 158℉)
Power: Li-ion battery, 4 hours operating time

CEM DT 979E

The CEM DT-979E Thermal Camera is a versatile and advanced thermal imaging device designed for a wide range of applications, including electrical inspections, building diagnostics, HVAC assessments, and industrial monitoring. This thermal camera provides users with the ability to visualize temperature differences and detect issues that may not be visible to the naked eye.

Key Features

  • Thermal Resolution: The DT-979E features a thermal resolution of 120 x 90 pixels, which allows for clear and detailed thermal images. This resolution is sufficient for identifying temperature anomalies and conducting thorough inspections.
  • Wide Temperature Range: The device can measure temperatures from -20°C to 400°C (-4°F to 752°F), making it suitable for various industrial and environmental applications. This broad range enables users to monitor both low and high-temperature scenarios effectively.
  • Field of View: With a field of view of 50° x 38°, the DT-979E can cover a significant area in its thermal imaging, allowing users to capture more data in a single scan.
  • Image Frequency: The camera operates at an image frequency of 25 Hz, providing smooth thermal video output which is essential for dynamic monitoring situations.
  • Display: The DT-979E is equipped with a 2.8-inch TFT LCD display with a resolution of 240 x 320 pixels, ensuring that users can easily view and analyze thermal images on the device itself.
  • Focus Mode: The camera features a focus-free design, simplifying operation by eliminating the need for manual focusing during inspections.
  • Automatic Hot/Cold Detection: The device includes automatic hot or cold markers that help users quickly identify temperature extremes within the captured images.
  • Data Storage and Connectivity: Images can be stored in BMP format along with measurement data. The DT-979E also features Wi-Fi connectivity for easy data transfer and communication with other devices.

Advantages

The CEM DT-979E Thermal Camera offers several significant advantages:
  • Enhanced Inspection Capabilities: With its ability to visualize temperature differences, the camera helps identify issues such as overheating components, insulation failures, and moisture intrusion.
  • Versatile Applications: Suitable for various industries including electrical, mechanical, building maintenance, and HVAC, where accurate thermal imaging is crucial.
  • User-Friendly Operation: The intuitive interface and clear display ensure that users can operate the device with minimal training.
In summary, the CEM DT-979E Thermal Camera is an essential tool for professionals seeking reliable thermal imaging solutions. Its combination of high resolution, wide temperature range, user-friendly features, and efficient data management capabilities makes it an invaluable asset in maintaining safety and efficiency across various applications.

CEM DT-979E Specifications

Specifications 979A 979B 979D 979E 979F 979G
Imaging and Optical Data
Field of View 21x 21° 41.5x31.1° 50x38° 32x24° 50x38° 50x38° 42x 32°
Spatial Resolution 4.53mrad 1.89mrad 5.4mrad */3.3mrad 7.3mrad 7.3mrad 2.6mrad
NETD <0.1℃@30℃ * * * * * *
(80℉)/100mK
Image Frequency 50Hz 25Hz 50Hz 25Hz 25Hz 25Hz 25Hz
Focus Mode Focus Mode * * * * * *
Focal Plane Array Uncooled microbolometer * * * * * *
(FPA) Spectral /8-14um
Range
IR Resolution 384x288 256x192 160x120 120x90 96x96 160x120
Image Presentation
Display 2.8"TFT LCD, * * * * * *
240x320 pixels
Color Palettes IRON,RainBow,Grey, GreyInverted,Brown, Blue-red, hot-cold, Feather * * * * * *
Measurement
Object -20℃ to 400℃ * * * * * *
Temperature (-4℉ to 752℉)
Range
Accuracy ±2℃(±3.6℉) or * * * * * *
±2% of reading
Measurement Analysis
Spotmeter Center Spot * * * * * *
Automatic Hot Auto hot or cold markers * * * * * *
/Cold Detection
Emissivity Correction 8 pre-define level and Variable from 0.01 to 1.0 * * * * * *
Storage media 4Gbytes eMMC or 8GB SD card * * * * * *
Video storage format Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes * * * * * *
Image storage format Standard JPEG, including measurement data, on memory card > 1000 pictures * * * * * *
Storage mode IR/visual images; simultaneous storage of IR and visual images * * * * * *
Power System
Battery Li-ion battery, 4 hours operating time * * * * * *
Input DC 5V * * * * * *
Charging System In camera(AC adapter) * * * * * *
Power Management Automatic shutdown * * * * * *
Environmental Data
Operting -20℃ to 50℃ * * * * * *
Temperature (-4℉ to 122℉)
Range
Storage -40℃ to 70℃ * * * * * *
Temperature (-40℉ to 158℉)
Range
Humidity 10% to 90% * * * * * *
(operating
and storage)
Drop test/ 2m/ 2M pixel * * * * * *
Digitl camer
