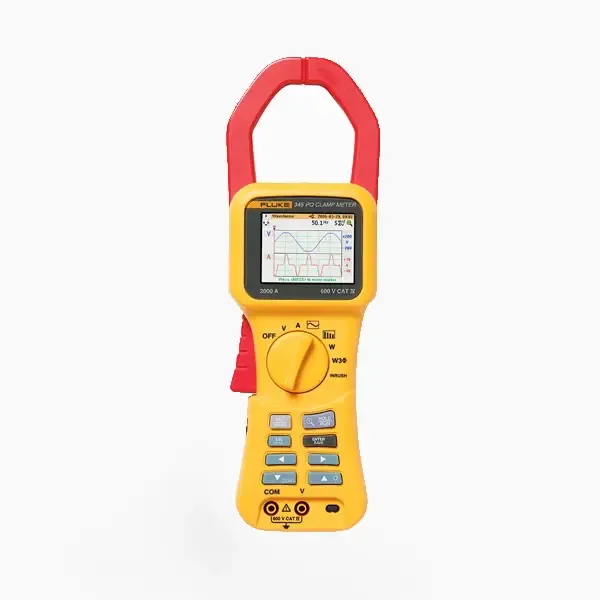

Fluke 345 Power Quality Clamp Meter
Fluke 345 Power Quality Clamp Meter
The Fluke 345 is more than just an electric power meter. It combines the functionalities of a clamp meter, oscilloscope, data logger, and digital power meter into a single convenient device. This makes the Fluke 345 perfect for working with variable frequency motor drives, high-efficiency lighting, and other loads that utilize switching electronics.
The versatile Fluke 345 boasts features like a bright color display for harmonic spectrum analysis, a low-pass filter to eliminate high-frequency noise, and a high EMC immunity design, making it ideal for troubleshooting power quality in switching loads. Its internal memory allows for long-term power quality logging, enabling trend analysis and identification of intermittent issues. Furthermore, the Hall Effect clamp meter design allows for DC current measurement without breaking the circuit.
Fluke 345 Key Features
- Combines the functions of a power analyzer, power quality logger, scope, data logger, and clamp meter in one handy tool
- Measures AC current to 1400 A RMS and DC current to 2000 A without breaking the circuit
- Carries the highest safety rating: 600 V CAT IV rated for use at the service entrance
Fluke 345 Specifications
| Specifications | ||
| Display | Color transmissive LCD 320 x 240 pixels (70 mm diagonal) with 2 level backlight | |
| Power supply | Battery type 1.5 V Alkaline AA MN 1500 or IEC LR6 x 6 | |
| Battery life typically | > 10 hours (backlight on full) > 12 hours (backlight reduced) |
|
| Battery eliminator | Input | 110/230 V 50/60 Hz |
| Output | 15 VDC, 300 mA | |
| Ambient conditions (for indoor use only) | ||
| Reference conditions | All accuracies stated at 23°C ±1°C (73.4°F ±1.8°F) | |
| Operating temperature | 0°C to 50°C (32°F to 122°F) | |
| Temperature coefficient of current | ≤ ±0.15% of rdg per °C | |
| Temperature coefficient of voltage | ≤ ±0.15% of rdg per °C | |
| Maximum relative humidity | 80% for temperatures up to 31°C (87°F) decreasing linearly to 50% relative humidity at 40°C (104°F) | |
| Maximum operating altitude | 2000 m | |
| Electrical safety | ||
| Maximum safe working voltages | Safety IEC 61010-1 600 V CAT IV double or reinforced insulation, pollution degree 2 Protection IP40; EN60529 |
|
| Current measurement | 600 VAC rms or DC between uninsulated conductor and ground | |
| Voltage measurement | 600 VAC rms or DC between either input terminal and ground, or 825 V between energized phase voltages (delta power config.) | |
| EMC | ||
| Emission | IEC/EN 61326-1:1997 A | |
| Immunity | IEC/EN 61326-1:1997 Annex C Performance Criterion B | |
| Mechanical | ||
| Dimensions (L x W x D) | 300 x 98 x 52 mm (12 x 3.75 x 2 in) | |
| Weight including batteries | 820 g (1.8 lb) | |
| Jaw opening | 60 mm | |
| Jaw capacity | 58 mm diameter | |
| Cleaning | The unit can be cleaned with an Isopropanol impregnated cloth. Do not use abrasives or other solvents. | |
