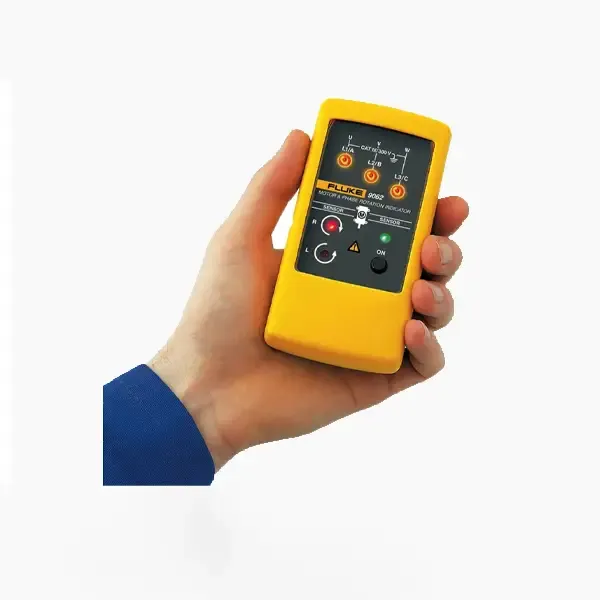

Fluke 9062 Motor and Phase Rotation Indicator
+3
+2

Fluke 9062 Motor and Phase Rotation Indicator

المتجر / Electrical
0.00 AED
متوفر في المتجر
تفاصيل المنتج
UPC: 095969291385
Brand: Fluke

Fluke 9062 Motor and Phase Rotation Indicator

The Fluke 9062 offers a distinct feature of rotary field and motor rotation indication without the need for direct contact. Specifically designed for commercial and industrial settings, this device swiftly indicates 3-phase rotation using the provided test leads.
It can also determine motor rotation for synchronous and asynchronous 3-phase motors. The contact-less detection feature is particularly advantageous for motors with concealed shafts. The test probes included have an adjustable clamping range, ensuring safe contact, even in industrial sockets.

For more details about the Fluke 9062 price be in touch with our experts.

Fluke 9062 Key Features

  • 3 phase indication
  • Indication of phase rotation
  • Indication of motor rotation direction
  • Contact free determination of the rotation direction of running motors

Fluke 9062 Phase rotation tester Specifications

Technical specifications
Voltage range Up to 400 V
Phase display 120-400 V AC
Frequency range 2-400 Hz
Operating timer Continuous
Environmental specifications
Operating temperature 0 °C to 40 °C
Operating altitude Up to 2000m
Humidity (without condensation) 15% to 80%
Dust/water resistance IP 40
Safety specifications
Electrical safety EN 61010,
EN 61557-7
Overvoltage category CAT III, 300 V
Mechanical and general specifications
Size 124 x 61 x 27 mm
Weight 1 x 9 V
Batteries 1 x 9 V
