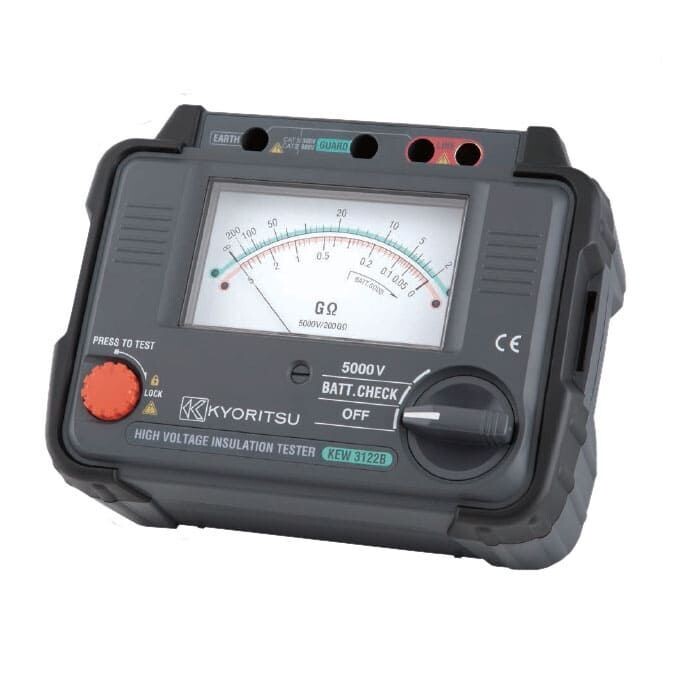

HIGH VOLTAGE INSULATION TESTER KYORITSU KEW 3122B

HIGH VOLTAGE INSULATION TESTER KYORITSU KEW 3122B

The Kyoritsu KEW 3122B High Voltage Insulation Tester is an advanced instrument designed for professionals engaged in the testing and maintenance of high-voltage electrical systems. With precision and safety features, this tester plays a crucial role in assessing insulation integrity, ensuring the reliability and safety of electrical installations.

The Kyoritsu KEW 3122B High Voltage Insulation Tester is a dependable tool for professionals engaged in high-voltage electrical testing. Its precise measurements, user-friendly design, and safety features make it an indispensable instrument for ensuring the integrity of insulation in critical electrical systems.

HIGH VOLTAGE INSULATION TESTER KYORITSU KEW 3122B Applications :

Power Generation and Distribution:

• Ideal for testing insulation resistance in high-voltage power generation and distribution systems to ensure reliability and prevent electrical failures.

Industrial Equipment:

• Suitable for assessing insulation integrity in high-voltage industrial equipment, contributing to efficient and safe operation.

Transformer Testing:

• Crucial for evaluating the insulation of transformers, identifying potential issues before they lead to malfunctions or failures.

Electrical Maintenance:

• Essential for routine maintenance and troubleshooting of high-voltage electrical installations to ensure ongoing reliability.

HIGH VOLTAGE INSULATION TESTER KYORITSU KEW 3122B Key Features :

High Voltage Testing Capability:

• The KEW 3122B is capable of applying high-voltage tests to assess the insulation resistance of electrical systems. This is essential for identifying potential weaknesses and ensuring the safety of high-voltage installations.

Wide Insulation Resistance Measurement Range:

• With a wide insulation resistance measurement range, this tester accommodates various types of electrical equipment and installations. Its versatility makes it suitable for diverse applications in high-voltage environments.

Multi-Test Voltage Levels:

• Featuring multiple test voltage levels, the KEW 3122B allows users to perform insulation tests at different voltages. This flexibility is crucial for assessing insulation resistance under varying conditions.

User-Friendly Interface:

• The tester is equipped with a user-friendly interface, including a clear display and intuitive controls. This ensures ease of operation, making it accessible to technicians and engineers with different levels of expertise.

Automatic Discharge Function:

• After completing a test, the automatic discharge function ensures the safe discharge of residual voltage, minimizing the risk to the operator and the equipment being tested.

Data Logging and Storage:

• The KEW 3122B may include data logging capabilities, allowing users to store and retrieve test results. This feature facilitates record-keeping and trend analysis over time.

Safety Compliance:

• Designed with safety in mind, the tester complies with relevant safety standards, providing peace of mind during high-voltage testing operations.

HIGH VOLTAGE INSULATION TESTER KYORITSU KEW 3122B Specifications :

• Test voltage : 5000V
• Measuring ranges :5GΩ/200GΩ (Auto-ranging)
• Accuracy : 0.2 - 100GΩ: ±5%rdg,0 - 0.2GΩ, 100GΩ - ∞:±10%rdg or 0.5% of scale length

General

• Applicable standards : IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V
• Pollution degree : 2, IEC 61010-031, IEC 61326-1, 2-2
• Power source: DC12V : LR14/R14 × 8pcs
• Dimensions : 177 (L) × 226 (W) × 100 (D) mm,300 (L) × 315 (W) × 125 (D) mm (Hard case)

• Weight : 1.7kg approx
• Measuring ranges:5GΩ/200GΩ (Auto-ranging)

• Accuracy:0.2 – 100GΩ : ±5% rdg,0 – 0.2GΩ, 100GΩ – ∞ : ±10% rdg or 0.5% of scale length
• Applicable standards: IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V, Pollution degree2, IEC 61010-031, IEC 61326-1, 2-2
• Power source: DC12V : LR14/R14 x 8
