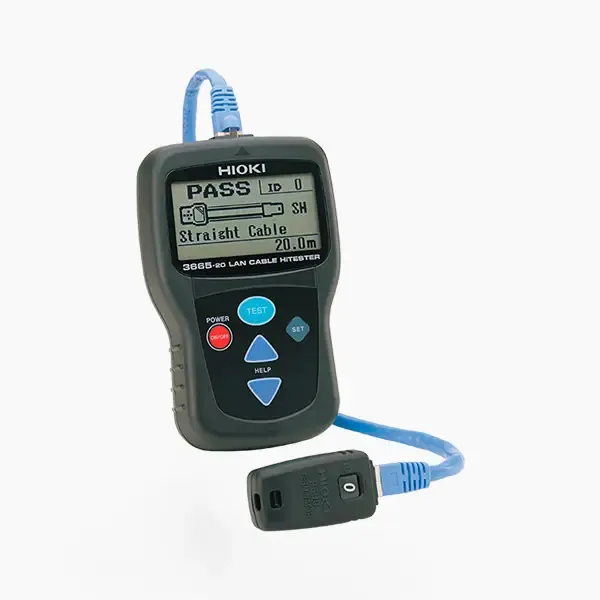

Hioki 3665 Lan Cable HiTester
0.00 AED
متوفر في المتجر
تفاصيل المنتج
Introduction of Hioki 3665
The Hioki 3665 is a portable LAN cable tester designed for easy wire map testing, cable length measurement, and twisted-pair cable identification. It is particularly useful for verifying connections after connector installation on cables.
The device supports optional terminators, allowing for straightforward identification of multiple cables. This feature makes the LAN cable tester especially handy for diagnosing faults caused by open or short circuits in cables within active networks.
Hioki 3665 Key Features
- Wire map check : Detect split pairs with wiring check
- Cable length : Get NVP-Enhanced measurement accuracy
- Direction check : Identify up to 21 cable destinations
Hioki 3665 Specifications
| Measurable cable | Twisted-pair cable, characteristic impedance: 100 Ω, shielded and unshielded, CAT 3, 4, 5, 5e, 6 and 6A | |||||
|---|---|---|---|---|---|---|
| Compatible connectors | RJ-45 plugs | |||||
| Wire map test | Detectable errors: open, short, reversed, transposed, split pairs and other incorrect wiring (Wiring condition and shielding can be confirmed using the Terminator 9690) |
|||||
| Cable length measurement | Measurable lengths: 2 m to 300 m (6.6 ft to 984 ft) Measurement accuracy: ± 4 % rdg. ± 1 m (3.3 ft)(condition of regulation: single wire) Display resolution: 0.1 m (0.3 ft) |
|||||
| Direction measurement | Up to 21 cables can be identified using the supplied Terminator 9690 and optional Models 9690-01 to 9690-04 | |||||
| Power supply | LR6 (AA) alkaline battery ×2, 1.4 VA max., Continuous use : 50 hr (at measurement interval of 1 minute) | |||||
| Dimensions and mass | 85 mm (3.35 in)W × 130 mm (5.12 in)H × 33 mm (1.30 in)D, 160 g (5.6 oz) (without batteries) | |||||
| Included accessories | Terminator 9690 ×1, Carrying case ×1, LR6 (AA) alkaline battery ×2, Instruction manual ×1 | |||||
