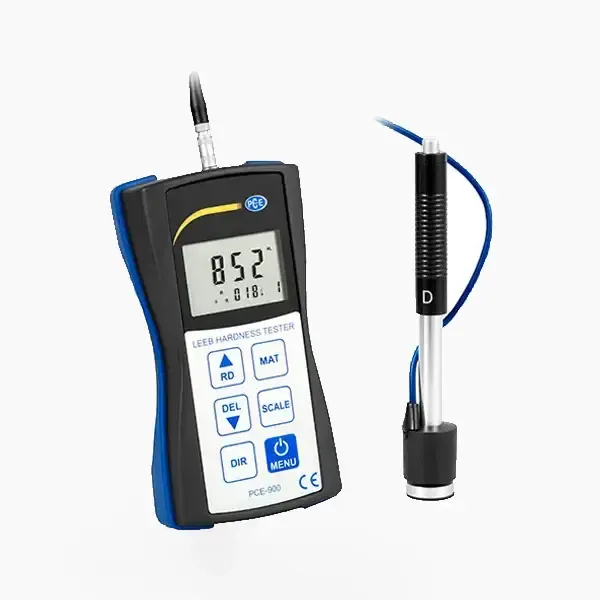

PCE-900 Metal Hardness Tester
PCE-900 Metal Hardness Tester
The Leeb Hardness Tester PCE-900 measures the hardness of nine different metals utilizing the Leeb rebound method. In this process, a firing pin rebounds off a metallic surface, and the intensity of the rebound indicates the material's hardness. The PCE-900 can measure metal hardness across six different scales, including Rockwell, Vickers, Leeb, Brinell, and Shore. Within the Rockwell scale, it differentiates between Rockwell B and C measurements.
The Leeb hardness tester PCE-900 includes a standard type D impact probe, suitable for various measurements. With the optional software, measured values can be transmitted live to a PC, making the PCE-900 an essential tool for material inspection in goods control.
PCE-900 Key Features
- Hardness test by the rebound method
- 9 material presets
- Easy to handle
- Data interface
- Six different hardness scales
PCE-900 Specifications
| Measuring range | 200 ... 900 HL |
| Measuring accuracy | ± 0.8% at HLD=900 |
| Materials | 9 common material presets |
| Hardness scales | Leeb: HL |
| Rockwell C: HRC | |
| Rockwell B: HRB | |
| Brinell: HB | |
| Vickers: HV | |
| Shore: HSD | |
| Display | 12.5 mm / 0.5" LCD with backlight |
| Impact probe | Type D |
| Memory | 50 data sets |
| Interface | RS-232 |
| Power supply | 4 x 1.5V AAA batteries |
| Environmental conditions | Operating temperature: -10 ... 50°C / 14 ... 122°F |
| Storage temperature: -30 ... 60°C / -22 ... 140°F | |
| Relative humidity: < 90% | |
| Dimensions | 142 x 77 x 40 mm / 5.59 x 3.03 x 1.58 in |
| Weight | Device weight: ca. 130 g / < 1 lb |
| Probe weight: 75 g / < 1 lb | |
| Cable length | ca. 1.2 m / 3.9 ft |
