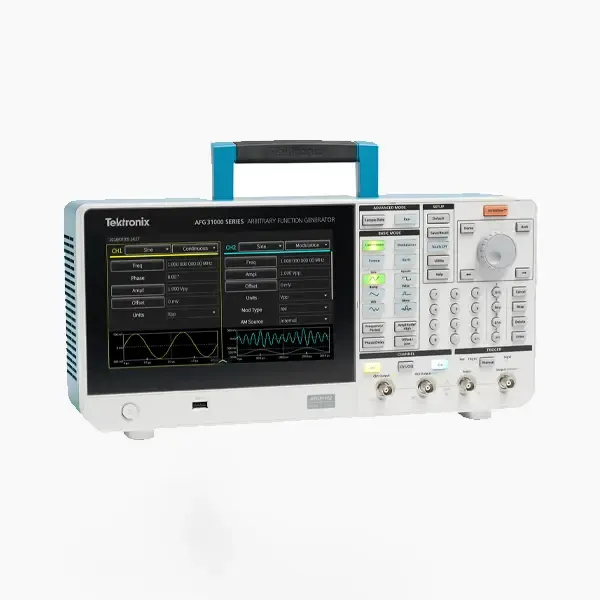

Tektronix AFG31022 Arbitrary Function Generator
0.00 AED
متوفر في المتجر
تفاصيل المنتج
Brand:
Tektronix
Channels :
2
Sine Frequency Range :
1 µHz to 25 MHz
Sample Rate :
250 MSa/s (16,384 pts)
Vertical Resolution :
14 bits
Amplitude Range (50 Ω) :
≤ 60 MHz: 1 mVP-P to 10 VP-P
Max Frequency Output :
25 MHz
Waveform Memory Size :
16 Mpts (128 Mpts optional)
Rise/Fall Time (Typical) :
≤ 3.5 ns (Amplitude ≤ 5Vpp)
Modulation:
AM, FM, PM
Output impedance:
50 Ω
Load impedance setting:
Selectable: 50 Ω, 1 Ω to 10.0 kΩ, High Z (Adjusts displayed amplitude according to selected load impedance)
Isolation:
42 Vpk maximum to earth ground
Short-circuit protection:
Signal outputs are robust against permanent shorts against floating ground
Run modes:
Continuous, Modulation, Sweep and Burst
Standard waveforms:
Sine, Square, Pulse, Ramp, More (Noise, DC,Sin(x)/x, Gaussian, Lorentz, Exponential Rise, Exponential Decay, Haversine )
Arbitrary waveforms:
Sampling clock: 250 MSa/s (16,384 pts), Vertical resolution: 14 bits,
Frequency range:
Continuous mode: 1 μHz to 50 MHz and Burst mode: 1 μHz to 25 MHz
Dimensions:
191.8 mm x 412.8 mm x 143.3 mm
Weight:
4.7 kg (10.4 lb.)
Operating temperature:
0 °C to +50 °C (32 °F to 122 °F)
Storage temperature:
-30 °C to +70 °C (-22 °F to 158 °F)
Altitude:
Up to 3,000 m (9,842 ft.)
Safety:
UL 61010-1:2004, CAN/CSA C22.2 No. 61010-1:2004, IEC 61010-1:2001
Display:
9-inch capacitive touch screen
Tektronix AFG31022
The Tektronix AFG31022 Arbitrary Function Generator is a versatile and reliable tool designed to meet the needs of engineers and researchers in various fields. As part of the AFG31000 series, it combines advanced functionality with user-friendly features, making it an essential instrument for a wide range of testing and development applications.
One of the standout features of the AFG31022 is its ability to generate both standard and arbitrary waveforms. This flexibility allows users to simulate a variety of signal conditions, which is crucial for testing and validating electronic devices. The arbitrary waveform generation capability is particularly valuable for creating complex, custom signals that can replicate real-world scenarios, providing a more comprehensive testing environment.
The Tektronix AFG31022 is equipped with a large, intuitive touchscreen interface, which simplifies the process of setting up and modifying waveforms. This user-friendly interface is designed to reduce the learning curve, allowing users to quickly become proficient with the device. The touchscreen operates similarly to a modern smartphone, making it easy to navigate through menus and settings.
Another significant feature of the AFG31022 is its real-time waveform monitoring capability. This feature, enabled by Tektronix’s InstaView™ technology, allows users to observe the actual waveform being delivered to the device under test (DUT) in real-time. This real-time feedback is crucial for ensuring the accuracy and reliability of test results, as it helps to identify and correct any discrepancies immediately.
The Tektronix AFG31022 also supports advanced testing modes, such as the double pulse test, which is particularly useful for evaluating the performance of power devices. This mode allows users to generate two pulses with different widths, helping to analyze the dynamic behavior of components like MOSFETs and IGBTs.
Overall, the Tektronix AFG31022 Arbitrary Function Generator is a versatile and powerful tool that enhances the capabilities of any testing setup. Its combination of advanced features, intuitive interface, and real-time monitoring makes it an excellent choice for both basic and complex testing applications. Whether you’re conducting research, developing new products, or performing routine tests, the AFG31022 provides the flexibility and precision needed to achieve accurate and reliable results.
Tektronix AFG31022 Specifications
| Sine frequency range | 25 MHz |
| Number of channels | 2 |
| Range (into 50 Ω) | ≤ 60 MHz: 1 mVP-P to 10`VP-P |
| > 60 MHz to ≤ 80 MHz: 1 mVP-P to 8`VP-P |
|
| > 80 MHz to ≤ 100 MHz: 1 mVP-P to 6`VP-P | |
| Range (into open circuit or High-Z) | ≤ 60 MHz: 1 mVP-P to 10`VP-P |
| > 60 MHz to ≤ 80 MHz: 2 mVP-P to 16`VP-P > 80 MHz to ≤ 100 MHz: 2 mVP-P to 12`VP-P |
|
| Accuracy | ± (1% of setting +1 mVP-P) |
| (1 kHz sine, 0 V offset, amplitude > 1 mVP-P) | |
| Resolution | 0.1 mVP-P, 0.1`mVRMS, 1`mV, 0.1`dBm or 4`digits |
| Units | Vpp, Vrms (excluding Arb and Noise), dBm (sine wave only), Volt (High Level and Low Level) |
| Offset | |
| Range (into 50 Ω) | ±(5 VPK - AmplitudeP-P ÷ 2) |
| Range (into open circuit or High-Z) | ±(10 VPK - AmplitudeP-P ÷ 2) |
| Accuracy | ± (1% of |setting| +1 mV + 0.5% of Amplitude (VP-P)) |
| Resolution | 1 mV or 4 digits |
| Output impedance
|
50 Ω |
| Load impedance setting
|
Selectable: 50 Ω, 1 Ω to 10.0 kΩ, High Z (Adjusts displayed amplitude according to selected load impedance) |
| Isolation
|
42 Vpk maximum to earth ground |
| Short-circuit protection
|
Signal outputs are robust against permanent shorts against floating ground |
| Overcurrent protection
|
When incoming current is greater than 250 mA, the output channels are protected with relays that disconnect the AFG from the device under test. Connection can be resumed by user after removing the incoming current |
| Run modes | Continuous, Modulation, Sweep and Burst |
| Standard waveforms | Sine, Square, Pulse, Ramp, More (Noise, DC,Sin(x)/x, Gaussian, Lorentz, Exponential Rise, Exponential Decay, Haversine ) |
| Arbitrary waveforms | Sampling clock: 1 GSa/s |
| Vertical resolution: 14 bits | |
| Waveform length: | 2 to 131,072 points |
| Frequency range | |
| Continuous mode | 1 μHz to 25 MHz |
| Burst mode | 1 μHz to 12.5 MHz |
| Physical characteristics | |
| Dimensions
|
|
| Height | 191.8 mm (7.55 in.) |
| Width | 412.8 mm (16.25 in.) |
| Depth | 143.3 mm (5.64 in.) |
| Weight
|
4.7 kg (10.4 lb.) |
| EMC, environment, and safety | |
| Operating Temperature
|
0 °C to +50 °C (32 °F to 122 °F) |
| Nonoperating Temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Humidity
|
|
| Operating | ≤ 80%, 0 °C to 40 °C (32 °F to104 °F) |
| ≤ 60%, > 40°C to 50°C (104 °F to 122 °F), noncondensing | |
| Nonoperating | 5% to 90%, < 40 °C (< 104 °F), noncondensing |
| 5% to 80%, ≥ 40 °C to 60 °C (≥ 104 °F to 140 °F), noncondensing | |
| 5% to 40%, > 60 °C to 70 °C (> 140 °F to 158 °F), noncondensing | |
| Altitude
|
|
| Operating | Up to 3,000 m (9,842 ft.) |
| Nonoperating | Up to 12,000 m (39,370 ft.) |
| EMC compliance
|
EN61326-1:2013, EN 61326-2-1:2013 |
| European Union | EU Council Directive 2004/108/EC |
| Safety
|
UL 61010-1:2004 |
| CAN/CSA C22.2 No. 61010-1:2004 | IEC 61010-1:2001 |
| Over-temperature protection
|
Instrument is protected from over-temperature by turning off outputs |
