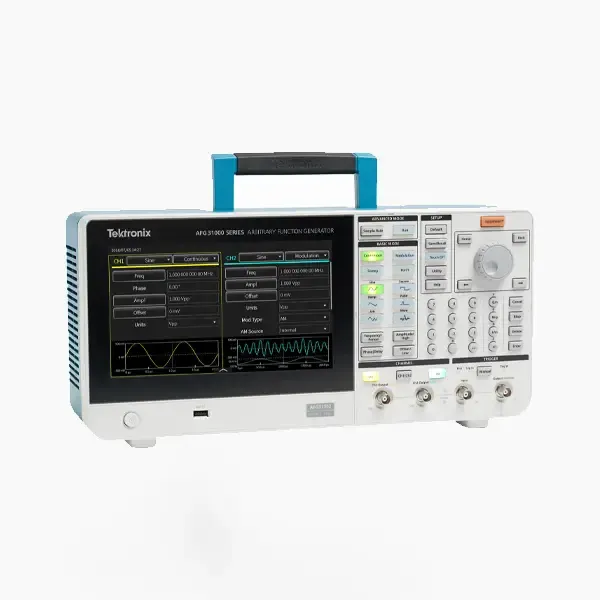

Tektronix AFG31251 Arbitrary Function Generator
0.00 AED
متوفر في المتجر
تفاصيل المنتج
Brand:
Tektronix
Channels :
1
Sine Frequency Range :
250 MHz
Sample Rate :
2 GSa/s
Vertical Resolution :
14 bits
Amplitude Range (50 Ω) :
≤ 60 MHz: 1 mVP-P to 10 VP-P
Max Frequency Output :
250 MHz
Waveform Memory Size :
16 Mpts (128 Mpts optional)
Rise/Fall Time (Typical) :
≤ 2 ns (Amplitude ≤ 5Vpp)
Modulation:
AM, FM, PM, FSK, PWM
Output impedance:
50 Ω
Load impedance setting:
Selectable: 50 Ω, 1 Ω to 10.0 kΩ, High Z (Adjusts displayed amplitude according to selected load impedance)
Isolation:
42 Vpk maximum to earth ground
Short-circuit protection:
Signal outputs are robust against permanent shorts against floating ground
Run modes:
Continuous, Modulation, Sweep and Burst
Standard waveforms:
Sine, Square, Pulse, Ramp, More (Noise, DC,Sin(x)/x, Gaussian, Lorentz, Exponential Rise, Exponential Decay, Haversine )
Arbitrary waveforms:
Sampling clock: 250 MSa/s, 1 GSa/s or 2 GSa/s (model and waveform length apply), Vertical resolution: 14 bits,
Frequency range:
Continuous and Burst mode: 1 μHz to 250 MHz
Dimensions:
191.8 mm x 412.8 mm x 143.3 mm
Weight:
4.7 kg (10.4 lb.)
Operating temperature:
0 °C to +50 °C (32 °F to 122 °F)
Storage temperature:
-30 °C to +70 °C (-22 °F to 158 °F)
Altitude:
Up to 3,000 m (9,842 ft.)
Safety:
UL 61010-1:2004, CAN/CSA C22.2 No. 61010-1:2004, IEC 61010-1:2001
Display:
9-inch capacitive touch screen
Tektronix AFG31251
The Tektronix AFG31251 Arbitrary Function Generator is a powerful tool widely used for generating precise and customizable waveforms in various applications, including research, development, and testing. As part of the Tektronix AFG31000 series, this generator offers high-performance capabilities, making it ideal for engineers and scientists who need reliable waveform generation for complex experiments or troubleshooting.
A key feature of the AFG31251 is its ability to create both standard and arbitrary waveforms. This flexibility enables users to simulate real-world signals for testing electronic devices and systems. Its advanced user interface, combined with a touchscreen, makes operation simple and intuitive, reducing setup time and improving productivity.
Tektronix designed the AFG31251 for use in both academic settings and industrial environments, thanks to its robust design and versatility. Whether working on wireless communications, automotive electronics, or other high-tech industries, this function generator ensures precision and reliability in waveform generation.
Tektronix AFG31251 Specifications
| Sine frequency range | 250 MHz
|
| Number of channels | 1 |
| Range (into 50 Ω) | ≤ 200 MHz: 1 mVP-P to 5`VP-P |
| > 200 MHz to ≤ 250 MHz: 1 mVP-P to 4`VP-P | |
| ≤ 200 MHz: 2 mVP-P to 10`VP-P | |
| Range (into open circuit or High-Z) | ≤ 200 MHz: 2 mVP-P to 10`VP-P |
| > 200 MHz to ≤ 250 MHz: 2 mVP-P to 8`VP-P | |
| Accuracy | ± (1% of setting +1 mVP-P) |
| (1 kHz sine, 0 V offset, amplitude > 1 mVP-P) | |
| Resolution | 0.1 mVP-P, 0.1`mVRMS, 1`mV, 0.1`dBm or 4`digits |
| Units | Vpp, Vrms (excluding Arb and Noise), dBm (sine wave only), Volt (High Level and Low Level) |
| Offset | |
| Range (into 50 Ω) | ±(2.5 VPK - AmplitudeP-P ÷ 2) |
| Range (into open circuit or High-Z) | ±(5 VPK - AmplitudeP-P ÷ 2) |
| Accuracy | ± (1% of |setting| +1 mV + 0.5% of Amplitude (VP-P)) |
| Resolution | 1 mV or 4 digits |
| Output impedance
|
50 Ω |
| Load impedance setting
|
Selectable: 50 Ω, 1 Ω to 10.0 kΩ, High Z (Adjusts displayed amplitude according to selected load impedance) |
| Isolation
|
42 Vpk maximum to earth ground |
| Short-circuit protection
|
Signal outputs are robust against permanent shorts against floating ground |
| Overcurrent protection
|
When incoming current is greater than 250 mA, the output channels are protected with relays that disconnect the AFG from the device under test. Connection can be resumed by user after removing the incoming current |
| Run modes | Continuous, Modulation, Sweep and Burst |
| Standard waveforms | Sine, Square, Pulse, Ramp, More (Noise, DC,Sin(x)/x, Gaussian, Lorentz, Exponential Rise, Exponential Decay, Haversine ) |
| Arbitrary waveforms | Sampling clock: 250 MSa/s, 1 GSa/s or 2 GSa/s (model and waveform length apply) |
| Vertical resolution: 14 bits | |
| Waveform length: | 2 to 131,072 points |
| Frequency range | |
| Continuous mode | 1 μHz to 250 MHz |
| Burst mode | 1 μHz to 250 MHz |
| Physical characteristics | |
| Dimensions
|
|
| Height | 191.8 mm (7.55 in.) |
| Width | 412.8 mm (16.25 in.) |
| Depth | 143.3 mm (5.64 in.) |
| Weight
|
4.7 kg (10.4 lb.) |
| EMC, environment, and safety | |
| Operating Temperature
|
0 °C to +50 °C (32 °F to 122 °F) |
| Nonoperating Temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Humidity
|
|
| Operating | ≤ 80%, 0 °C to 40 °C (32 °F to104 °F) |
| ≤ 60%, > 40°C to 50°C (104 °F to 122 °F), noncondensing | |
| Nonoperating | 5% to 90%, < 40 °C (< 104 °F), noncondensing |
| 5% to 80%, ≥ 40 °C to 60 °C (≥ 104 °F to 140 °F), noncondensing | |
| 5% to 40%, > 60 °C to 70 °C (> 140 °F to 158 °F), noncondensing | |
| Altitude
|
|
| Operating | Up to 3,000 m (9,842 ft.) |
| Nonoperating | Up to 12,000 m (39,370 ft.) |
| EMC compliance
|
EN61326-1:2013, EN 61326-2-1:2013 |
| European Union | EU Council Directive 2004/108/EC |
| Safety
|
UL 61010-1:2004 |
| CAN/CSA C22.2 No. 61010-1:2004 | IEC 61010-1:2001 |
| Over-temperature protection
|
Instrument is protected from over-temperature by turning off outputs |
