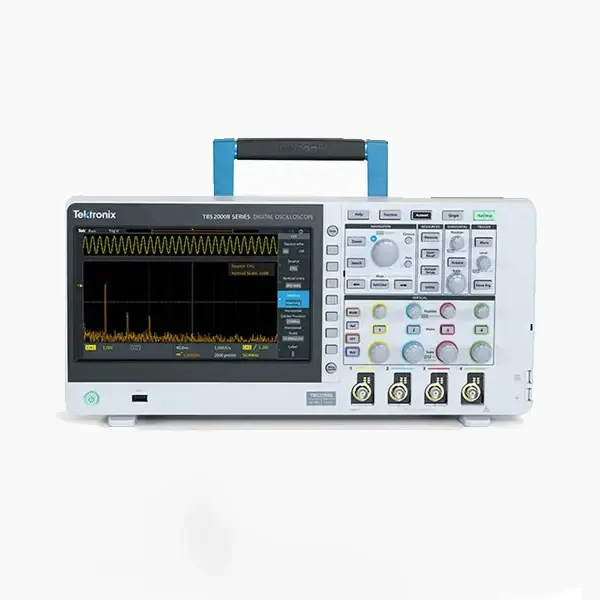

Tektronix TBS2074B Digital Storage Oscilloscope
0.00 AED
متوفر في المتجر
تفاصيل المنتج
Brand:
Tektronix
Bandwidth:
70 MHz
Number of channels:
Analog Channels: 4
sample rate:
2 GS/s (Half Channel), 1 GS/s - All Channels
Inputs:
DC or AC
sensitivity:
1mV/div to 10 V/div
Trigger types:
Edge, Trigger coupling analog channels, Runt, Pulse width
Measurements:
Cursors, Automated measurements, Gating
Memory:
No time limit for Front Panel Settings, saved waveforms, setups, and calibration constants.
Display:
9 inch (228 mm) wide format liquid crystal TFT color display.
Operating temperature:
0 °C to +50 °C (+32 ºF to 122 ºF)
Storage Temperature:
-40 °C to +71 °C, (-40 ºF to 160 ºF)
Operating altitude:
5% to 95% relative humidity (% RH) at up to +30° C
Size:
Height: 201.5 mm, Width: 412.8 mm, Depth: 128.1 mm
Weight:
4.17 kg (stand-alone)
Power:
80 W maximum
Tektronix TBS2074B
The Tektronix TBS2074B Digital Storage Oscilloscope is a highly capable instrument designed for engineers, technicians, and educators involved in electronics testing and signal analysis. It is part of the TBS2000 series, which is recognized for its advanced features and user-friendly design.
Key Features
Display and User Interface
The TBS2074B features a 7-inch WVGA color display, providing clear visibility of waveforms and measurement data. The display supports 10 vertical divisions and 15 horizontal divisions, allowing users to capture and analyze complex signals effectively. The intuitive user interface includes a series of dedicated buttons and knobs, making it easy to navigate through various functions without extensive training.
Signal Analysis Capabilities
This oscilloscope is equipped with 32 automated measurements, which help users quickly assess signal characteristics such as frequency, amplitude, rise time, and more. The oscilloscope also provides advanced triggering options, including edge, pulse width, and timeout triggers, enabling precise capture of specific signal events.
Educational Features
The TBS2074B is particularly well-suited for educational applications. It includes a built-in Scope Intro handbook that offers guidance on basic operations and oscilloscope fundamentals. This feature is beneficial for students learning about oscilloscopes for the first time. Additionally, the oscilloscope can be used with TekSmartLab, a lab management software that helps educators manage lab exercises and track student progress effectively.
Connectivity Options
The TBS2074B offers several connectivity options:
- USB 2.0 Ports: It includes a front-panel USB host port for easy data storage and transfer, as well as a rear-panel device port for connecting to PCs.
- Ethernet Port: A 10/100BASE-T Ethernet port allows for remote control of the oscilloscope over a network, facilitating integration into laboratory environments.
- Wi-Fi Capability: The TBS2074B can support compatible USB Wi-Fi dongles, enabling wireless communication for added convenience in various settings.
Probe Compatibility
This model utilizes the TekVPI probe interface, which is compatible with a wide range of probes including active voltage probes and current probes. This flexibility allows users to select the appropriate probes for their specific measurement needs without compatibility concerns.
In summary, the Tektronix TBS2074B Digital Storage Oscilloscope combines advanced features with an intuitive design, making it an excellent tool for both professionals and students. Its robust signal analysis capabilities, educational features, and versatile connectivity options make it a valuable asset in any electronics testing environment. Whether used for debugging complex circuits or teaching fundamental concepts in electronics, the TBS2074B stands out as a reliable and efficient instrument.
Tektronix TBS2074B Specifications
| Models | TBS2102B |
| Analog Channels | 4 |
| Bandwidth | 70 MHz |
| Max Sample Rate | 2 GS/s - Half Channel |
| 1 GS/s - All Channels | |
| Record length | 5 M points |
| Hardware bandwidth limits | 20 MHz
|
| Record Length | 5 Mpoints on all channels |
| Input Coupling | DC or AC |
| Input Impedance | 1 MΩ ± 1 %, 13 pF ± 1.5 pF |
| Vertical Resolution | 8 bits |
| Maximum Input Voltage | 300 VRMS (Installation Category II); with peaks ≤ ±450 V |
| Horizontal System | 1 ns/div to 100 sec/div (1-2-4 sequence) |
| Time Base Accuracy | ±25 ppm over any ≥1 ms interval |
| Trigger Modes | Auto, Normal, and Single |
| Display | 9 inch (228 mm) wide format liquid crystal TFT color display. |
| USB Ports | USB 2.0 host and device ports |
| LAN Port | 10/100BASE-T Ethernet |
| Wi-Fi Support | Yes (with compatible dongle) |
| Power Consumption | 80 W maximum |
| Dimensions | Height: 201.5 mm, Width: 412.8 mm, Depth: 128.1 mm |
| Weight | 4.17 kg (stand-alone) |
