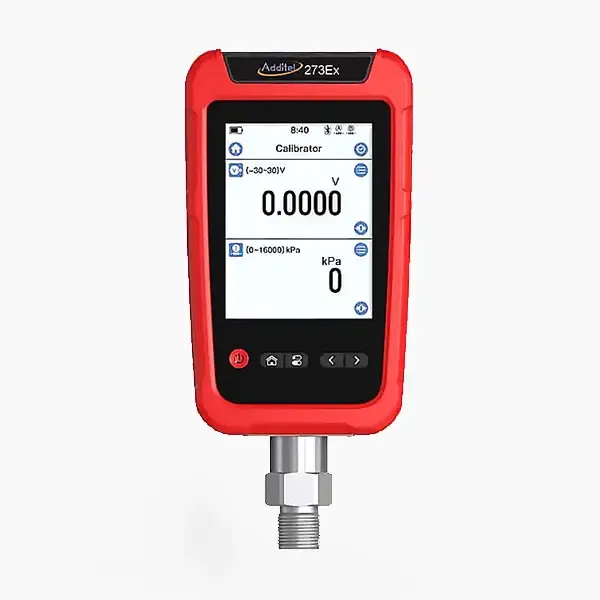

Additel 273Ex Handheld Pressure Calibrator
18,490.00 AED
In stock
Product Details
Brand:
Additel
Range:
-15 to 10,000 ps
Resolution:
Low pressure sensor: 0.001 psi, 0.0001 bar, High pressure sensor: 0.1 psi, 0.01 bar
Accuracy:
0.02% FS
Over Pressure:
1.2x
Power:
4000mAh, 14.4Wh explosion-proof intelligent lithium battery, charging time about 6 hours, battery can be charged independently
Operating Temp.:
(-20 ~ 50)°C
Storage Temp.:
(-30 ~ 70)°C
Altitude:
3000 meters
Size:
6.97" x 4.13" x 2.04" (177 x 105 x 52 mm) which doesn't include bottom ADT158Ex.
Weight:
1.65 lbs (0.75 kg)
Loop Power Range:
22 V ± 10%, max output impedance: 320 Ω, max load current: 25 mA
Display:
4.4-inch color display capacitive screen, transflective, with LED backlight
Additel 273Ex Handheld Pressure Calibrator
The Additel 273Ex is an intrinsically safe handheld multifunctional pressure calibrator designed for explosion-proof field testing and calibration. It features a color touchscreen display, smartphone-like interface, built-in quick test tasks, and optional HART communication capability.
Key Features
- 0.02% or 0.05% FS accuracy
- Intrinsically safe, certified for use in potentially explosive gas environments
- Field switchable pressure module
- Dual digital pressure module inputs
- Color touchscreen display with enhanced visibility in direct sunlight
- Built-in quick test task feature
- Built-in barometer for absolute pressure and gauge pressure measurements
- Intuitive smartphone-like interface
- Bluetooth and USB communication
- Optional HART communication for pressure calibration of transmitters
- Communicates with Additel's Link Mobile App
- ISO 17025-accredited calibration with data included
Versatile Connections and Applications
The Additel 273Ex can be connected to various pressure sensors and transducers for calibration and testing purposes. It can measure pressure precisely with a field switchable pressure sensor, as well as read the current or mV produced by a transducer.
The calibrator is highly portable and can be used in a wide range of industries, such as oil and gas platforms, refineries, chemical and petrochemical plants, pharmaceutical industry, energy and gas processing industry, where explosion-proof equipment is required.
User Experience
Additel has designed the 273Ex with a focus on providing a modern and intuitive user experience. The color touchscreen display offers a refreshing and easy-to-navigate interface compared to other calibrators on the market.
The easy-to-read display is not only user-friendly but also built to withstand the demands of a busy technician in the field or laboratory.
Additel 273Ex Handheld Pressure Calibrator Specifications
| Input Channels | Top: 1 electrical signal measurement channel, φ4mm banana jacks |
| Right side: 2 channels for external digital pressure modules, 5-core dedicated aviation plug | |
| Bottom: embedded digital pressure module (model ADT158Ex), field switchable. | |
| Internal: 1 embedded atmospheric pressure sensor | |
| Barometric Accuracy | ± 55 Pa |
| Measurement Rate | mV, V, mA & frequency: 3 times/sec |
| Pressure module: 1~10 times/sec selectable (3 times/sec as default) | |
| Barometer: 1 time/sec | |
| Power | 4000mAh, 14.4Wh explosion-proof intelligent lithium battery, charging time about 6 hours, battery can be charged independently |
| Environmental | Operating temperature: (-20 ~ 50)°C |
| Storage temperature: (-30 ~ 70)°C | |
| Humidity: 0% to 95% RH, non-condensing | |
| Altitude: 3000 meters | |
| Port Protection Voltage | 30 V max |
| Protection Level | IP67, 1 meter drop test |
| Communication | Isolate USB-Type C (slave), Bluetooth |
| Display | 4.4-inch color display capacitive screen, transflective, with LED backlight |
| Size | 6.97" x 4.13" x 2.04" (177 x 105 x 52 mm) which doesn't include bottom ADT158Ex. |
| Weight | 1.65 lbs (0.75 kg) |
