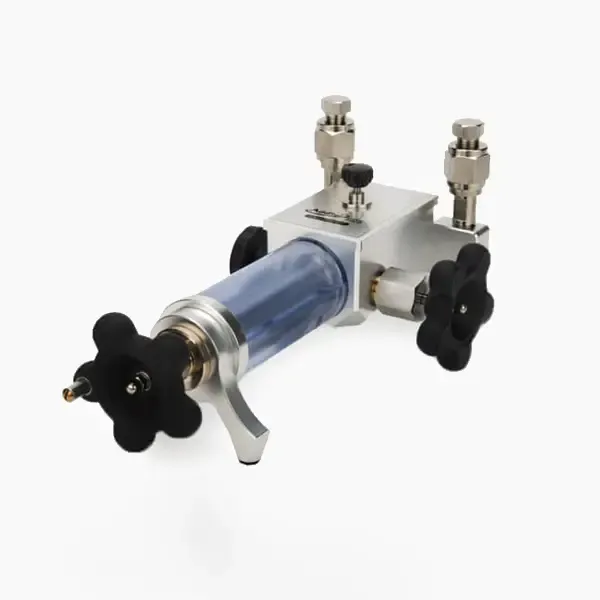

Additel 925 Handheld Hydraulic Pressure Test Pump
7,635.00 AED
In stock
Product Details
Brand:
Additel
Range:
85% vacuum to 6,000 psi (400 bar) positive pressure.
Dimensions:
Height: 4.72'' (120 mm), Base: 9.84'' (250 mm) x 5.51'' (140 mm)
Pressure connection:
Hand-tight connectors for both test gauge and reference gauge. 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female
Housing:
Ram/adapters: SS, Body: SS, aluminum, Seals: Buna-N, PTFE, Copper Alloy
Weight:
3.7 lb (1.7 kg).
Additel 925
The Additel 925 Handheld Hydraulic Pressure Test Pump is a sophisticated, hand-operated device designed for generating hydraulic pressure, making it ideal for calibrating pressure measuring instruments. This portable pump is particularly suited for field and laboratory applications where accurate pressure testing is essential.
Key Features
- Wide Pressure Range: The Additel 925 can generate pressures from 85% vacuum to 6,000 psi (400 bar), allowing it to handle various calibration tasks.
- Smooth Pressure Adjustment: Utilizing patented screw press technology, the pump enables users to increase or decrease pressure smoothly, enhancing usability and precision during testing.
- Minimal Maintenance: The design eliminates the need for a non-returning valve, which is commonly associated with leakage issues in other hand pumps. This feature significantly reduces maintenance requirements.
- Robust Construction: The pump is built from high-quality materials, including stainless steel and aluminum, ensuring durability and longevity in demanding environments.
- Portability: Weighing only 3.7 lbs (1.7 kg), the Additel 925 is lightweight and easy to transport, making it convenient for on-site calibrations.
- Hand-tight Quick Connectors: The pump features two hand-tight connectors, allowing for easy and quick connections to test gauges without the need for PTFE tape or wrenches, streamlining the calibration process.
The Additel 925 Handheld Hydraulic Pressure Test Pump is an excellent choice for professionals needing reliable and accurate pressure calibration tools. Its combination of portability, ease of use, and minimal maintenance requirements makes it a valuable asset in various applications, including manufacturing, quality control, and laboratory testing.
Additel 925 Specifications
| Media | Oil or deionized water. |
| Reservoir capacity | 200 ml (12.2 in3 ) |
| Generated Pressure Range | 85% vacuum to 6,000 psi (400 bar) positive pressure. |
| Adjustment Resolution | 0.1 Pa (0.001 mbar). |
| Material | Ram/adapters: SS |
| Body: SS, aluminum | |
| Seals: Buna-N, PTFE, Copper Alloy | |
| Piston volume | Low pressure piston: 1.1 in3 (18 ml), High pressure piston: 0.05 in3 (0.9 ml) |
| Connection | Hand-tight connectors for both test gauge and reference gauge. |
| 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female | |
| Dimensions | Height: 4.72'' (120 mm), Base: 9.84'' (250 mm) x 5.51'' (140 mm) |
| Weight | 3.7 lb (1.7 kg). |
