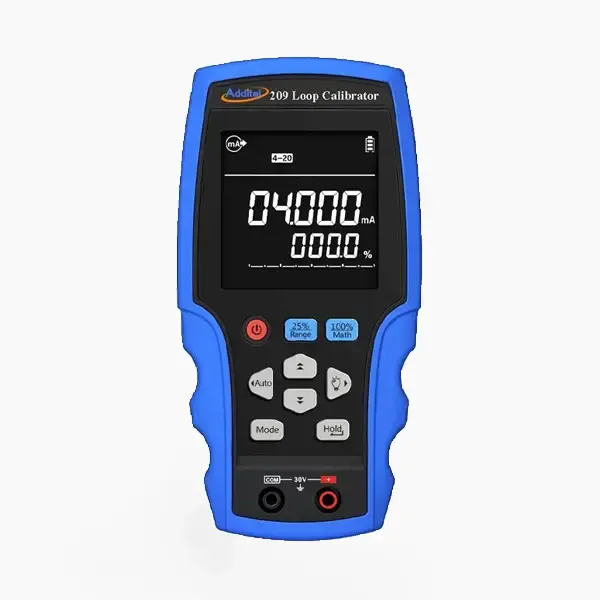

Additel ADT209 Loop Calibrator
Introduction of Additel ADT209
The Additel ADT209 loop calibration instrument is a user-friendly and powerful tool for troubleshooting and calibrating process loops. Its precise measurements, versatile functionality, and intuitive design make the ADT209 a convenient, efficient, and highly accurate calibration instrument.
To meet the demands of loop calibration, the Additel ADT209 offers a comprehensive range of functions. It delivers accurate measurements with an impressive accuracy of 0.03% of reading, ensuring reliable calibration results. The ADT209 is capable of measuring electrical current, voltage, and switches. Additionally, it can simulate and source MAUs or process transmitters, providing flexibility for various calibration applications. With its user-friendly interface, the ADT209 is easy to operate, combining simplicity with functionality.
Additel ADT209 Key Features
- Accuracy to 0.01% of reading
- Measure, source, or simulate loop current
- Measure DC volts
- Simultaneously mA and % span display
- Switch functionality
- Selectable ramp and step functions
- HART 250Ω resistor in series with 24V loop
- ISO 17025-accredited calibration w/data included
Additel ADT209 Specifications
| Specification | Details |
| Voltage Limit | 30V between terminals or between terminals and ground |
| Measurement Functions | Auto step, auto ramp, span step |
| Display | VA LCD display, 2.04 x 2.04 in (52 x 52 mm) |
| Loop Power | 24V |
| Over-voltage Protection | 30V DC (240V AC) |
| Overload Current Protection | 33 mA DC |
| Storage Temperature | -20°C to 70°C |
| Working Environment | -10 to 50°C, 95%RH |
| Working Altitude | <3,000 m |
| Vibration/Shock | Random 2G 5 to 500Hz, 1 meter drop |
| Power | One 9V alkaline battery (ANSI/NEDA 1604A or IEC), optional DC9V adapter |
| Battery Life (Typical) | Output mode: 18 hours (12 mA/500Ω); Measure mode: 50 hours |
| Size (LxWxH) | 163 x 83 x 41 mm |
| Weight | 350 g |
| Calibration Certification | ISO17025 Accredited certificate of calibration with data |
| Compliance Certification | CE |
