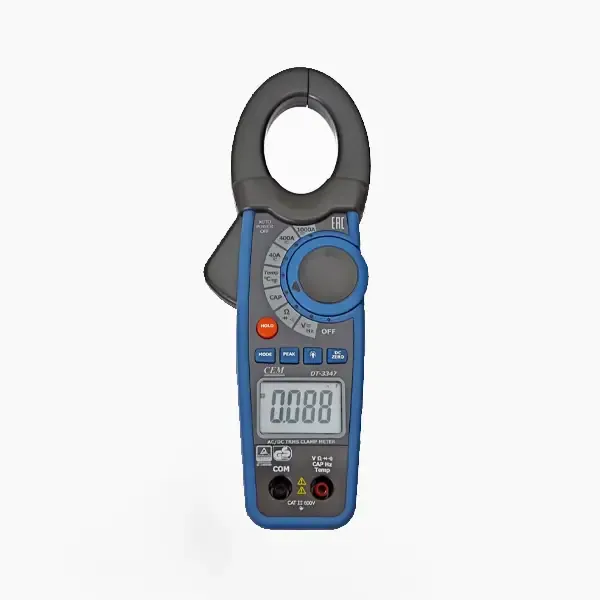

CEM DT-3347 True RMS Current Clamp Meter

CEM DT-3347 True RMS Current Clamp Meter

The CEM DT-3347 True RMS Current Clamp Meter is a versatile and high-precision instrument designed for accurately measuring current, voltage, resistance, and other electrical parameters in various applications. This device is ideal for electricians, maintenance professionals, and engineers who require reliable and accurate measurements in both residential and industrial environments.

The CEM DT-3347 operates by clamping its jaws around a conductor to measure the current flow without the need to disconnect the circuit. It can also measure voltage, resistance, and other parameters using test leads.

The CEM DT-3347 True RMS Current Clamp Meter is an essential tool for professionals requiring accurate and reliable measurements in various electrical applications.

Electrical Maintenance: Ideal for routine electrical inspections and troubleshooting in residential, commercial, and industrial settings.

HVAC Systems: Suitable for measuring current, voltage, and temperature in heating, ventilation, and air conditioning systems.

Automotive: Useful for diagnosing electrical issues in automotive applications.

Renewable Energy: Applicable for monitoring and maintaining solar and wind energy systems.

CEM DT-3347 True RMS Current Clamp Meter Key Features

True RMS Measurement: Provides accurate readings of AC current and voltage, even in the presence of non-sinusoidal waveforms.

Wide Measurement Range: Capable of measuring AC/DC current up to 1000A, voltage up to 1000V, and resistance up to 60MΩ.

Temperature Measurement: Equipped with a thermocouple input for measuring temperature in both Celsius and Fahrenheit.

Data Hold Function: Allows users to freeze the display reading for easy data recording.

Backlit Display: Large, clear LCD with backlight for easy reading in low-light conditions.

Auto-Ranging: Automatically selects the appropriate measurement range for increased convenience and accuracy.

Continuity and Diode Testing: Features an audible continuity test and diode check for quick circuit diagnostics.

Low Battery Indicator: Alerts the user when the battery needs replacing, ensuring uninterrupted operation.

CEM DT-3347 True RMS Current Clamp Meter Specifications

AC Current Range	0.1A to 1000A
DC Current Range	0.1A to 1000A
AC Voltage Range	0.1V to 1000V
DC Voltage Range	0.1V to 1000V
Resistance Range	0.1Ω to 60MΩ
Temperature Range	-50°C to 1000°C (-58°F to 1832°F)
Frequency Measurement	10Hz to 10MHz
Capacitance Range	10pF to 100mF
Display	6000 counts, backlit LCD
Jaw Opening	42mm
True RMS	Yes
Data Hold	Yes
Auto-Ranging	Yes
Continuity Test	Yes, with audible indicator
Diode Test	Yes
Power Supply	9V battery
Dimensions	285 x 102 x 48 mm
Weight	420 g
Safety Rating	CAT IV 600V, CAT III 1000V
