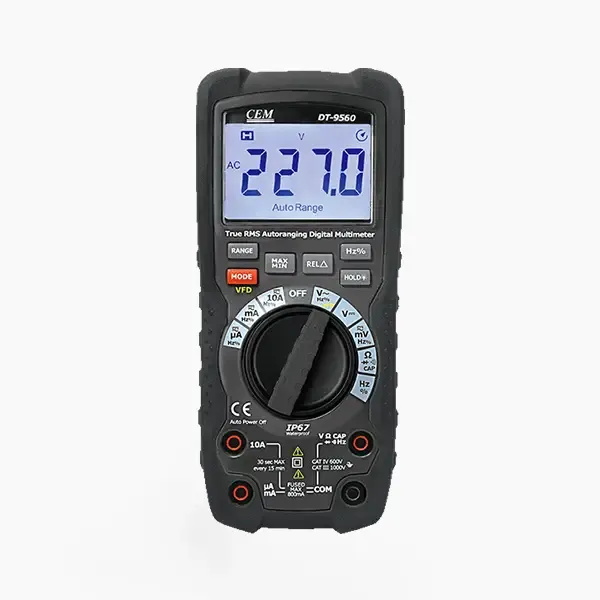

CEM DT-9560 Digital Multimeter
0.00 AED
In stock
Product Details
Brand:
CEM
AC Voltage Range:
400mV/4V/40V/400V/1000V
DC Voltage Range:
400mV/4V/40V/400V/1000V
Resistance Range:
400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
Capacitance Range:
40nF/400nF/4μF/40μF/400μF/4000μF
Dimension:
180mm x 82mm x 55mm
Weight:
255g
CEM DT-9560 Digital Multimeter
The CEM DT-9560 Digital Multimeter is a versatile and reliable instrument designed for a wide range of electrical testing and troubleshooting tasks. This multimeter is equipped with advanced features that make it suitable for both professional electricians and DIY enthusiasts.
The CEM DT-9560 Digital Multimeter is a dependable and efficient tool, perfect for anyone needing accurate and versatile electrical measurement capabilities. Its combination of advanced features and user-friendly design makes it a valuable addition to any toolkit.
CEM DT-9560 Key Features
- Low pass filter for accurate measurement of Variable frequency drive(VFD) signal
- Display Count with LED Backlight
- Auto Range & Auto Power Off
- True RMS
- AC Bandwidth(Hz)
- Continuity Buzzer & Diode
- Low Battery Indication
- Data Hold ,MAX/MIN & Relative Mode
- Input Protection
- IP67 Waterproof
CEM DT-9560 Specifications
| Specifications | ||||
| Best Accuracy | ||||
| Model | Range | 9560 | 9561 | 9562 |
| DC Voltage(V) | 600mV/6V/60V/600V/1000V | ±(0.8%+1) | ||
| 400mV/4V/40V/400V/1000V | ±(0.8%+1) | ±(0.8%+1) | ||
| AC Voltage(V) | 600mV/6V/60V/600V/1000V | ±(1%+3) | ||
| 400mV/4V/40V/400V/1000V | ±(1%+3) | ±(1%+3) | ||
| DC Voltage(A) | 600μA/6000μA/60mA/600mA/6A/10A | ±(1%+3) | ||
| 400μA/4000μA/40mA/400mA/4A/10A | ±(1%+3) | ±(1%+3) | ||
| AC Current(A) | 600μA/6000μA/60mA/600mA/6A/10A | ±(1.2%+5) | ||
| 400μA/4000μA/40mA/400mA/4A/10A | ±(1.2%+5) | ±(1.2%+5) | ||
| Resistance（Ω） | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(2%+2) | ||
| 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(2%+2) | ±(2%+2) | ||
| Capacitance(F) | 40nF/400nF/4μF/40μF/400μF/4000μF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| 40nF/400nF/4μF/40μF/400μF/4mF/40mF | ||||
| Frequency(Hz) | 10Hz-10MHz | ±(1.5%+5) | ±(1.5%+5) | ±(1.5%+5) |
| Temperature（℃） | ﹣45℃～1000℃ | ±(3.0%+5) | ±(3.0%+5) | |
| Temperature（F） | ﹣50°F～1382°F | ±(3.0%+9) | ±(3.0%+9) | |
