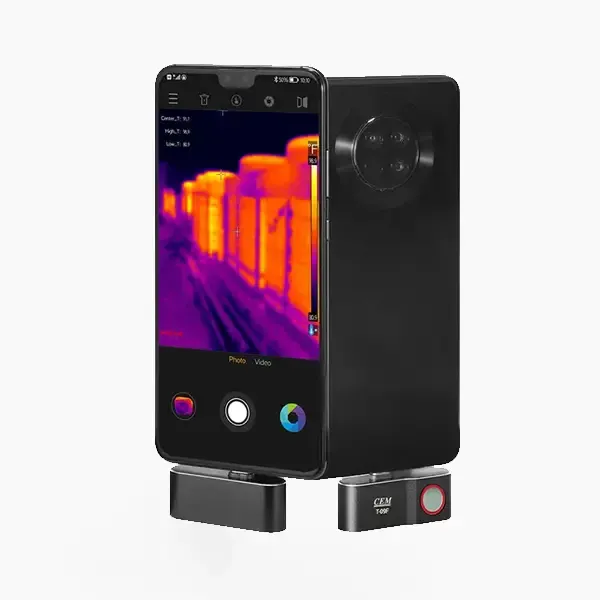

CEM T-20 Smart Thermal Camera
0.00 AED
In stock
Product Details
Brand:
CEM
Temperature range:
-10°C ~ 330°C
Detection range:
543 m
Color Palette:
9 Options
Image display:
Yes
Image file format:
HIR, Mp4
Video Recording:
Yes
Field of view:
34.4° X 25.8°
Focus:
Manual
Image frequency:
8 ~ 14μm
Infrared Resolution:
320 X 240px
Thermal sensitivity:
@f/1.0 Typical 50mk Max 70 mk, @f/1.2 Typical 70mk Max 100mk
Size (H x W x L) :
68 x 33 x 31 mm
Weight:
56 g
Operating temperature:
-20°C ~ 60°C
Storage temperature:
-40°C ~ 85°C
Interface:
USB-C (Android) Micro-USB (Android)
CEM T-20
The CEM T-20 Smart Thermal Camera is a cutting-edge thermal imaging device designed for a variety of applications, including electrical inspections, HVAC assessments, building diagnostics, and industrial monitoring. This versatile tool allows users to visualize temperature variations and identify potential issues that may not be visible to the naked eye.
Key Features
- High Thermal Resolution: The T-20 boasts a thermal resolution of 384 x 288 pixels, providing clear and detailed thermal images. This high resolution is essential for detecting subtle temperature differences in various applications.
- Wide Temperature Range: The camera can measure temperatures from -20°C to 400°C (-4°F to 752°F), making it suitable for a broad spectrum of industrial and environmental applications. This range allows users to monitor both low and high-temperature scenarios effectively.
- User-Friendly Interface: The T-20 is equipped with a large 3.5-inch capacitive touch screen display that provides an intuitive interface for navigating settings and viewing thermal images. The display resolution of 320 x 240 pixels ensures that users can easily interpret the data.
- Multiple Imaging Modes: The device supports various imaging modes, including infrared (IR) imaging, visible light imaging, and picture-in-picture mode. This versatility allows users to overlay thermal images on visual images for enhanced analysis.
- Automatic Hot/Cold Detection: The T-20 features automatic hot and cold detection markers, which highlight temperature extremes within the captured images. This functionality helps users quickly identify areas of concern.
- Data Storage and Connectivity: The camera can store images in BMP format along with measurement data. It also supports Wi-Fi connectivity for easy data transfer and communication with other devices.
- Battery Life: Powered by a rechargeable lithium-ion battery, the T-20 offers approximately 4 hours of continuous use, making it suitable for extended fieldwork without frequent recharging.
Advantages
The CEM T-20 Smart Thermal Camera offers several significant advantages:
- Enhanced Diagnostic Capabilities: With its ability to visualize temperature differences clearly, the camera aids in identifying issues such as overheating components, insulation failures, and moisture intrusion.
- Versatile Applications: Suitable for various industries including electrical maintenance, mechanical inspections, building diagnostics, and HVAC assessments.
- User-Friendly Design: The intuitive interface and clear display ensure that users can operate the device effectively with minimal training.
In summary, the CEM T-20 Smart Thermal Camera is an essential tool for professionals seeking reliable thermal imaging solutions. Its combination of high resolution, wide temperature range, user-friendly features, and efficient data management capabilities makes it an invaluable asset in maintaining safety and efficiency across various applications.
CEM T-20 Specification
| Imaging & Optical | |
| Thermal Resolution | 320 X 240px |
| Wavelength | 8 ~ 14μm |
| Frame Rate | 9Hz |
| Field of View (Horizontal x Vertical) | 34.4° X 25.8° |
| Shutter | Automatic |
| Focus Mode | Manual |
| Minimum Focus Distance | 2m, Max 3m |
| Detection Range | 543m |
| Recognition Range | 136m |
| Identification Range | 78m |
| Measurement | |
| Temperature Measurement Range | -10°C ~ 330°C |
| Repeatability / Accuracy (-10~100°C) | ±2°C / ±5°C |
| Repeatability / Accuracy (100~330°C) | ±2% / ±5% |
| Thermal Sensitivity/NETD | @f/1.0 Typical 50mk Max 70 mk |
| @f/1.2 Typical 70mk Max 100mk | |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature (Non-Condensing) | -40°C ~ 85°C |
| Mechanical Shock | Drop from 2m |
| Common Features | |
| Weight | 56g |
| Dimensions (WxHxD) | 68 x 33 x 31 mm |
| Phone | Android |
| Connections | USB-C (Android) Micro-USB (Android) |
| App Features | |
| Colour Pallet | 9 Options |
| Capture Mode | Photo, Video |
| File Format | HIR, Mp4 |
| Spot | Center Spot |
| Automatic Hot/Cold Detection | Auto Hot/Cold Markers |
| Temperature Analysis | User Defined Points, Lines and Areas |
| Report | PDF report export and Share |
