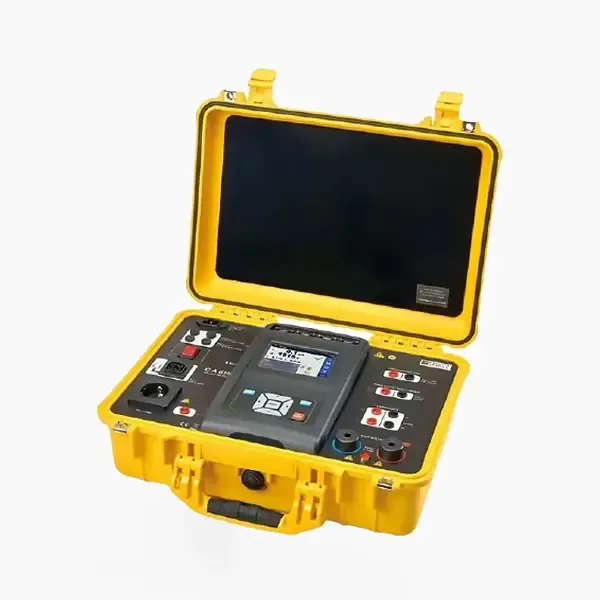

Chauvin Arnoux CA 6165 Multi-function Tester

Chauvin Arnoux CA 6165 Multi-function Tester

Store / Electrical
32,200.00 AED
In stock
Product Details

Introduction of Chauvin Arnoux CA 6165

The Chauvin-Arnoux CA 6165 digital multimeter is designed for professionals in electrical testing and measurement. This versatile instrument can measure a wide range of electrical quantities, including temperature, resistance, frequency, capacitance, voltage, and current.

The CA 6165 multifunction electrical equipment tester is capable of performing all necessary measurements for evaluating the electrical safety of portable electrical devices, machinery, and electrical panels. It is thus ideal for periodic inspections, certifying the electrical safety of equipment, and verifying compliance at the end of the production line.

Chauvin-Arnoux CA 6165 Key Features

  • Capacitive colour touch screen
  • Automatic test sequences
  • Storage of the tests on memory card up to 32 GB
  • 5 kVAC/ 6 kVDC HV dielectric test, 25 A continuity, 1,000 V isolation
  • Substitute direct leakage current, PE, differential leakage current and touch leakage current
  • External and internal discharge time up to 10 s / 550 V peak
  • P, Q, S, Pf, Cos φ, THDU, THDI, U and I functional test
  • Inputs/outputs to pedal, indicator lamps, PC
  • Compatible with TT, TN and IT networks, 230 V / 115 V

Chauvin-Arnoux CA 6165 Specifications

Parameter Range/Resolution/Accuracy
High Voltage
AC / AC Programmable 0 V to 1,999 V: 1 V / ± 3 % R
2 kV to 5.99 kV: 10 V / ± 3 % R
DC / DC Programmable 0 V to 1,999 V: 1 V / ± 3 % R
2 kV to 6.99 kV: 10 V / ± 3 % R
Current Range
AC: I apparent & resistive 0 mA to 99.9 mA
I capacitive: -99.9 mA to +99.9 mA
DC 0.01 mA to 9.99 mA
Resolution/Accuracy AC: I apparent: 0.1 mA / ±3 % R ± 3 cts
indicative for I capacitive & I resistive
DC: 0.01 mA / ± (5 % R + 3 cts)
Continuity, Voltage Drop (10 A)
Range 0 to 19.99 Ω
20 to 99.9 Ω
100 to 199.9 Ω
200 to 999 Ω
Resolution 0.01 Ω
0.1 Ω
0.1 Ω
1 Ω
Accuracy ± (2 % R + 2 cts)
± 3 % R
± 5 % R
Voltage Drop (10 A) 0.00 V to 99.9 V
Insulation
Voltage 50 V / 100 V
250 V / 500 V / 1,000 V
Range 0 to 19.99 MΩ
20 MΩ to 99.9 MΩ
0 to 19.99 MΩ
20 MΩ to 199.9 MΩ
Resolution 0.01 MΩ
0.1 MΩ
0.01 MΩ
0.1 MΩ
Accuracy ± (5 % R + 2 cts)
± 20 % R
± (3 % R + 2 cts)
± 10 % R
Leakage Current
Method Substitute I PE
Differential
Touch
Range 0.00 to 19.99 mA
Resolution 10 µA
0.01 mA
Accuracy ± (5 % R + 3 cts)
± (3 % R + 3 cts)
± (3 % R + 5 cts)
± (3 % R + 3 cts)
Discharge Time
Time Range 0 to 9.9 s
Resolution 0.1 s
Accuracy ± (5 % R + 2 cts)
Up Voltage
Range 0 to 550 V
Resolution 1 V
Accuracy ± (5 % R + 3 cts)
Power Values
Active (P)
Range/Resolution: 0 to 3.70 kW / 0.01 W to 10 W
Apparent (S)
Range/Resolution: 0 to 3.70 kVA / 0.01 VA to 10 VA
Reactive (Q)
Range/Resolution: 0 to 3.70 kVAr / 0.01 VAr to 10 VAr
Accuracy ± (5 % R + 5 cts)
± (5 % R + 10 cts)
Other PF, Cos φ, THDi , THDu ; (5 % R + 5 D)
State at Delivery Optional accessories
References
Voltage 0.0 V to 199 V / 0.1 V / ± (3 % R + 10 cts)
200 to 264 V / 1 V / ± 3 % R
Current 0 to 999 mA / 1 mA / ± (3 % R + 5 cts)
1.00 to 16.00 A / 10 mA / ± 3 % R
General Specifications
Display Colour TFT screen, 480 x 272 pixels
Storage microSD card
Communication Interfaces
RS232, USB, Ethernet*, Bluetooth, Inputs / Outputs (2 x DB9)
Power Supply
110 V / 230 V - 50 Hz / 60 Hz ; Max. consumption: 600 W / 4.5 kW if charged on mains test socket
Dimensions / Weight 435 x 292 x 155 mm / 17 kg
Environment
Operating temperature: 0 °C to +40 °C; Storage: -10 °C to +60 °C
Protection IP40 open / IP50 closed
Electrical Safety 300 V CAT II / 600 V CAT II (DISCH1 / DISCH2)
