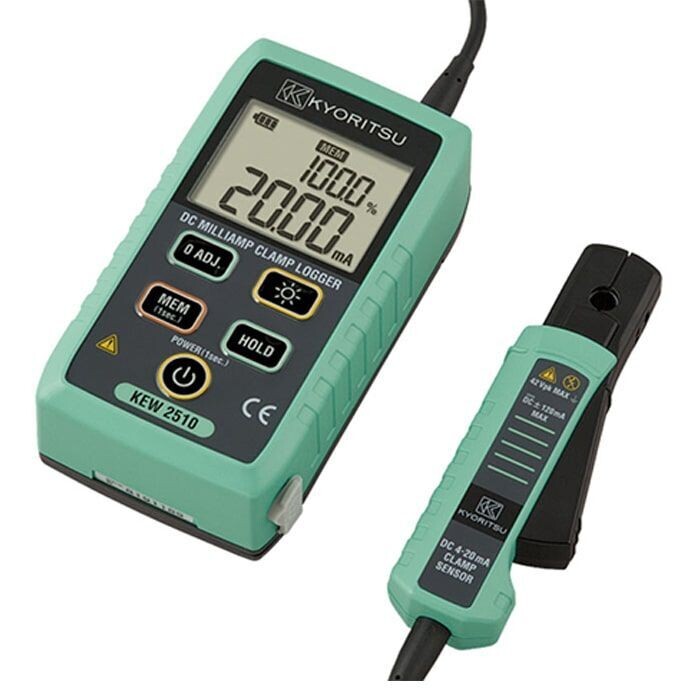

DC MILLIAMP CLAMP LOGGER kyoritsu KEW 2510

DC MILLIAMP CLAMP LOGGER KEW 2510

The KEW 2510 DC Milliamp Clamp Logger is a specialized instrument designed for professionals involved in the measurement and logging of DC milliamp currents. With its advanced features and convenient data logging capabilities, this clamp logger provides accurate readings and facilitates efficient data analysis for various applications.

The KEW 2510 DC Milliamp Clamp Logger is a reliable and efficient tool for professionals requiring accurate measurement and data logging of DC milliamp currents. Its clamp design, data logging capabilities, and high resolution make it an indispensable instrument for various applications, enhancing efficiency in monitoring and maintenance tasks.

DC MILLIAMP CLAMP LOGGER KEW 2510 Applications :

Process Control and Automation:

• Ideal for monitoring and logging DC milliamp currents in process control and automation systems for accurate performance assessment.

Industrial Maintenance:

• Applicable in industrial maintenance for routine monitoring of low-current circuits, identifying potential issues before they lead to system failures.

Energy Audits:

• Suitable for energy audits to measure and log DC milliamp currents in various components, supporting energy efficiency assessments.

Troubleshooting:

• Valuable for troubleshooting low-current circuits, allowing technicians to identify and address issues affecting system performance.

DC MILLIAMP CLAMP LOGGER KEW 2510 Key Features :

DC Milliamp Current Measurement:

• The KEW 2510 is specifically designed for measuring DC milliamp currents, providing accurate readings for a wide range of low-current applications.

Clamp Design for Non-Intrusive Measurement:

• Featuring a clamp design, the logger allows for non-intrusive measurement around conductors, eliminating the need for direct contact with live wires. This enhances safety and simplifies the measurement process.

High Resolution and Accuracy:

• Equipped with high resolution and accuracy, the KEW 2510 ensures precise measurement of DC milliamp currents, making it suitable for applications with stringent accuracy requirements.

Data Logging Capability:

• The logger includes data logging capabilities, allowing users to continuously log current measurements over time. This feature is valuable for monitoring trends, troubleshooting, and generating comprehensive reports.

Selectable Time Intervals:

• Users can choose selectable time intervals for data logging, providing flexibility in capturing data points based on the specific requirements of the application.

Large LCD Display:

• The logger features a large and clear LCD display, providing real-time readings and facilitating quick data interpretation. The display ensures visibility in various lighting conditions.

Auto Power Off:

• The auto power-off function helps conserve battery life by turning off the logger automatically when not in use. This extends the operational time between battery replacements.

DC MILLIAMP CLAMP LOGGER KEW 2510 Specifications :

• AC A : 20/100mA(Auto ranging) ±0.2%rdg±5dgt (0.00mA - 21.49mA)±1.0%rdg±5dgt (21.0mA - 120.0mA)

• Conductor size : φ6mm max.
• Analog output Recorder: DC1000mV against DC100mA
• Applicable standards : IEC 61010-1, Pollution degree 2, IEC 61010-2-032, IEC 61326-1(EMC), IEC 60529 IP40, EN50581(RoHS)

• Operating temperature & humidity range: -10 - +50℃ <85%
• Storage temperature & humidity range : -20 - +60℃ <85%
• Power source : R6/LR6(AA) (1.5V) x4 (Alkaline LR6 is recommended.)
  External supply (AC adapter MODEL8320)
• Communication interface : Bluetooth Ver2.1+EDR Class2
• Dimensions / Weight : 111(L)x61(W)x46(D)mm /Approx. 310g(including batteries)
• Optional Accessories : 7256(Output cord)
