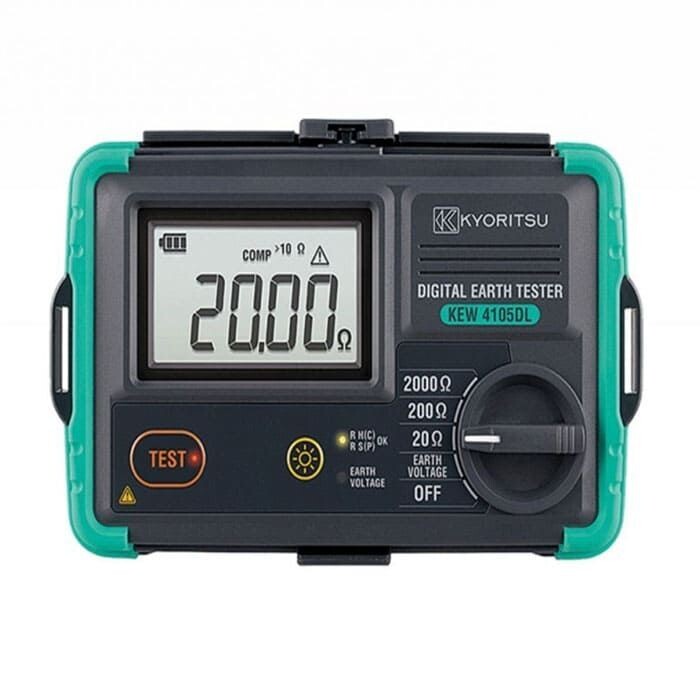

EARTH TESTER KYORITSU KEW 4105DL

EARTH TESTER KYORITSU KEW 4105DL

The KYORITSU KEW 4105DL Earth Tester is a specialized instrument designed for professionals involved in the measurement of ground resistance. With advanced features and precise measurement capabilities, this earth tester ensures accurate assessments of the grounding systems in various applications.

The KYORITSU KEW 4105DL Earth Tester is a reliable and specialized tool for professionals involved in ground resistance measurement. Its advanced features, digital display, and safety considerations make it an indispensable instrument for ensuring the effectiveness of grounding systems in various applications.

EARTH TESTER KYORITSU KEW 4105DL Applications :

Grounding System Testing:

• Essential for testing and verifying the effectiveness of grounding systems in electrical installations to ensure safety and compliance with standards.

Telecommunication Towers:

• Applicable for measuring ground resistance in telecommunication towers and infrastructure to maintain reliable communication systems.

Power Substations:

• Crucial for testing ground resistance in power substations to ensure the integrity of the grounding system and prevent electrical hazards.

Lightning Protection Systems:

• Ideal for assessing the ground resistance of lightning protection systems to safeguard structures and equipment from lightning-induced damage.

EARTH TESTER KYORITSU KEW 4105DL Key Features :

Ground Resistance Measurement:

• The KEW 4105DL is specifically designed for measuring ground resistance, providing essential data for assessing the effectiveness of grounding systems in electrical installations.

Selectable Test Frequencies:

• Featuring selectable test frequencies, the earth tester accommodates different applications and soil conditions. This flexibility ensures accurate measurements in diverse environments.

Digital Display:

• Equipped with a digital display, the instrument provides clear and easy-to-read ground resistance values. The display may also include additional information such as test frequency and measurement units.

Automatic Range Selection:

• The automatic range selection function simplifies the testing process by automatically choosing the appropriate measurement range. This ensures accurate readings without the need for manual adjustments.

Memory Function:

• The earth tester may include a memory function to store and recall measurement results. This feature is valuable for documenting measurements and tracking changes over time.

Safety Features:

• Designed with safety in mind, the KEW 4105DL may include features such as overcurrent protection and safety ratings to ensure the safety of both the operator and the instrument.

EARTH TESTER KYORITSU KEW 4105DL Specifications :

• Measuring range:0.00 – 2000 Ω
• Display range:20Ω: 0.00 – 20.99 Ω,200Ω: 0.0 – 209.9 Ω,2000Ω: 0 – 2099 Ω
• Accuracy: 20Ω: ±1.5%rdg±0.08 Ω,200Ω and 2000Ω: ±1.5%rdg±4dgt
• Auxiliary earth resistance:20Ω: <10 kΩ,200Ω: <50 kΩ,2000Ω: <100 kΩ
• Comparator reference value:20Ω: 10 Ω,200Ω: 100 Ω,2000Ω: 500 Ω
• Measuring range:0.0 – 300.0 V AC (45 – 65Hz) / ±0.0 – ±300.0 V DC
• Display range:0.0 – 314.9 V
• Accuracy:±1%rdg±4dgt
• Dimensions:121(L) × 188(W) × 59(H)mm (including case lid)
• Weight:Approx. 690g (including batteries and case lid)
• Applicable Standards : IEC 61010-1 CAT Ⅳ 100V / CAT Ⅲ 150V / CAT Ⅱ 300V Pollution degree 3
