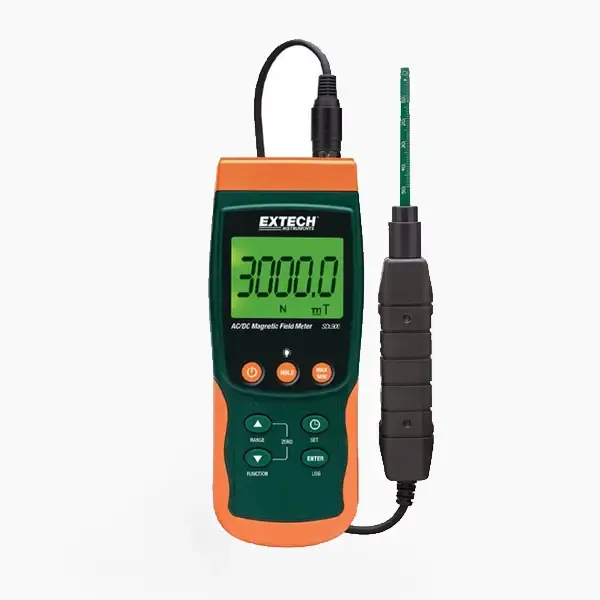

Extech SDL900 AC/DC Magnetic Meter/Datalogger
2,523.00 AED
In stock
Product Details
Extech SDL900
The Extech SDL900 is a sophisticated AC/DC magnetic field meter and datalogger designed for professionals who need precise measurements of magnetic fields. This versatile instrument is particularly useful in environments where magnetic field exposure is a concern, such as in electrical engineering, industrial applications, and research settings.
Key Features
- Dual Measurement Capability: The SDL900 measures both AC and DC magnetic fields, providing readings in Gauss (G) and milliTesla (mT). This dual functionality allows users to assess a wide range of magnetic field strengths.
- Hall Effect Sensor: Utilizing a Hall effect sensor with automatic temperature compensation (ATC), the SDL900 ensures accurate readings across varying environmental conditions, enhancing reliability in diverse applications.
- Adjustable Data Sampling Rate: Users can set the data sampling rate from 1 to 3600 seconds, allowing for customized monitoring based on specific needs. This flexibility is crucial for long-term studies or monitoring fluctuating magnetic fields.
- Datalogging Capability: The SDL900 can store up to 99 readings manually and features a datalogging function that records measurements with date and time stamps on an included SD card. The data can be exported in Excel® format, facilitating easy analysis and reporting.
- User-Friendly Interface: The meter includes features such as a zero button for DC measurements, data hold, and min/max value tracking. An N pole/S pole indicator helps users identify the direction of the magnetic field.
- Connectivity Options: The device is equipped with an RS-232 interface for connection to optional software, enhancing data management and analysis capabilities.
The SDL900 comes complete with a uniaxial magnetic probe sensor with a protective cover, an SD memory card for data storage, six AA batteries, and a hard carrying case for easy transport and protection.
The Extech SDL900 AC/DC Magnetic Meter/Datalogger is a reliable and versatile tool for anyone needing to measure and log magnetic fields accurately. Its combination of advanced features, user-friendly design, and robust data management capabilities makes it an essential instrument for professionals in various fields, from electrical safety assessments to scientific research.
Extech SDL900 Specifications
| General Specifications | |
| Electromagnetic Field (Gauss) | AC: 1500.0G, 15,000G; DC: 3000.0G, 30,000G |
| Electromagnetic Field (Gauss) Basic Accuracy | AC: ±(5% of reading + 20 digits); DC: ±(5% of reading + 10 digits) |
| Electromagnetic Field (Gauss) Max Resolution | 0.1G, 1G |
| Electromagnetic Field (Tesla) | AC: 150.00mT, 1500.0mT; DC: 300.00mT, 3000.0mT |
| Electromagnetic Field (Tesla) Basic Accuracy | AC: ±(5% of reading + 20 digits); DC: ±(5% of reading + 10 digits) |
| Electromagnetic Field (Tesla) Max Resolution | 0.01mT, 0.1mT |
| Frequency Bandwidth | 50Hz/60Hz |
| Memory | SD card (included) |
| Number of Axes | Uniaxial |
| Sampling Rate | 1 to 3600 seconds |
| Additional Details
|
|
| Certifications | CE |
| Dimensions | 7.1 × 2.9 × 1.9" (182 × 73 × 48mm) |
| Weight | 10.7oz (303g) |
