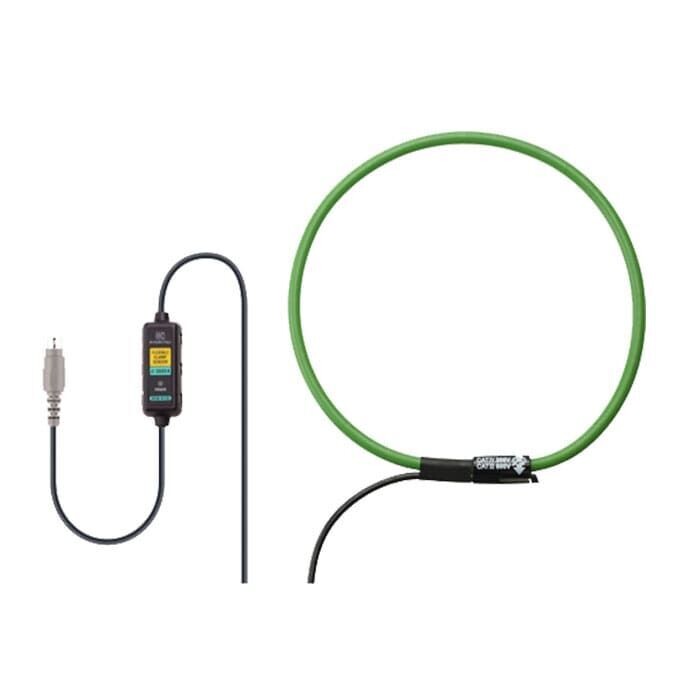

FLEXIBLE CLAMP SENSOR KYORITSU 8133

FLEXIBLE CLAMP SENSOR KYORITSU 8133

The Kyoritsu 8133 Flexible Clamp Sensor is an innovative and versatile accessory designed to enhance the current measurement capabilities of compatible instruments. With its flexible design, this clamp sensor offers increased accessibility and convenience for professionals conducting current measurements in various electrical applications.

The Kyoritsu 8133 Flexible Clamp Sensor is a valuable accessory for professionals requiring enhanced flexibility and accessibility in current measurements. Its innovative design, compatibility with Kyoritsu instruments, and accuracy make it an essential tool for a wide range of electrical applications.

FLEXIBLE CLAMP SENSOR KYORITSU 8133 Applications

Electrical Troubleshooting:

• Ideal for professionals conducting electrical troubleshooting by providing a flexible and convenient solution for current measurements in complex circuits.

Panel Board Monitoring:

• Suitable for monitoring current in panel boards and distribution systems, offering enhanced flexibility for accessing different conductors.

Industrial Maintenance:

• Applicable in industrial maintenance tasks where precise and flexible current measurements are required in tight spaces or challenging environments.

Field Service:

• Handy for field service technicians who need a versatile and portable current measurement solution for various on-site applications.

FLEXIBLE CLAMP SENSOR KYORITSU 8133 Key Features :

Flexible Design:

• The 8133 features a flexible clamp design, allowing it to bend and adapt to the shape of conductors or cables. This flexibility enhances the ease of use and accessibility in challenging or confined spaces.

Wide Current Measurement Range:

• With a wide current measurement range, the flexible clamp sensor accommodates various current levels. This versatility makes it suitable for a broad range of applications, from low to high currents.

Easy Installation:

• The clamp sensor is designed for easy installation, allowing users to quickly and securely attach it to conductors without the need for additional tools. This facilitates efficient setup and reduces measurement time.

Compatible with Multiple Instruments:

• The 8133 is designed to be compatible with a range of Kyoritsu instruments, expanding the capabilities of these devices for current measurements. This compatibility provides users with a flexible and modular solution.

Current Measurement Accuracy:

• Engineered for accurate current measurements, the flexible clamp sensor ensures reliable readings for various electrical applications. This accuracy is crucial for diagnostic and troubleshooting purposes.

Compact and Portable:

• The compact and portable design of the clamp sensor enhances its usability in diverse environments. Its lightweight construction adds to the convenience of carrying it to different job sites.

FLEXIBLE CLAMP SENSOR KYORITSU 8133 Specifications :

• Applicable model:5050, 6305, 6315
• Conductor size:max.Ø170mm
• Rated current: AC 3000A
• Output voltage:AC 500mV / 3000A (AC 0.167mV/A)
• Accuracy: ±1.0%rdg±0.5mV (45Hz – 65Hz)
  ±1.5%rdg±0.5mV (40Hz – 1kHz)
• Phase shift:within ±2.0° (45Hz – 65Hz)
  within ±3.0° (40Hz – 1kHz)
• Cable length: Approx. 3m
• Output connector: MINI DIN 6PIN
• Output impedance: 100Ω or less
• Applicable standards: IEC 61010-1,
  IEC 61010-2-032 CAT IV 300V / CAT III 600V Pollution degree 2,
  IEC 61326
• Operating temperature & humidity range: -10 – 50°C, relative humidity 85% or less (no condensation)
• Weight : Approx. 200g
