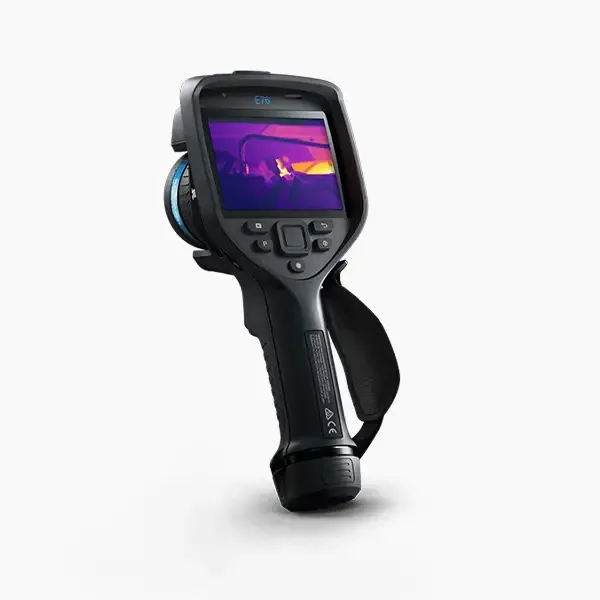

FLIR E76 Advanced Thermal Imaging Camera
FLIR E76 Advanced Thermal Imaging Camera
The FLIR E76 provides comprehensive coverage of both nearby and distant targets with its various lens options. Upgrading from the FLIR E54, the E76 features laser-assisted autofocus and three area measurement boxes. Its 320×240 thermal resolution delivers sharp, vibrant images, further enhanced by the patented FLIR MSX® technology for increased detail and perspective.
The built-in FLIR Inspection Route enables pre-planned routes, helping you stay organized while surveying large or multiple locations. FLIR Ignite allows automatic uploading of E76 images directly from the camera to the cloud, ensuring easy and secure storage and sharing.
FLIR E76 Key Features
- Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and a report generation feature all help the E76 streamline your workday.
- Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
- Telephoto, standard, and wide-angle AutoCal™ lenses help users survey large targets quickly, check machines for signs of failure, or inspect electrical systems safely.
FLIR E76 Specifications
| Category | Specification | Details |
|---|---|---|
| IMAGING & OPTICAL | IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity/NETD | <40 mK at 30°C (86°F) | |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading | |
| Digital Camera | 5 MP, with built-in LED photo/video lamp | |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation | |
| Storage Media | Removable SD card | |
| Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava | |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm | |
| Digital Zoom | 1-4× continuous | |
| f-number | 1.3 | |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual | |
| Image Frequency | 30 Hz | |
| Lens Identification | Automatic | |
| Minimum Focus Distance | 0.15 m | |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi | |
| Picture-in-Picture | Resizable and movable | |
| Radiometric IR video recording | Real-time radiometric recording (.csq) | |
| Radiometric IR video streaming | Yes, over UVC |
