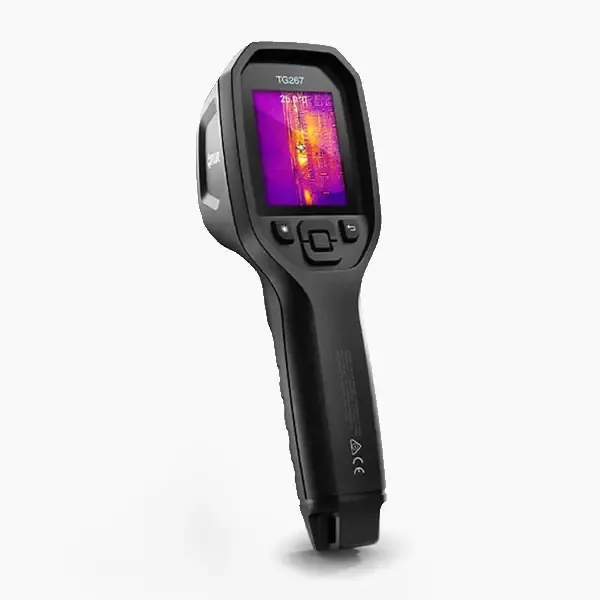

FLIR TG267 Thermal Camera
Introduction of FLIR TG267
The FLIR TG267 Thermal Camera is an advanced tool used across various industries to detect temperature anomalies and pinpoint potential issues. With its sleek 2.4-inch screen, this modern thermal camera is perfect for commercial electrical work, facility maintenance, and HVAC applications. It reduces diagnosis time and simplifies repair and maintenance reporting.
Accurate Temperature Readings: The FLIR TG267 Thermal Camera is engineered to provide precise temperature measurements, making it an excellent tool for detecting anomalies and identifying potential issues before they escalate. Superior Image Quality: Equipped with a high-resolution thermal sensor, the FLIR TG267 captures detailed images with accurate temperature data, simplifying the identification and analysis of temperature anomalies for users.
FLIR TG267 Key Features
- Experience the difference you can make with a true 160 × 120 IR pixel imager (19,200 pixels)
- Measure a wide range of temperatures: -25°C to 380°C (-13°F to 716°F)
- Add contact-measurement readings with the included Type-K thermocouple (up to 260°C/500°F)
- Identify the exact area that you’re measuring using the bullseye laser pointer
FLIR TG267 Specifications
| Category | Specification |
| IMAGING & OPTICAL | |
| IR Resolution | 160 × 120 pixels |
| Thermal Sensitivity/NETD | <70 mK |
| Field of View (FOV) | 57° × 44° |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging), Visual with temperature reading |
| Display | 320 × 240 pixel, 2.4 in color LCD |
| Storage Media | eMMC 4 GB |
| Built-in Digital Camera | Yes |
| Color Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| MEASUREMENT & ANALYSIS | |
| Accuracy | ±1.5°C (2.7°F) for 50°C to 100°C (122°F to 212°F); ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F) |
| Object Temperature Range | -25°C to 380°C (-13°F to 716°F) |
| Camera Size (L x W x H) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| USER INTERFACE | |
| Languages | Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish |
| POWER | |
| Battery Type | Rechargeable Li-ion battery |
| Battery Charge Life | 30 days minimum |
| Battery Operating Time | 5 hours continuous scanning, 4.5 hours with laser on |
| ENVIRONMENTAL & CERTIFICATIONS | |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Drop Test | Designed for 2 m (6.6 ft) |
| Encapsulation | IP 54 (IEC60529) |
| GENERAL | |
| Includes | TG267, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch |
