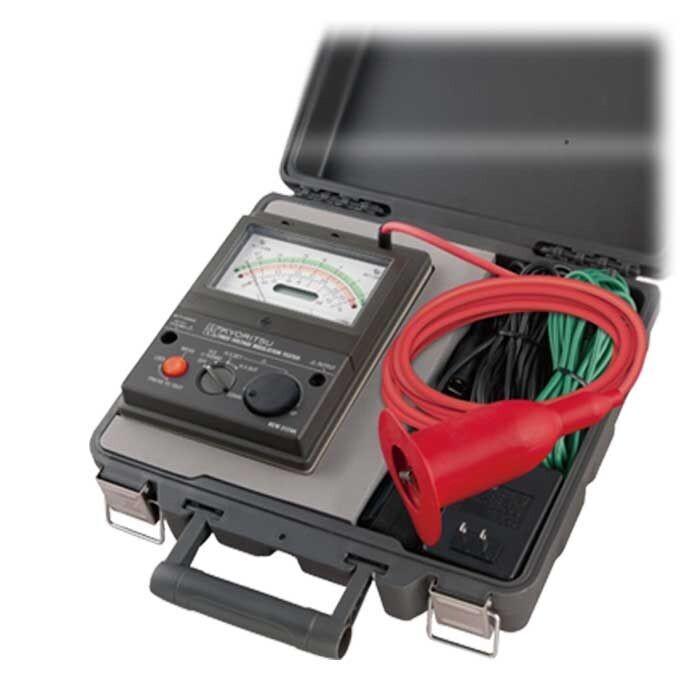

HIGH VOLTAGE INSULATION TESTER KEW 3124A

HIGH VOLTAGE INSULATION TESTER KEW 3124A

he Kyoritsu KEW 3124A High Voltage Insulation Tester is an advanced instrument designed for testing and ensuring the insulation integrity of high-voltage electrical systems. This tester is a reliable solution for professionals seeking precise measurements and enhanced safety during insulation testing.

The Kyoritsu KEW 3124A High Voltage Insulation Tester is a dependable tool for professionals engaged in high-voltage electrical testing. Its precise measurements, user-friendly design, and safety features make it an indispensable instrument for ensuring the integrity of insulation in critical electrical systems.

HIGH VOLTAGE INSULATION TESTER KEW 3124A Application :

Power Generation and Distributions:

• Ideal for testing insulation resistance in high-voltage power generation and distribution systems to ensure reliability and prevent electrical failures.

Industrial Machinery:

• Suitable for assessing insulation integrity in high-voltage industrial machinery, contributing to efficient and safe operation.

Transformer Testing:

• Crucial for evaluating the insulation of transformers, identifying potential issues before they lead to malfunctions or failures.

Electrical Maintenance:

• Essential for routine maintenance and troubleshooting of high-voltage electrical installations to ensure ongoing reliability.

HIGH VOLTAGE INSULATION TESTER KEW3124A Key Features :

High Voltage Testing Capability:

• The KEW 3124A is engineered for high-voltage insulation testing, enabling professionals to assess the insulation resistance of electrical components and systems operating at elevated voltages.

Wide Insulation Resistance Range:

• With a wide range of insulation resistance measurements, this tester accommodates various electrical installations and equipment types. Its versatility makes it suitable for diverse applications in different industries.

Multi-Test Voltage Levels:

• The tester offers multiple test voltage levels, providing flexibility to conduct insulation tests at different voltages. This feature is crucial for evaluating insulation resistance under varying conditions.

User-Friendly Interface:

• Featuring a user-friendly interface with a clear display and intuitive controls, the KEW 3124A ensures ease of operation. This makes it accessible to technicians and engineers with varying levels of expertise.

User-Friendly Interface:

• Featuring a user-friendly interface with a clear display and intuitive controls, the KEW 3124A ensures ease of operation. This makes it accessible to technicians and engineers with varying levels of expertise.

Data Logging and Storage:

• The tester may include data logging capabilities, allowing users to store and retrieve test results. This feature facilitates record-keeping and trend analysis over time.

Safety Compliance:

• Designed with safety as a priority, the KEW 3124A complies with relevant safety standards, providing assurance during high-voltage testing operations.

HIGH VOLTAGE INSULATION TESTER KEW 3124A Specifications :

• est voltage =(variable) 1k-10kV*1: 1000V
• Measuring ranges
  (Automatic change) =1.6GΩ/100GΩ (Auto ranging): 100MΩ
• Other ranges accuracy= ±1% of scale length*2 ±1% of scale length
• Open circuit voltage ±2% ±10%
• Output voltage and set voltage indicate: DC 0-10kV ±2%rdg±2dgt
• Power source: Ni-MH (1.2V) ×8 / External supply DC 15V
• There ranges accuracy : ±1% of scale length*2 ±1% of scale length
• Dimensions : 200(L) × 140(W) × 80(D) mm
• Weight : 1.5kg approx.
