HIOKI 3280-10F AC CLAMP METER

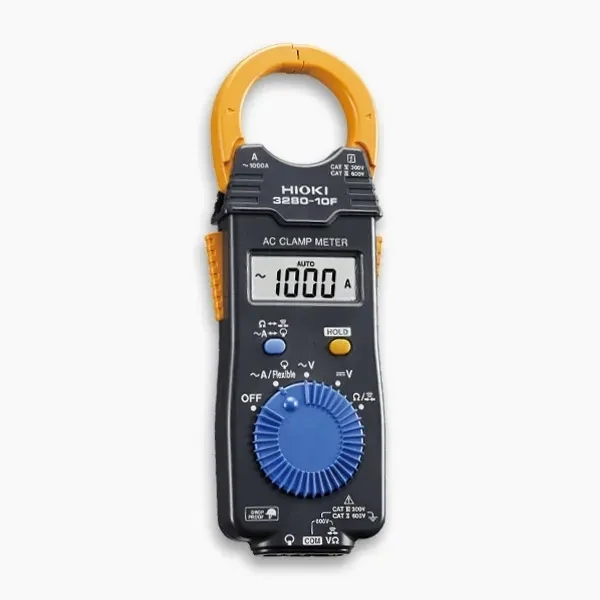

Hioki 3280-10F AC Clamp Meter
Hioki clamp meters represent top-tier measuring tools that seamlessly integrate Hioki's proficiency in current sensing technology. The 3280-10F stands out as an AC clamp meter with an average rectifying capability of 1000A, boasting an extensive operational temperature spectrum spanning from -25°C to 65°C. Designed with a slim and compact clamp core, it also offers the convenience of an optional flexible current sensor attachment, allowing you to access even the most confined spaces.
Aside from measuring AC current, these clamp meters also offer capabilities for voltage and resistance measurement, along with the added functionality of continuity checks. Their compact form factor, sleek design, and resilience against rugged handling and extreme temperatures collectively establish them as indispensable tools for electricians across various applications.
To buy hioki 3280-10f be in touch with our experts. We offer various models of Hioki products on our website which you can compare from different sides and choose the best one for your requirement.
Hioki 3280 10F Features
- Measure the fundamental waveform component using the average rectified method
- Expanded -25°C to 65°C operating temperature range
- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
- Drop proof design withstands drop from a height of 1 meter
Related Products
Hioki 3280 10F Specifcations
| AC Current range |
41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified), |
| Basic accuracy: ±1.5 % rdg. ±5 dgt. |
|
| DC Voltage range |
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
| AC Voltage range |
4.199 V to 600 V, 4 ranges |
| (45 to 500 Hz, Average rectified), |
|
| Basic accuracy: ±1.8 % rdg. ±7 dgt. |
|
| Crest factor |
N/A |
| Resistance range |
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. |
| Other functions |
Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
| Display |
LCD, max. 4199 dgt., Display refresh rate: 400 ms |
| Environmental protection |
IP40 dustproof and waterproof |
| Power supply |
Coin type lithium battery (CR2032) ×1, Continuous use 120 hours |
| Core jaw dia. |
φ 33 mm (1.30 in) |
| Dimensions and mass |
57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz) |
| Included accessories |
CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1 |
