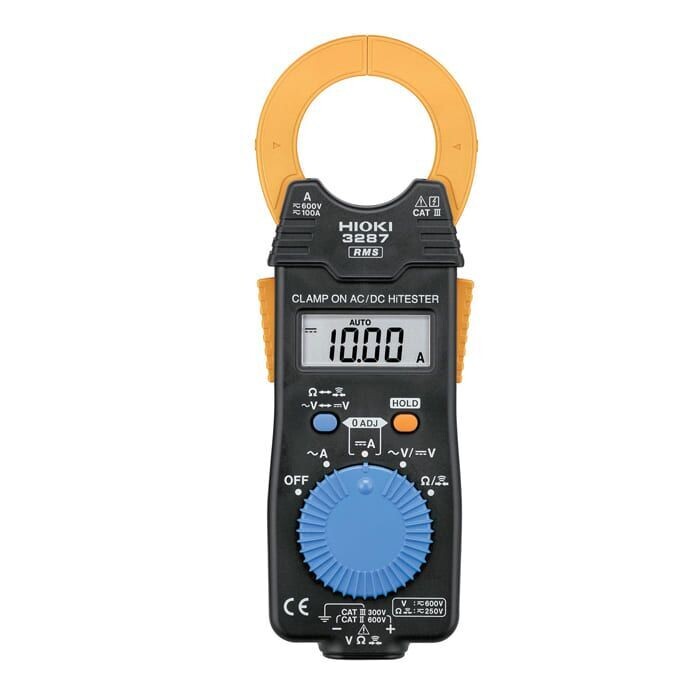

HIOKI 3287 CLAMP ON AC/DC HiTESTER
+3
+2

HIOKI 3287 CLAMP ON AC/DC HiTESTER

Store / Electrical
1,048.00 AED
In stock
Product Details
Brand: Hioki
Jaw Diameter: φ 35 mm (1.38 in)
AC Current Range: 10.00/ 100.0 A
DC Current Range: 10.00/ 100.0 A
AC Voltage Range: 4.199 V to 600 V
DC Voltage Range: 419.9 mV to 600 V
Applicable model: 419.9 Ω to 41.99 MΩ
Dimension: 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm D

HIOKI 3287 CLAMP ON AC/DC HiTESTER

The Hioki clamp meters stand out as superior measuring instruments, integrating Hioki's extensive knowledge in current sensing technology. Specifically, the Hioki 3287 is an AC/DC current and voltage clamp meter equipped to measure continuity and resistance. Noteworthy for its double jaw lever and slim profile, it facilitates convenient access to congested wire setups.

LR8513 Features

  • Accurately measure even small currents with 10 A range
  • Voltage, resistance, and continuity check functions

Hioki LR8513 Specifications

DC Current range 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC Current range 10.00/ 100.0 A (10 Hz to 1 kHz, True RMS)
Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC Voltage range 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC Voltage range 4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS)
Basic accuracy: ±2.3 % rdg. ±8 dgt.
Resistance range 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt
Crest factor 2.5 or less (150 A, 1000 V max.)
Other functions Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 25 hours
Core jaw dia. φ 35 mm (1.38 in)
Dimensions and mass 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 170 g (6.0 oz)
Included accessories Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1
