Hioki 3030-10 Hitester
259.00 AED
In stock
Product Details
Brand:
Hioki
AC Voltage Range:
12 V (9 kΩ/V) Accuracy: ±4 % f.s. 30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s.
DC Voltage Range:
0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V)
DC Current Range:
60 µA/30 m/300 mA (300 mV internal voltage drop)
AC Voltage Overload Protection:
Protected against transient voltages up to 250 V AC, preventing electric shock accidents before they can happen
Resistance Range:
0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k
Power:
For resistance measurement range, R6P (AA) ×2 batteries
Dimension:
95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz)
Hioki 3030-10

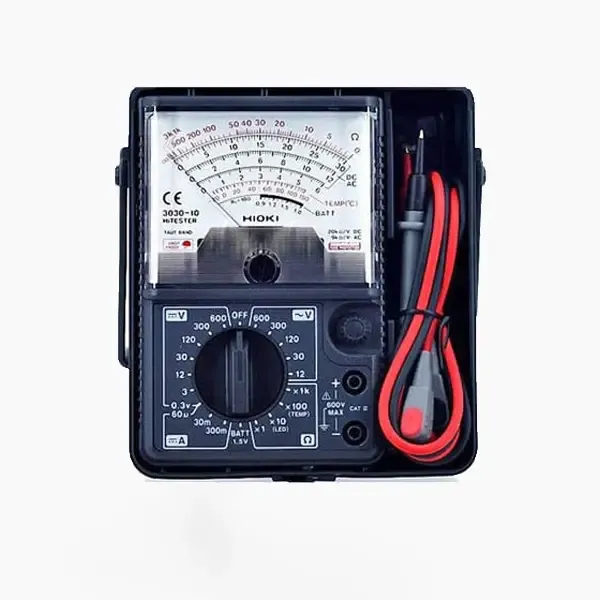

The Hioki 3030 10 HiTester is a robust and reliable analog multimeter designed for measuring voltage, current, and resistance. Here are some key features and benefits of this versatile tool:
Key Features
- Durable Design: The 3030-10 is built to withstand a drop from a height of 1 meter onto a concrete floor, making it highly durable for field use12.
- Measurement Capabilities: It can measure DC voltage (0.3 V to 600 V), AC voltage (12 V to 600 V), and resistance (up to 3 kΩ) with high accuracy12.
- Safety: Rated for CAT III 600 V, ensuring safe operation in various electrical environments1.
- Battery and LED Check: Includes features for checking battery status and LED functionality1.
- Compact and Lightweight: With dimensions of 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D and a weight of 280 g (9.9 oz), it is easy to carry and handle12.
Applications
The Hioki 3030-10 is ideal for:
- Electrical Maintenance: Perfect for routine checks and troubleshooting in electrical systems.
- Education: A great tool for teaching and learning basic electrical measurements.
- Field Work: Its rugged design makes it suitable for use in various field conditions12.
Accessories: Comes with test leads, a spare fuse, R6P (AA) manganese batteries, an instruction manual, and a carrying case12.
Temperature Measurement: Although it includes a temperature measurement scale, the optional Thermistor Temperature Probe 9021-01 has been discontinued1.
Overall, the Hioki 3030-10 HiTester is a reliable and durable analog multimeter, perfect for a wide range of applications from educational purposes to professional electrical maintenance.
Hioki 3030-10 Specifications
| DC voltage range | 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V) | |||||
| Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V | ||||||
| AC voltage range | 12 V (9 kΩ/V) Accuracy: ±4 % f.s. | |||||
| 30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s. | ||||||
| Average rectifier effective value, Max. rated voltage: 600 V | ||||||
| DC current range | 60 µA/30 m/300 mA (300 mV internal voltage drop) | |||||
| Accuracy: ±3 % f.s. | ||||||
| Resistance range | 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k | |||||
| Accuracy: ±3 % of scale length | ||||||
| Battery check | 0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s. | |||||
| Temperature scale | Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers. | |||||
| Power supply | For resistance measurement range, R6P (AA) ×2 batteries | |||||
| Dimensions and mass | 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz) | |||||
| Included accessories | Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1 | |||||
