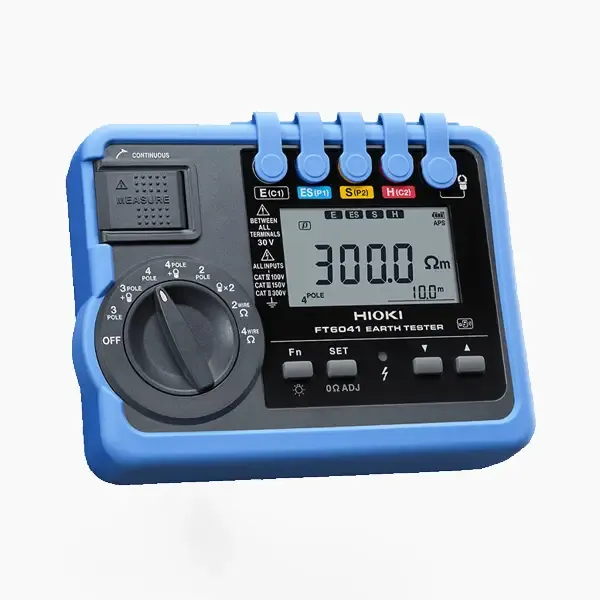

Hioki FT6041 Earth Tester
Hioki FT6041 Earth Tester
The Hioki FT6041 Earth Tester is a specialized device designed for measuring ground resistance, essential for ensuring the safety and reliability of electrical installations. This Hioki earth tester is known for its precision, ease of use, and robust design, making it a valuable tool for electricians and engineers.
The Hioki FT6041 Earth Tester is distinguished by its durability and robust design, capable of functioning in extreme temperatures ranging from -25°C to 65°C. It is also drop-proof, able to withstand falls from up to 1 meter when the protector is attached. The device features outstanding noise resistance and includes unique capabilities that help shorten work times and lessen the operator's workload.
Hioki FT6041 Key Features
- Compatible with 4-pole method
- Measure ground resistance without disconnecting ground electrodes
- IP67 protected, built tough to withstand use at harsh sites
- Make measurements, even on concrete by using Earth Nets Module
- Fast measurement! Cord rewinding that doesn’t tangle or twist
- Clamp sensor (optional) to fit both narrow and wide bus bars
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file.
Hioki FT6041 Specifications
| Measurement parameters | • Ground resistance measurement: 4-pole method, 3-pole method, 2-pole method, MEC function, clamp-on measurement (two clamps) • Soil resistivity measurement: 4-pole method • Low-resistance measurement: 4-terminal method, 2-terminal method • Ground potential measurement |
|---|---|
| Ground potential | 0 to 30.0 V RMS, accuracy: ±2.3% rdg. ±8 dgt. (50/60 Hz), ±1.3% rdg. ±4 dgt. (DC) |
| Functions | Live wire warning, auto power save, soil resistivity display (4-pole method only), zero-adjustment, auto-hold, continuous measurement mode, wireless communication (only when Z3210 is connected), buzzer sound, comparator, switching the display, ground potential overload display (when measuring ground resistance) |
| Operating temperature and humidity | -25°C to 65°C (*1) (non-condensing) |
| Storage temperature and humidity | -25°C to 65°C: 80% RH or less (non-condensing) |
| Dustproof and waterproof | IP65, IP67 (EN60529) |
| Standards | EN61010 (safety), EN61326 (EMC), EN61557-1/EN61557-10/EN61557-14 (low-resistance measurement, earth testers), EN61557-5 (earth testers) |
| Power supply | HR6 nickel-metal hydride battery x 4 or LR03 alkaline battery × 4 |
| Number of measurements per battery charge (*2) | 500 times (3-pole method, without Z3210 installed) 400 times (3-pole method, with Z3210 installed and using wireless communication) |
| Dimensions and weight | Approx. 189 mm (7.44 in.)W × 148 mm (5.83 in.) H × 48 mm (1.89 in.) D, approx. 765 g (26.98 oz.) (including battery, protector) |
| Included accessories | Auxiliary Earthing Rod L9840 (2 piece set) ×2, Measurement Cable L9845-31 ×1, Measurement Cable L9845-33 ×1, Measurement Cable L9845-52 ×1, Measurement Cable L9841 ×1, Test Lead L9787 ×1, Earth Nets Module L9846 ×2, Carrying Case C0208 ×1, Carrying Case C0209 ×1, Protector ×1, LR6 Alkaline battery ×4, Instruction manual ×1, Operating precautions ×1 |
