Hioki LR5001 Humidity Logger
0.00 AED
In stock
Product Details
Brand:
Hioki
Humidity Range:
0 to 100% RH at sensor environment
Temperature Range:
-40.0°C to 85.0°C
Measurement Units:
°C, % rh
Response Time:
Approximately 300 seconds
Sensor Type:
LR9504
Dimension:
79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D
Power Supply:
LR6 (AA) Alkaline battery (built-in internal) × 1, Humidity Sensor LR9504 × 1, Instruction manual × 1, Operation guide × 1, Kickstand × 1
Hioki LR5001

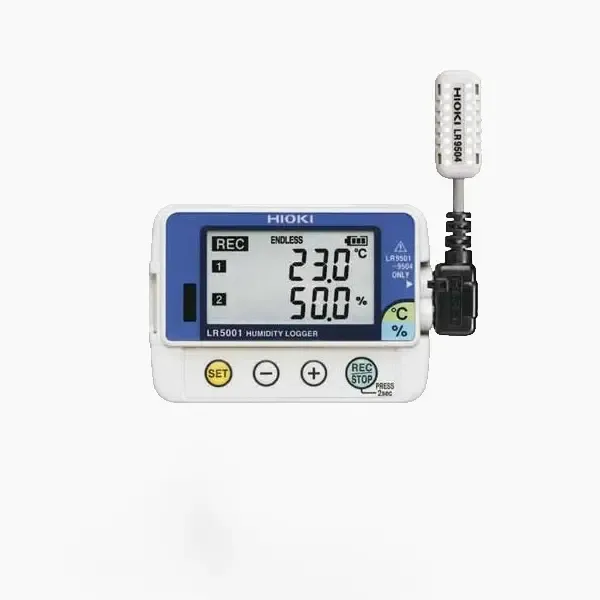

The Hioki LR5001 Humidity Logger is a compact, versatile, and highly reliable data logger designed to measure and record temperature and humidity with precision. Here are some key features and benefits of this exceptional device:
Key Features
- Dual-Channel Logging: The LR5001 can simultaneously log temperature and humidity over two channels, providing comprehensive environmental data12.
- High Memory Capacity: With a memory capacity of 60,000 data sets per channel, it ensures extensive data recording without the need for frequent downloads12.
- Fast Sampling Rate: Capable of recording data at intervals as short as 1 second, it captures rapid changes in environmental conditions12.
- Wide Measurement Range: Measures temperatures from -40 to 185°F (-40 to 85°C) and humidity from 0 to 100% RH, making it suitable for a variety of applications2.
- User-Friendly Design: Lightweight and pocket-sized, the LR5001 is easy to mount in tight spaces and convenient to carry around1.
- Data Integrity: Ensures data is preserved even if the battery dies or is replaced, providing peace of mind during long-term monitoring1.
- Easy Data Transfer: Data can be transferred to a PC even during recording, and the device supports battery replacement without interrupting the recording process1.
Applications
Environmental Monitoring: Perfect for tracking temperature and humidity in various environments such as laboratories, storage facilities, and greenhouses.
Industrial Use: Suitable for monitoring conditions in manufacturing processes and ensuring optimal conditions for sensitive equipment.
Building Management: Helps in maintaining comfortable and safe conditions in residential and commercial buildings12.
Additional Information:
Optional Accessories: Communication Adapter LR5091 or Data Collector LR5092-20 is necessary to transfer data from the LR5001 to a PC1.
Durability: Built to withstand harsh conditions, ensuring reliable performance in various environments1.
Overall, the Hioki LR5001 Humidity Logger is a powerful tool for anyone needing precise and reliable environmental data logging. Its ease of use, high capacity, and robust design make it an excellent choice for a wide range of applications.
Hioki LR5001 Specifications
| Measurement items | Temperature 1 ch and Humidity 1 ch (Requires included or optional humidity sensor) | |||||
| Measurement range | Temperature: -40.0°C to 85.0°C, Humidity: 0 to 100% RH at sensor environment | |||||
| Basic accuracy | [Temperature] : ±0.5 °C (main unit + sensor accuracy, at 0.0 to 35.0 °C) | |||||
| [Humidity] : ±5 % rh (main unit + temperature / humidity sensor LR950x combination, at 20 to 30 °C / 10 to 50 % rh) | ||||||
| Note: Basic accuracy is typical value, refer to the detailed catalog | ||||||
| Storage capacity | Instantaneous value mode: 60,000 data/ch, Statistical value mode: 15,000 data/ch | |||||
| Recording interval | 1 to 30 sec., 1 to 60 min., 15 selections | |||||
| Recording modes | Instantaneous recording: at every recording interval | |||||
| Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval | ||||||
| Recording methods | One-time recording: Stop recording when the memory capacity is full | |||||
| Endless recording: Continue recording even when the memory capacity is full (old data is overwritten) | ||||||
| Start: Logger button operation or scheduled time | ||||||
| Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording) | ||||||
| Other functions | Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low | |||||
| Note: After batteries are replaced within 30 seconds, recording resumes automatically (Recording is interrupted during battery replacement) | ||||||
| Waterproof and dust-proof | IP54 (EN60529) (with sensor connected, but not including sensor tip) | |||||
| Interfaces | Infrared optical communications with LR5091, LR5092-20 | |||||
| Power supply | LR6 (AA) Alkaline battery × 1, Battery life: Approx. 3 months (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 20 days (Instantaneous recording, with 1-second interval at 20 °C) | |||||
| Dimensions and mass | 79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz) | |||||
| Included accessories | LR6 (AA) Alkaline battery (built-in internal) × 1, Humidity Sensor LR9504 × 1, Instruction manual × 1, Operation guide × 1, Kickstand × 1 | |||||
