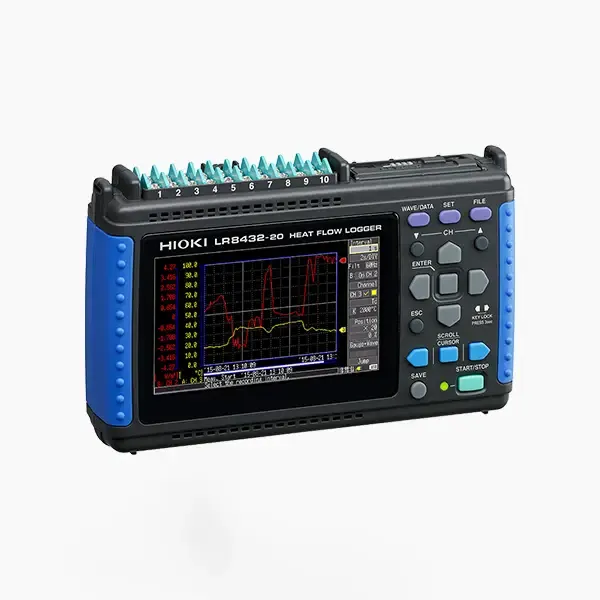

Hioki LR8432 Heat Flow Logger
0.00 AED
In stock
Product Details
Brand:
Hioki
Input system/ Number of input channels:
Analog inputs: 10 channels, isolated (M3 mm dia. screw terminal block), Input impedance: 1 MΩ (when measuring heat flow, voltage, or temperature with a thermocouple and the burn-out detection is off)
Temperature:
-200˚C to 2000˚C (-328˚F to 3632˚F)
Analog inputs :
[Voltage measurement range] ±10 mV to ±60 V, 1-5V, Max. resolution 500 nV, −200 ˚C to 1800 ˚C (depending on sensor), thermocouples (K, J, E, T, N, R, S, B), Max. resolution 0.1 ˚C
Pulse inputs :
4 pulse input channels (requires CONNECTION CABLE 9641, all pulse inputs share common ground with the main unit), 0 to 1000M (count) (No-voltage ‘a’ contact, open collector or voltage input)
Recording intervals :
10 ms to 1 hour, 19 selections (All input channels are scanned at high speed during every recording interval)
Selectable filters :
50 Hz, 60 Hz, or OFF (digital filtering of high frequencies on analog channels)
Memory capacity :
Internal storage: 3.5 M-words, External storage: CF card or USB memory stick (only the HIOKI CF cards are guaranteed for correct operation)
External interface :
USB 2.0 mini-B receptacle ×1; Functions: Control from a PC, Transfers files from the installed CF card to a PC
Calculation range:
After stopping: all data in internal buffer memory or between AB cursors While measuring: all data in internal buffer memory
Selectable filters:
50 Hz, 60 Hz, or off (digital filtering of high frequencies on analog channels)
Display:
4.3-inch WQVGA-TFT color LCD (480 × 272 dots)
Functions :
Save data to the CF Card or USB memory stick in real time, Numerical Calculations, etc.
Power supply :
AC Adapter Z1005: 100 to 240 VAC (50/60 Hz), 30 VA Max. (including AC adapter), 10 VA Max. (main unit only) Battery Pack 9780: Continuous use 2.5 hours (@25°C/77°F), 3 VA Max.
Dimensions :
176 mm (6.93 in) W × 101 mm (3.98 in) H × 41 mm (1.61 in) D
Weight:
550 g (19.4 oz) (Battery Pack 9780 not installed)
Operating Temperature:
0°C to 40°C (32°F to 104°F)
Storage Temperature:
-10°C to 50°C (14°F to 122°F)
Standard compliance:
Safety: EN61010, EMC: EN61326, EN61000
Continuous operating time:
g time Approx. 2.5 hours (with Battery Pack Model 9780 while saving to the CF card) Charging time: Approx. 200 minutes (@5°C to 30°C/41°F to 86°F ambient)
Hioki LR8432
The Hioki LR8432 is a compact and lightweight 10-channel heat flow logger designed for evaluating insulation performance and analyzing the causes of temperature changes. By measuring heat flows and temperatures simultaneously, the LR8432 provides valuable insights into thermal energy movements and quantities, enabling users to identify the root causes of temperature fluctuations.
Key Features
- 10 isolated analog input channels for measuring heat flow, temperature (thermocouples), voltage, and pulse
- 10 ms sampling and recording across all channels
- Record raw waveforms and post-calculation waveforms simultaneously, including heat transmission coefficient processing
- Display heat flow and temperature gauges side-by-side for easy comparison
- Specialized functions for heat flow measurement:
- Easy scaling settings: directly enter the sensitivity of the heat flow sensor
- Calculations: waveform processing function for analyzing temperature and heat flow (simple average, moving average, integration, heat transmission coefficient), integration with numerical calculations
- Record measurement data on a USB flash drive or reliable Compact Flash cards for easy transfer to a computer
Principal Applications
- Automotive market: Evaluate the flow of heat into the vehicle interior from the engine compartment, assess heat damage to vehicle parts, identify sources of heat
- Residential construction market: Evaluate the insulation performance of building materials, assess the performance of radiant heating systems
- Identify whether automotive parts are releasing or absorbing heat to implement optimal thermal countermeasures
- Compare the performance of insulating materials in an effective manner
By visualizing heat flows and quantities of heat, the Hioki LR8432 Heat Flow Logger is a valuable tool for professionals in various industries, including automotive, construction, and product development, who need to understand and optimize thermal performance.
Hioki LR8432 Specifications
| Specialized functions for heat flow measurement | - Easy scaling settings: directly enter the sensitivity of the heat flow sensor | |||||
| - Calculations: waveform processing function for the analysis of temperature and heat flow (Simple average, moving average, integration, heat transmission coefficient), Integration with numerical calculations | ||||||
| Analog inputs | [No. of channels] 10 isolated analog channels using scanning input method (M3 mm dia. screw terminal block) | |||||
| [Voltage measurement range] ±10 mV to ±60 V, 1-5V, Max. resolution 500 nV | ||||||
| [Temperature : thermocouples] −200 ˚C to 1800 ˚C (depending on sensor), thermocouples (K, J, E, T, N, R, S, B), Max. resolution 0.1 ˚C | ||||||
| [Humidity] not available | ||||||
| [Max. allowable input] 60 V DC | ||||||
| [Max. rated voltage between input channels] [Max. rated voltage to earth] | ||||||
| 30 AC Vrms, 60 V DC (max. voltage between input channel terminals, and from terminals to chassis ground without damage) | ||||||
| Pulse inputs | [No. of channels] 4 pulse input channels (requires CONNECTION CABLE 9641, | |||||
| all pulse inputs share common ground with the main unit) | ||||||
| [Totalized pulses] 0 to 1000M (count) (No-voltage ‘a’ contact, open collector or voltage input), Max. resolution 1 pulse | ||||||
| [Rotation count] 0 to 5000/n (r/s), Resolution 1/n (r/s) * n = pulses per rotation (1 to 1,000) | ||||||
| [Max. allowable input] 0 to 10 V DC | ||||||
| [Max. rated voltage between input channels] [Max. rated voltage to earth] Non-isolated | ||||||
| Recording intervals | 10 ms to 1 hour, 19 selections (All input channels are scanned at high speed during every recording interval) | |||||
| Selectable filters | 50 Hz, 60 Hz, or OFF (digital filtering of high frequencies on analog channels) | |||||
| Memory capacity | Internal storage: 3.5 M-words, External storage: CF card or USB memory stick (only the HIOKI CF cards are guaranteed for correct operation) | |||||
| External interface | USB 2.0 mini-B receptacle ×1; Functions: Control from a PC, Transfers files from the installed CF card to a PC (cannot transfer files from the connected USB memory stick to a PC via USB communication), Data copy between CF card and USB memory stick | |||||
| Display | 4.3-inch WQVGA-TFT color LCD (480 × 272 dots) | |||||
| Functions | Save data to the CF Card or USB memory stick in real time, Numerical Calculations, etc. | |||||
| Power supply | AC Adapter Z1005: 100 to 240 VAC (50/60 Hz), 30 VA Max. (including AC adapter), 10 VA Max. (main unit only) | |||||
| Battery Pack 9780: Continuous use 2.5 hours (@25°C/77°F), 3 VA Max. | ||||||
| External power source: 10 to 16 V, 10 VA Max. (please contact HIOKI distributor for cable; less than 3 m/9.84 ft cable length) | ||||||
| Dimensions and mass | 176 mm (6.93 in) W × 101 mm (3.98 in) H × 41 mm (1.61 in) D, 550 g (19.4 oz) (Battery Pack 9780 not installed) | |||||
| Included accessories | Measurement Guide ×1, CD-R (Instruction manual PDF, Logger Utility Instruction Manual PDF, Data acquisition application program Logger Utility) ×1, USB cable ×1, AC Adapter Z1005 ×1 | |||||
